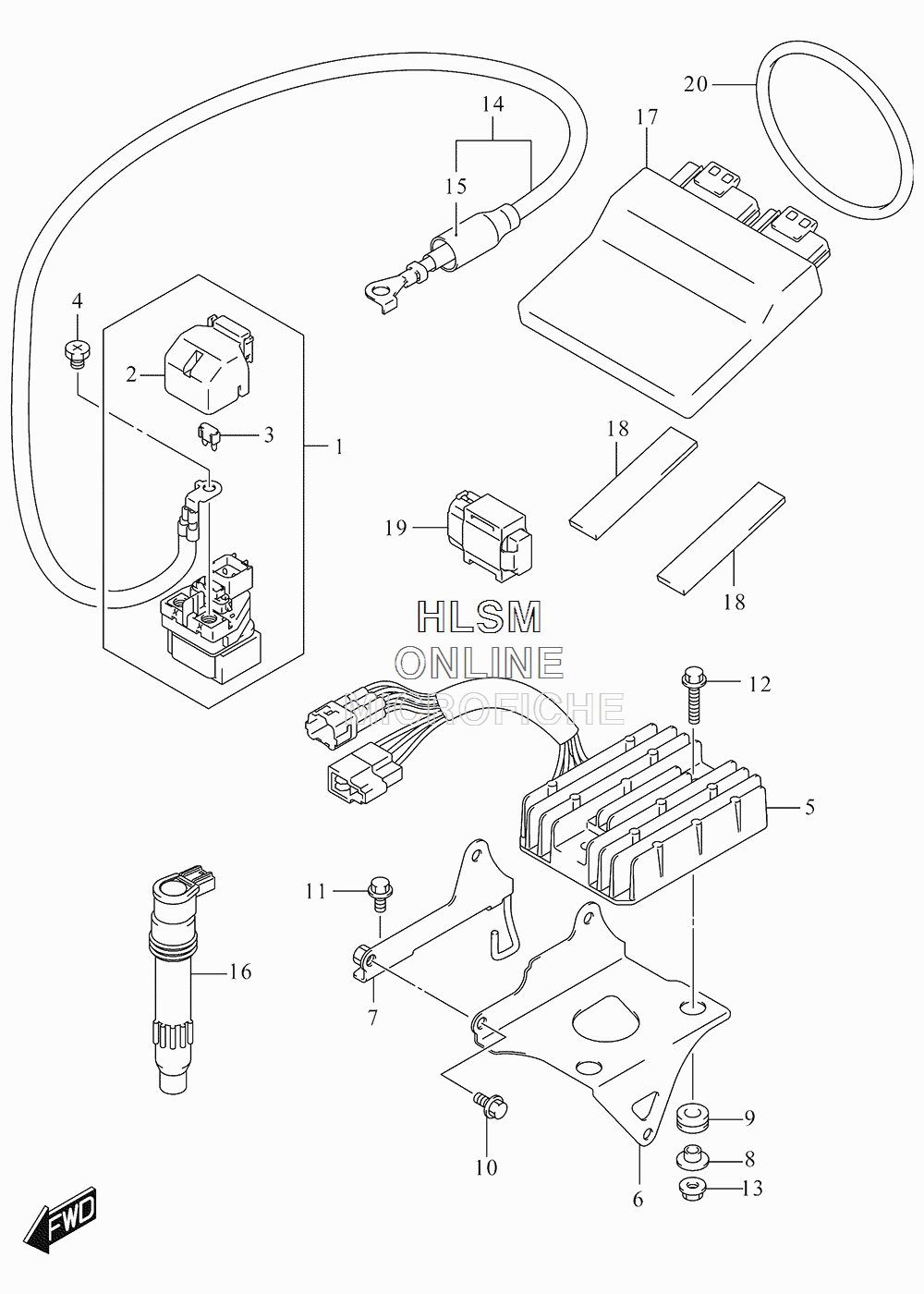

ELECTRICAL для Suzuki GSX-650FA L5 - 2015 года выпуска
-
№АртикулНазвание
-
131800-38G10 RELAY ASSY, STARTING MOTORRELAY ASSY, STARTING MOTOR
-
231861-38G00 COVERCOVER
-
309481-30501 FUSE (30A)FUSE (30A)
-
409128-06013 SCREW (6X8)SCREW (6X8)
-
532800-47H00 RECTIFIER ASSYRECTIFIER ASSY
-
632830-18H10 BRACKET, RECT NO.1BRACKET, RECT NO.1
-
732830-18H20 BRACKET, RECT NO.2BRACKET, RECT NO.2
-
809180-06325 SPACER (6.2X8.4X6.9)SPACER (6.2X8.4X6.9)
-
909320-08066 CUSHIONCUSHION
-
1001547-0612A BOLTBOLT
-
1101547-0612A BOLTBOLT
-
1209116-06182 BOLT (6X20)BOLT (6X20)
-
1308316-1006B NUTNUT
-
1433810-17H00 WIRE, STARTER MOTOR LEADWIRE, STARTER MOTOR LEAD
-
1533624-18H00 CAP, STARTER MOTORCAP, STARTER MOTOR
-
1633410-47H00 COIL ASSY, IGNITIONCOIL ASSY, IGNITION
-
1732920-17HC0 CONTROL UNIT, FICONTROL UNIT, FI
-
1833652-38A10 CUSHION, FI CONTROL UNITCUSHION, FI CONTROL UNIT
-
1933960-06G10 SENSOR ASSY, FUEL CUTSENSOR ASSY, FUEL CUT
-
2009280-70004 O RING (D:3.53,ID:69.44)O RING (D:3.53,ID:69.44)
