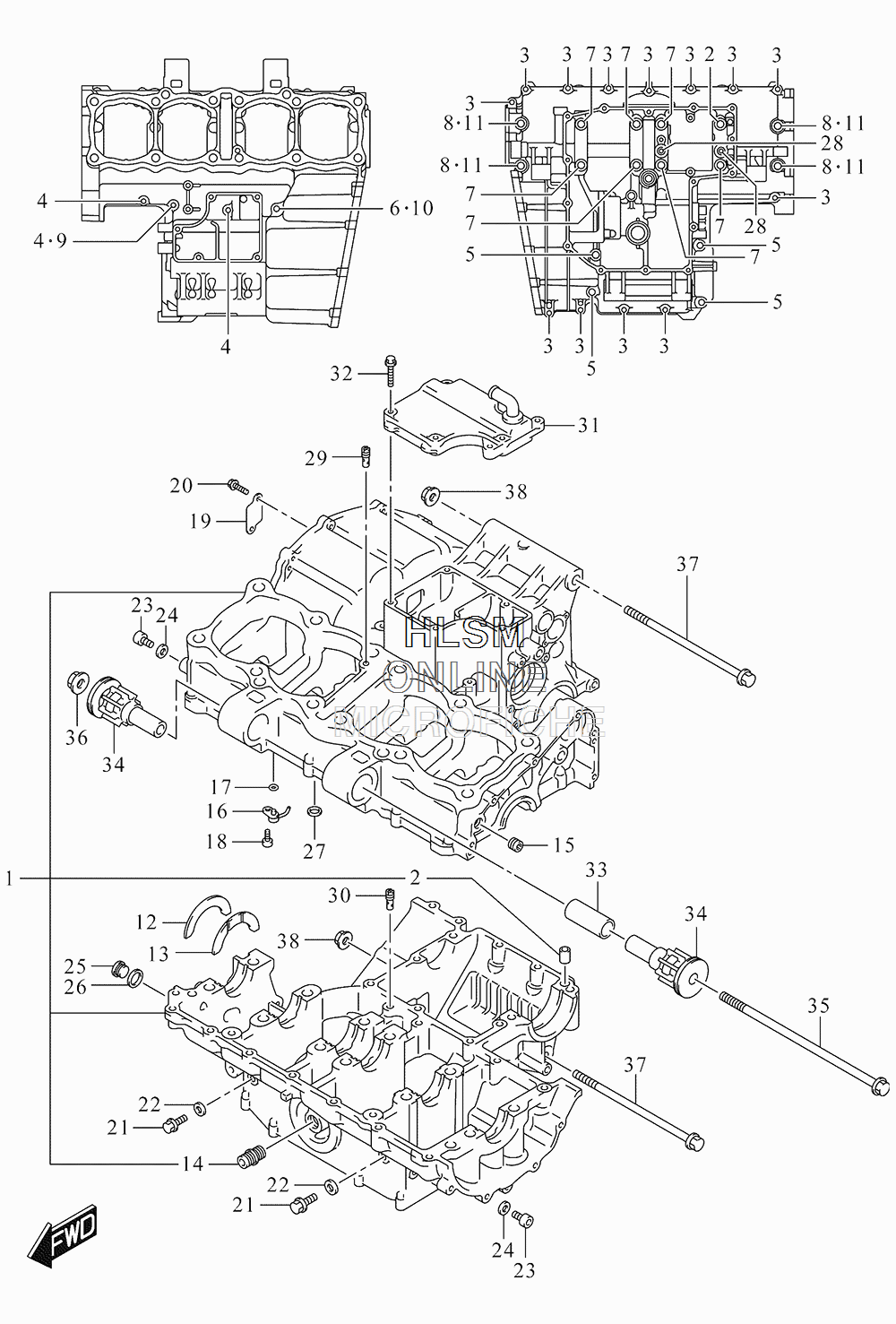

CRANKCASE для Suzuki GSX-650FA L5 - 2015 года выпуска`
-
№АртикулНазвание
-
111300-17810 CRANKCASE SETCRANKCASE SET
-
211319-33E50 PINPIN
-
301547-0640A BOLTBOLT
-
401547-0655A BOLTBOLT
-
501550-0870A BOLTBOLT
-
601550-0890A BOLTBOLT
-
709103-09005 BOLT (9X135)BOLT (9X135)
-
809103-09008 BOLT (9X95)BOLT (9X95)
-
909168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
1009168-08016 GASKET (8.2X14X1)GASKET (8.2X14X1)
-
1109168-10031 GASKET (10.2X20X2.3)GASKET (10.2X20X2.3)
-
1212228-17E00-0D0 BEARING, THRUST RIGHT HAND (GREEN)BEARING, THRUST RIGHT HAND (GREEN)
-
1312228-17E00-0A0 BEARING, THRUST LEFT HAND (RED)BEARING, THRUST LEFT HAND (RED)
-
1312228-17E00-0B0 BEARING, THRUST LEFT HAND (BLACK)BEARING, THRUST LEFT HAND (BLACK)
-
1312228-17E00-0C0 BEARING, THRUST LEFT HAND (BLUE)BEARING, THRUST LEFT HAND (BLUE)
-
1312228-17E00-0D0 BEARING, THRUST LEFT HAND (GREEN)BEARING, THRUST LEFT HAND (GREEN)
-
1312228-17E00-0E0 BEARING, THRUST LEFT HAND (YELLOW)BEARING, THRUST LEFT HAND (YELLOW)
-
1312228-17E00-0F0 BEARING, THRUST LEFT HAND (WHITE)BEARING, THRUST LEFT HAND (WHITE)
-
1416591-06B01 UNION, OIL FILTER STANDUNION, OIL FILTER STAND
-
1511329-02F00 JET, OIL GALLERYJET, OIL GALLERY
-
1611390-18H00 JET, PISTON COOLINGJET, PISTON COOLING
-
1709280-04004 O RING (D:1.2,ID:4)O RING (D:1.2,ID:4)
-
1809106-06075 BOLT (6X12)BOLT (6X12)
-
1911317-18H00 PLATE, OIL SEPARATORPLATE, OIL SEPARATOR
-
2001547-0612A BOLTBOLT
-
2101550-0612A BOLTBOLT
-
2209168-06018 GASKET (6.2X13X1.2)GASKET (6.2X13X1.2)
-
2307130-0812A PLUGPLUG
-
2409168-08016 GASKET (8.2X14X1)GASKET (8.2X14X1)
-
2509248-16012 PLUG (16X8)PLUG (16X8)
-
2609168-16002 GASKET (16X22X2)GASKET (16X22X2)
-
2709280-08012 O RING (D:1.9,ID:7.8)O RING (D:1.9,ID:7.8)
-
2809280-12009 O RING (D:1.9,ID:12.6)O RING (D:1.9,ID:12.6)
-
2909493-28012 JET, 140JET, 140
-
3009493-36006 JET, AIR (180)JET, AIR (180)
-
3111330-18H10 COVER, BREATHERCOVER, BREATHER
-
3209103-06213 BOLT (6X30)BOLT (6X30)
-
3311611-48G00 SPACER, ENG MTGSPACER, ENG MTG
-
3411652-10G30 BUSHBUSH
-
3509103-10041-A05 BOLT (10X215)BOLT (10X215)
-
3608319-3110A NUTNUT
-
3709103-12031 BOLT (12X155)BOLT (12X155)
-
3808319-3112A NUTNUT
