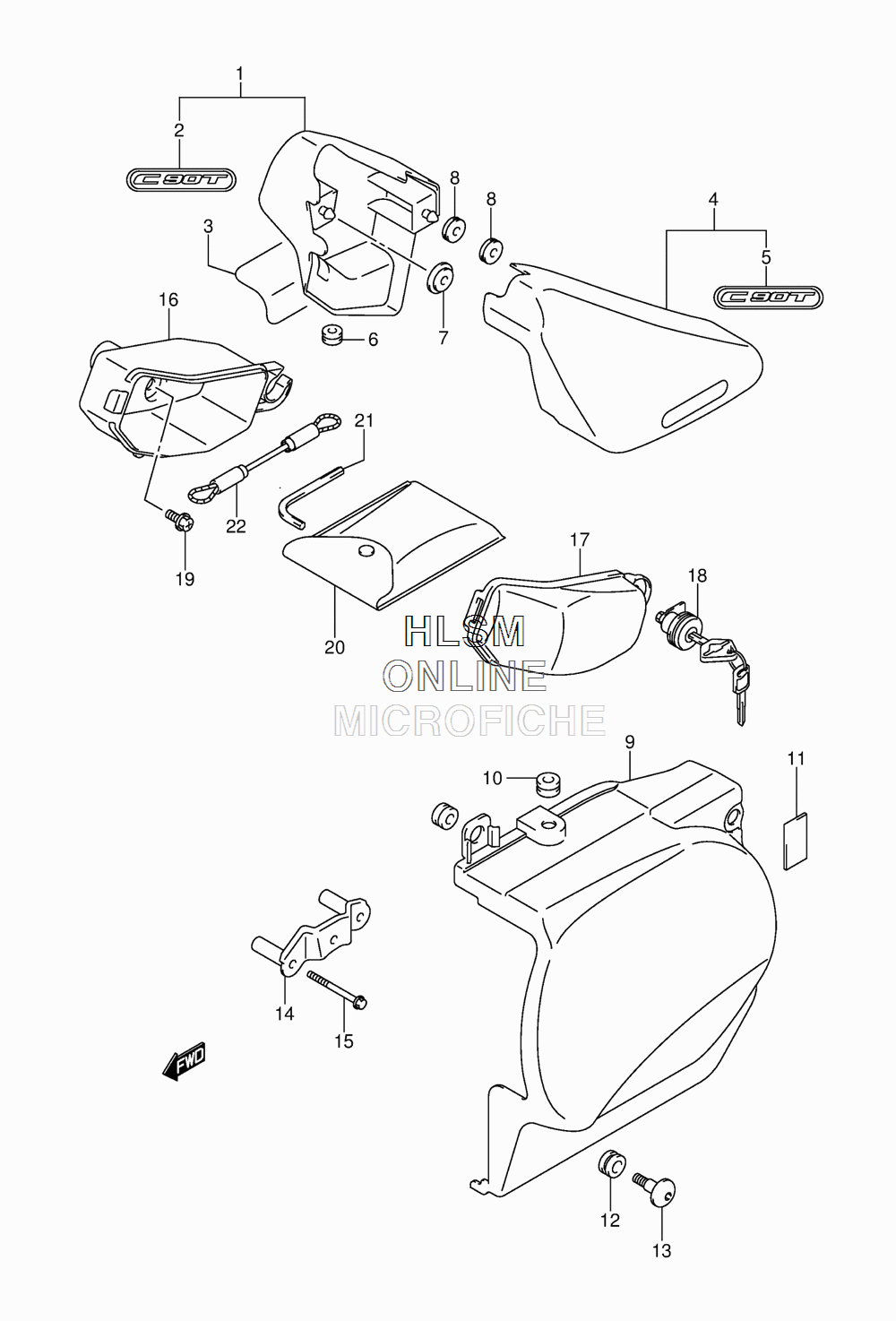

SIDE COVER для Suzuki VL1500BT L3 C90T - 2013 года выпуска`
-
№АртикулНазвание
-
147110-06J20-YVB COVER, SIDE RIGHT HAND (YVB - BLACK)COVER, SIDE RIGHT HAND (YVB - BLACK)
-
268131-10FB0 ...EMBLEM, ''C90T''...EMBLEM, ''C90T''
-
347166-06J00 SHIELD, SIDE COVER RIGHT HANDSHIELD, SIDE COVER RIGHT HAND
-
447210-06J20-YVB COVER, SIDE LEFT HAND (YVB - BLACK)COVER, SIDE LEFT HAND (YVB - BLACK)
-
568131-10FB0 ...EMBLEM, ''C90T''...EMBLEM, ''C90T''
-
647167-06J00 CUSHION, SIDE COVER LOWER RIGHTCUSHION, SIDE COVER LOWER RIGHT
-
747191-06J00 CUSHION, SIDE COVER FRONTCUSHION, SIDE COVER FRONT
-
809320-08018 CUSHIONCUSHION
-
947231-40H10 COVER, LOWER LEFT HANDCOVER, LOWER LEFT HAND
-
1009320-06504 CUSHIONCUSHION
-
1151827-01A00 CUSHIONCUSHION
-
1209320-09016 CUSHIONCUSHION
-
1309139-06190 BOLT (6X20)BOLT (6X20)
-
1447250-06J00 BRACKET, LOWER COVER LEFT HANDBRACKET, LOWER COVER LEFT HAND
-
1501547-0650A BOLTBOLT
-
1692211-06J00 BODY, LUGGAGE BOXBODY, LUGGAGE BOX
-
1792212-06J00 LIDLID
-
1895700-07860 LOCK SET, LUGGAGE BOXLOCK SET, LUGGAGE BOX
-
1909111-06107 BOLT (6X12)BOLT (6X12)
-
2009800-21056 TOOL ASSYTOOL ASSY
-
2109816-00050 SPANNER, 6 HEXAGONSPANNER, 6 HEXAGON
-
2295740-06G00 CABLE, HELMET LOCKCABLE, HELMET LOCK
