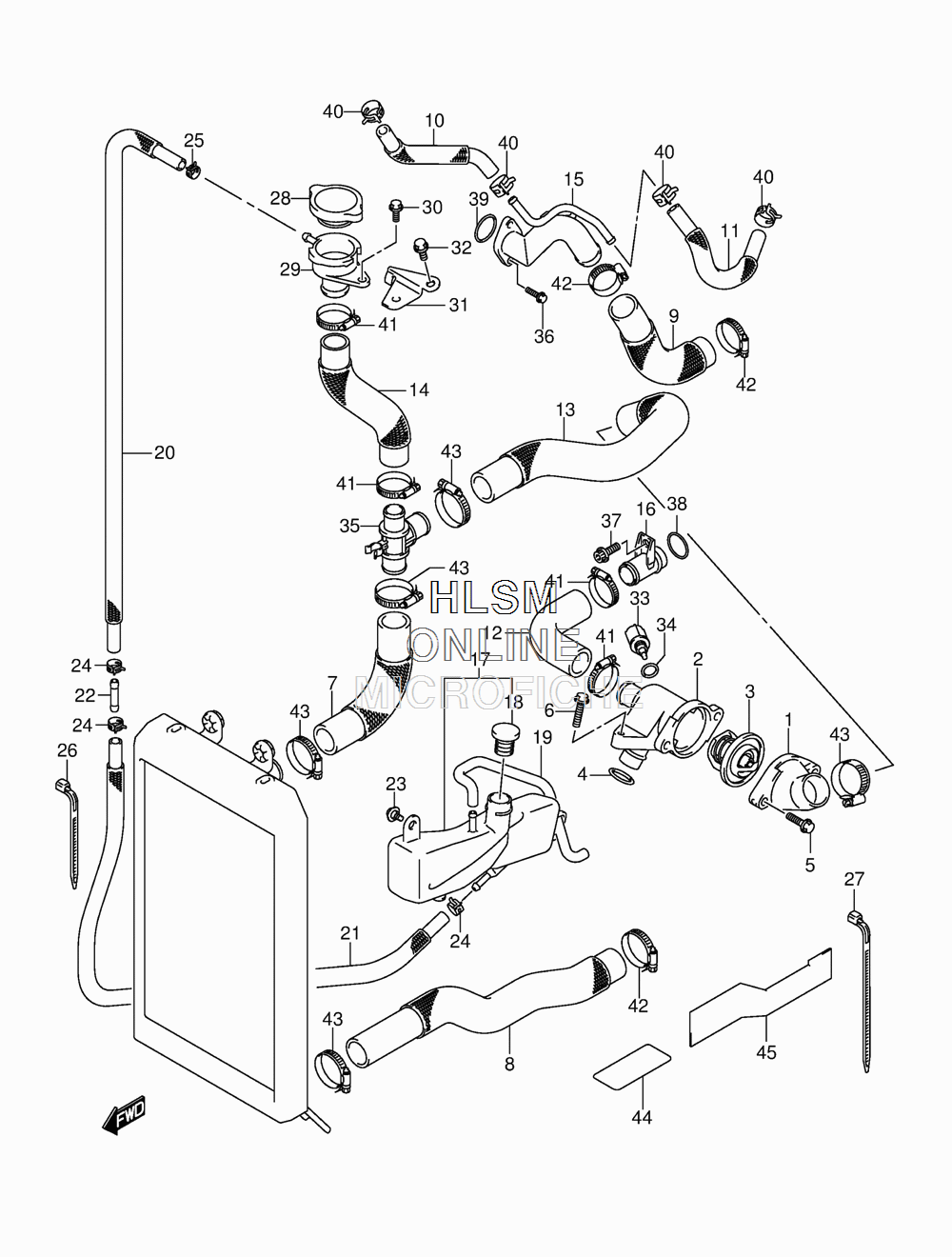

RADIATOR HOSE W/ RESERVOIR для Suzuki VL1500BT L3 C90T - 2013 года выпуска`
-
№АртикулНазвание
-
117661-48G10 COVER, THERMOSTATCOVER, THERMOSTAT
-
217662-40H00 CONNECTOR, THERMOSTAT INLETCONNECTOR, THERMOSTAT INLET
-
317670-06G50 THERMOSTAT, WATERTHERMOSTAT, WATER
-
409280-18008 O RING (D:3.2,ID:17.8)O RING (D:3.2,ID:17.8)
-
501550-0620A BOLTBOLT
-
601547-0625A BOLTBOLT
-
717851-40H10 HOSE, RADIATOR INLETHOSE, RADIATOR INLET
-
817852-40H10 HOSE, RADIATOR OUTLETHOSE, RADIATOR OUTLET
-
917853-40H00 HOSE, CYLINDER INLETHOSE, CYLINDER INLET
-
1017854-40H00 HOSE, WATER BYPASS UPPERHOSE, WATER BYPASS UPPER
-
1117855-40H00 HOSE, WATER BYPASS LOWERHOSE, WATER BYPASS LOWER
-
1217856-40H00 HOSE, REAR CYLINDER HEAD OUTLETHOSE, REAR CYLINDER HEAD OUTLET
-
1317857-40H10 HOSE, THERMOSTAT OUTLETHOSE, THERMOSTAT OUTLET
-
1417858-40H00 HOSE, CONDUCTIONHOSE, CONDUCTION
-
1517860-40H00 PIPE, CYLINDER WATER INLETPIPE, CYLINDER WATER INLET
-
1617890-06G20 UNIONUNION
-
1717910-40H00 TANK ASSY, RESERVOIRTANK ASSY, RESERVOIR
-
1817931-02FA0 ...CAP...CAP
-
1917982-40H00 HOSE, TANK OVERFLOWHOSE, TANK OVERFLOW
-
2017981-40H00 HOSE, TANK INLET NO.1HOSE, TANK INLET NO.1
-
2109352-50901-600 HOSEHOSE
-
2209364-06005 UNIONUNION
-
2309111-06085 BOLT (6X12)BOLT (6X12)
-
2409401-08411 CLIPCLIP
-
2509401-10411 CLIPCLIP
-
2609407-14403 CLAMP (L:125)CLAMP (L:125)
-
2709407-19401 CLAMP (L:190)CLAMP (L:190)
-
2817730-14G00 CAP, RADIATOR (1.1)CAP, RADIATOR (1.1)
-
2917791-14G00 CONDUCTION, RADIATORCONDUCTION, RADIATOR
-
3001547-0512A BOLTBOLT
-
3117792-40H00 BRACKET, CONDUCTIONBRACKET, CONDUCTION
-
3201547-0612A BOLTBOLT
-
3313650-49X00 SENSOR, WATER TEMPSENSOR, WATER TEMP
-
3409168-12017 GASKET (12X17X1)GASKET (12X17X1)
