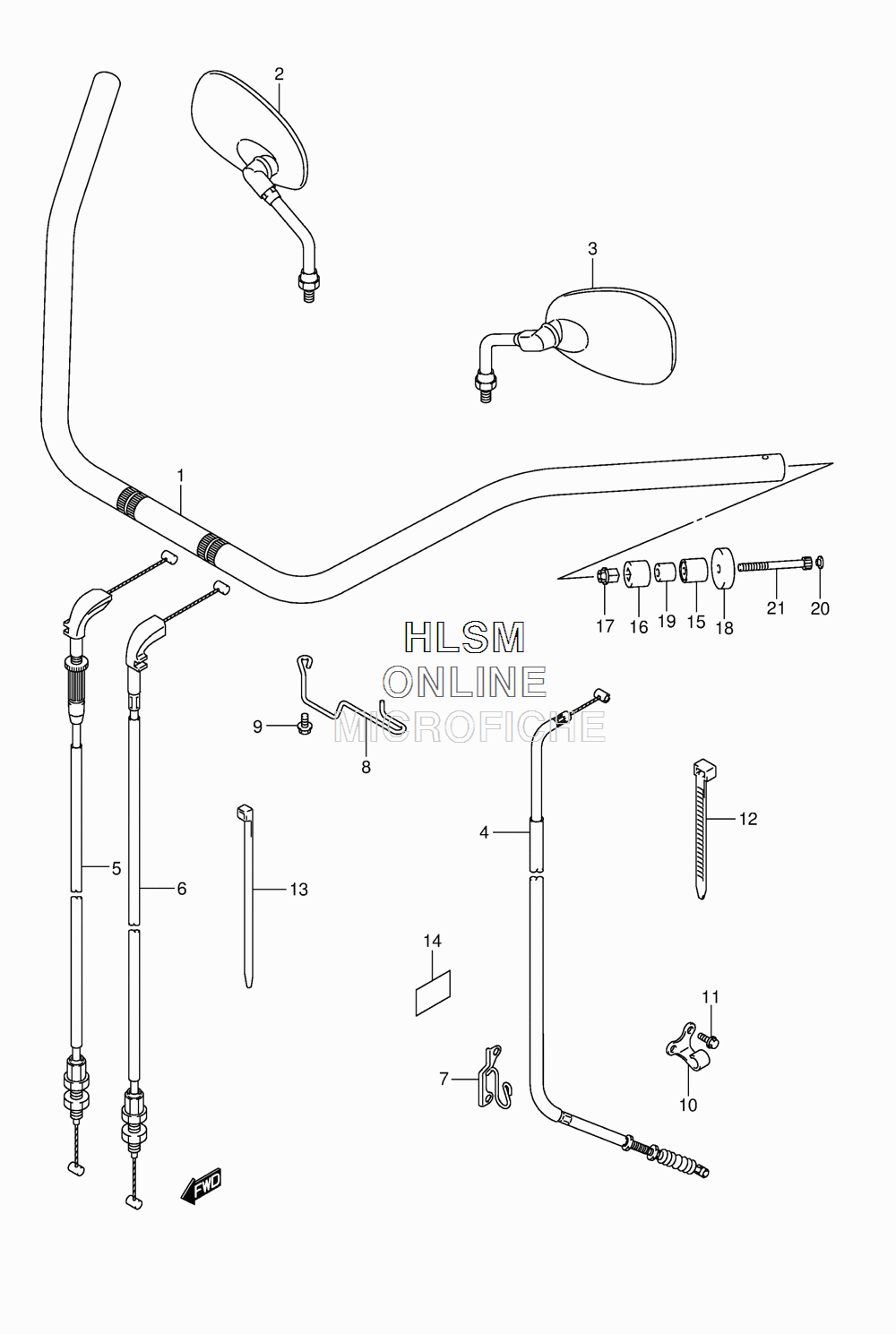

HANDLEBAR для Suzuki VL1500BT L3 C90T - 2013 года выпуска
-
№АртикулНазвание
-
156111-06J10 HANDLEBARHANDLEBAR
-
256500-41F90 MIRROR ASSY, REAR VIEW RIGHT HANDMIRROR ASSY, REAR VIEW RIGHT HAND
-
356600-41F90 MIRROR ASSY, REAR VIEW LEFT HANDMIRROR ASSY, REAR VIEW LEFT HAND
-
458200-06J00 CABLE ASSY, CLUTCHCABLE ASSY, CLUTCH
-
558300-06J00 CABLE ASSY, THROTTLE NO.1CABLE ASSY, THROTTLE NO.1
-
658300-06J10 CABLE ASSY, THROTTLE NO.2CABLE ASSY, THROTTLE NO.2
-
758620-06J10 GUIDE, CLUTCH CABLEGUIDE, CLUTCH CABLE
-
858621-06J00 GUIDE, CABLEGUIDE, CABLE
-
901550-0612A BOLTBOLT
-
1058634-40H00 STOPPER, CLUTCH CABLESTOPPER, CLUTCH CABLE
-
1101547-0612A BOLTBOLT
-
1209407-19401 CLAMP (L:190)CLAMP (L:190)
-
1309407-14407 CLAMP (L:145)CLAMP (L:145)
-
1494474-17H00 PROTECTOR, THROTTLE CABLEPROTECTOR, THROTTLE CABLE
-
1556271-26D20 EXPANDER, BALANCER NO.2EXPANDER, BALANCER NO.2
-
1656272-10G10 EXPANDER, BALANCEREXPANDER, BALANCER
-
1756273-10G10 NUTNUT
-
1856278-22H00 BALANCER, HANDLEBARBALANCER, HANDLEBAR
-
1909180-06161 SPACER (6.5X16X15)SPACER (6.5X16X15)
-
2009250-05008 CAP (OD:10)CAP (OD:10)
-
2107130-0660A BOLTBOLT
