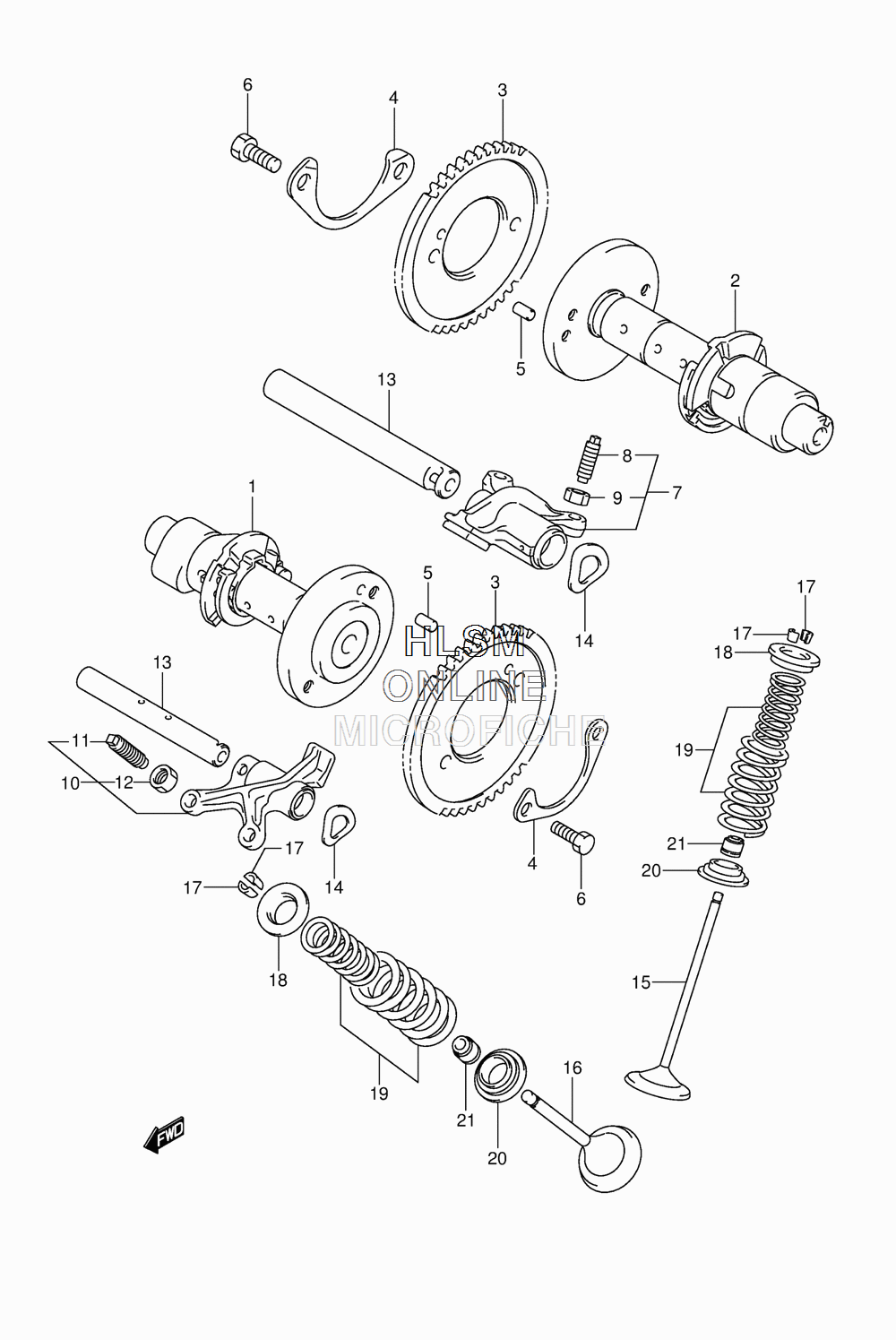

CAMSHAFT W/ VALVES для Suzuki VL1500BT L3 C90T - 2013 года выпуска
-
№АртикулНазвание
-
112710-40H20 CAMSHAFT, FRONTCAMSHAFT, FRONT
-
212730-40H10 CAMSHAFT, REARCAMSHAFT, REAR
-
312741-41F00 SPROCKET, CAMSHAFT (NT:46)SPROCKET, CAMSHAFT (NT:46)
-
412747-44001 WASHERWASHER
-
504221-05109 PINPIN
-
609100-06169 BOLT (6X12.5)BOLT (6X12.5)
-
712840-40H00 ARM, VALVE ROCKER INTAKEARM, VALVE ROCKER INTAKE
-
812842-38A00 ...SCREW...SCREW
-
912843-32400 ...NUT...NUT
-
1012850-40H00 ...ARM, VALVE ROCKER EXHAUST...ARM, VALVE ROCKER EXHAUST
-
1112842-38A00 ......SCREW......SCREW
-
1212843-32400 ......NUT......NUT
-
1312861-40H00 SHAFT, VALVE ROCKER ARMSHAFT, VALVE ROCKER ARM
-
1409164-12018 WASHERWASHER
-
1512911-40H00 VALVE, INTAKEVALVE, INTAKE
-
1612912-40H00 VALVE, EXHAUSTVALVE, EXHAUST
-
1712932-24400 COTTER, VALVECOTTER, VALVE
-
1812931-33201 RETAINER, SPRINGRETAINER, SPRING
-
1912920-32E00 SPRING SET, VALVESPRING SET, VALVE
-
2012933-81400 SEAT, SPRINGSEAT, SPRING
-
2109289-05015 OIL SEAL (5.5X11X8.2)OIL SEAL (5.5X11X8.2)
