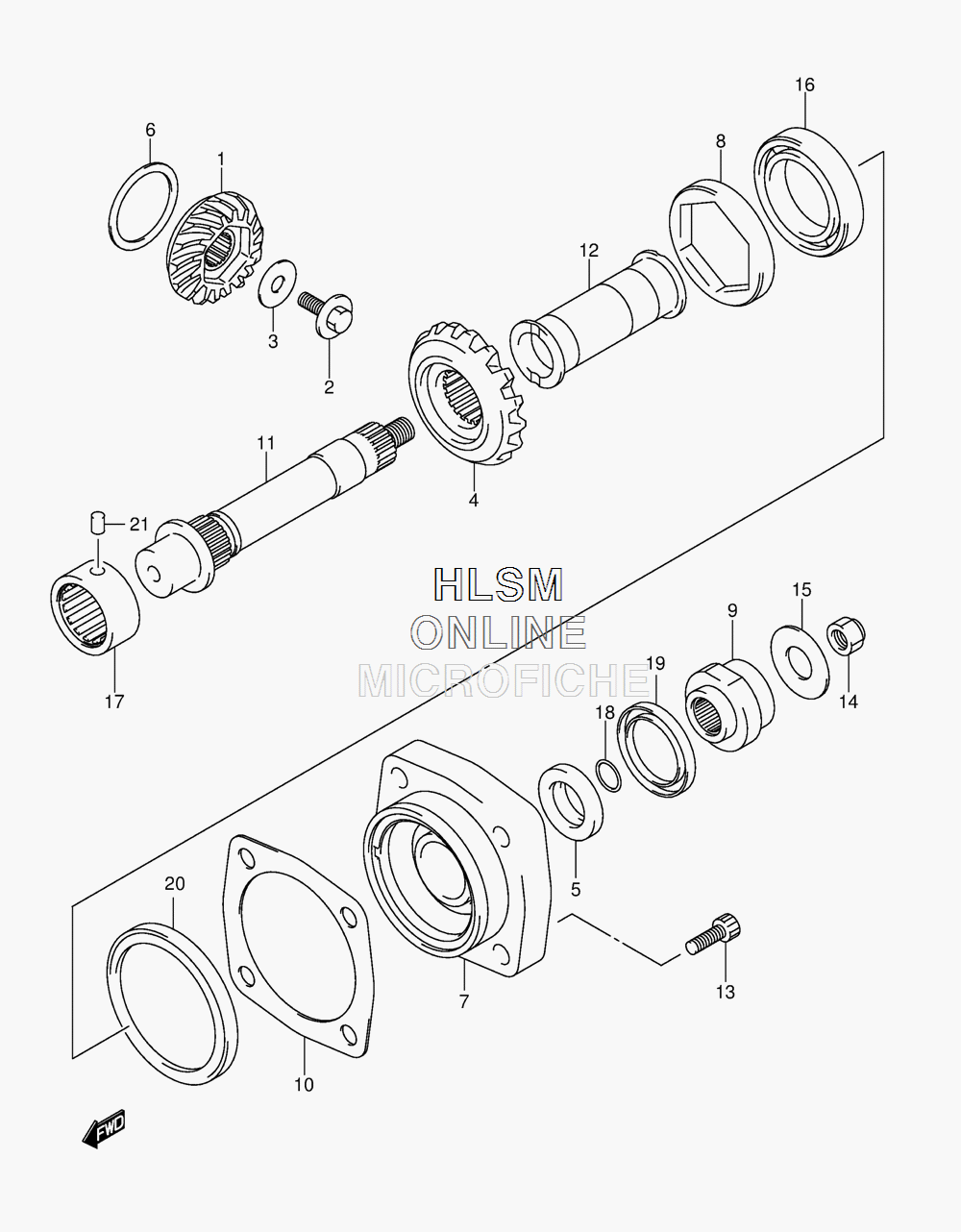

SECONDARY DRIVE GEAR для Suzuki VL1500BT L3 C90T - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    24911-40H00 GEAR, SECONDARY DRIVE (NT:17)
    GEAR, SECONDARY DRIVE (NT:17)
  • 2
    09103-12114 BOLT (12X24)
    BOLT (12X24)
  • 3
    08211-12341 WASHER
    WASHER
  • 4
    24921-40H00 GEAR, SECONDARY DRIVEN (NT:20)
    GEAR, SECONDARY DRIVEN (NT:20)
  • 5
    21102-31G00 SPACER, SECONDARY SHAFT
    SPACER, SECONDARY SHAFT
  • 6
    24935-40810 SHIM SET, SECONDARY DRIVE
    SHIM SET, SECONDARY DRIVE
  • 7
    24941-40H00 HOUSING, SEC DRIVEN BEARING
    HOUSING, SEC DRIVEN BEARING
  • 8
    24942-26D00 STOPPER, SEC DRIVEN BEARING
    STOPPER, SEC DRIVEN BEARING
  • 9
    24943-40H00 COUPLING, SEC DRIVEN BEVEL
    COUPLING, SEC DRIVEN BEVEL
  • 10
    24945-40810 SHIM SET, SECONDARY DRIVEN
    SHIM SET, SECONDARY DRIVEN
  • 11
    24961-40H00 SHAFT, SECONDARY DRIVEN BEVEL
    SHAFT, SECONDARY DRIVEN BEVEL
  • 12
    24962-40H00 SPACER, SECONDARY DRIVEN BEVEL
    SPACER, SECONDARY DRIVEN BEVEL
  • 13
    09106-10087 BOLT (10X30)
    BOLT (10X30)
  • 14
    09159-16003 NUT
    NUT
  • 15
    09160-16040 WASHER (16.5X36X4)
    WASHER (16.5X36X4)
  • 16
    09262-28014 BEARING (28X68X18) REAR
    BEARING (28X68X18) REAR
  • 17
    09263-32021 BEARING (32X50X22) FRONT
    BEARING (32X50X22) FRONT
  • 18
    09280-25004 O RING (D:2.4,ID:24.7)
    O RING (D:2.4,ID:24.7)
  • 19
    09283-38011 OIL SEAL (38X54X6)
    OIL SEAL (38X54X6)
  • 20
    09286-84001 OIL SEAL (76X84X7)
    OIL SEAL (76X84X7)
  • 21
    09202-07005 PIN (7X12)
    PIN (7X12)
