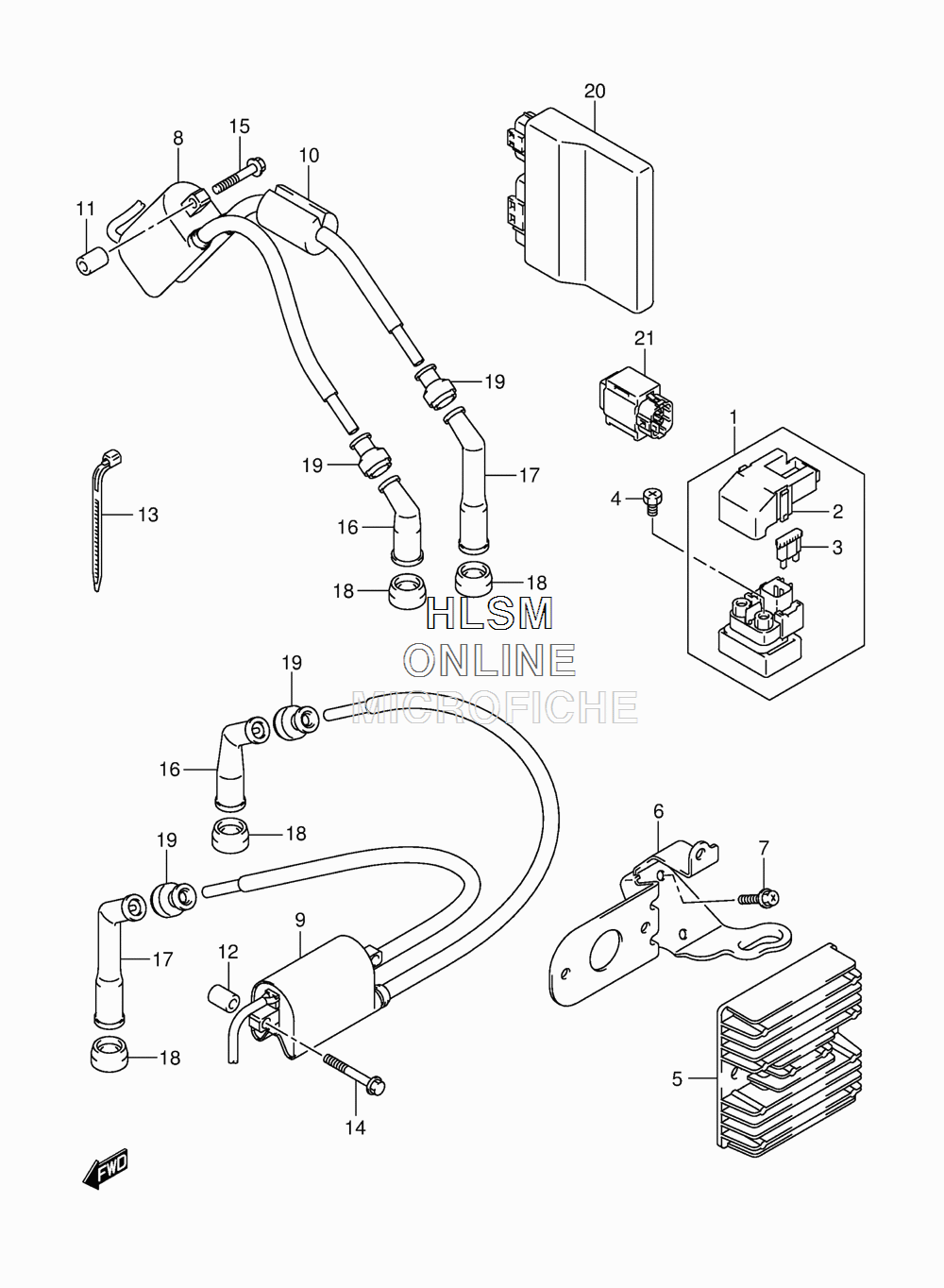

ELECTRICAL (CALIF ONLY) для Suzuki VL1500BT L3 C90T - 2013 года выпуска
-
№АртикулНазвание
-
131800-06G00 RELAY ASSY, STARTING MOTORRELAY ASSY, STARTING MOTOR
-
231861-47E00 ...COVER...COVER
-
309481-30101 ...FUSE (30A)...FUSE (30A)
-
409128-06013 SCREW (6X8)SCREW (6X8)
-
532800-10G30 RECTIFIER ASSYRECTIFIER ASSY
-
632830-40H10 BRACKETBRACKET
-
702162-0616A SCREWSCREW
-
833410-40H00 COIL ASSY, IGNITION REARCOIL ASSY, IGNITION REAR
-
933420-40H10 COIL ASSY, IGNITION FRONTCOIL ASSY, IGNITION FRONT
-
1033442-41F00 CUSHION, HIGH TENSION CORDCUSHION, HIGH TENSION CORD
-
1109180-06178 SPACER (6.4X10X22)SPACER (6.4X10X22)
-
1209180-06198 SPACER (6.2X12X16)SPACER (6.2X12X16)
-
1309407-18402 CLAMP (L:165)CLAMP (L:165)
-
1401547-0635A BOLTBOLT
-
1501547-0640A BOLTBOLT
-
1633510-38B00 CAP ASSY, SPARK PLUG (SIDE)CAP ASSY, SPARK PLUG (SIDE)
-
1733510-45010 CAP ASSY, SPARK PLUG (CENTER)CAP ASSY, SPARK PLUG (CENTER)
-
1833541-47D00 SEAL, SPARK PLUGSEAL, SPARK PLUG
-
1933542-38B00 SEAL, HIGH TENSION CORDSEAL, HIGH TENSION CORD
-
2032920-06J70 CONTROL UNIT, FICONTROL UNIT, FI
-
2133960-06G10 SENSOR ASSY, FUEL CUTSENSOR ASSY, FUEL CUT
