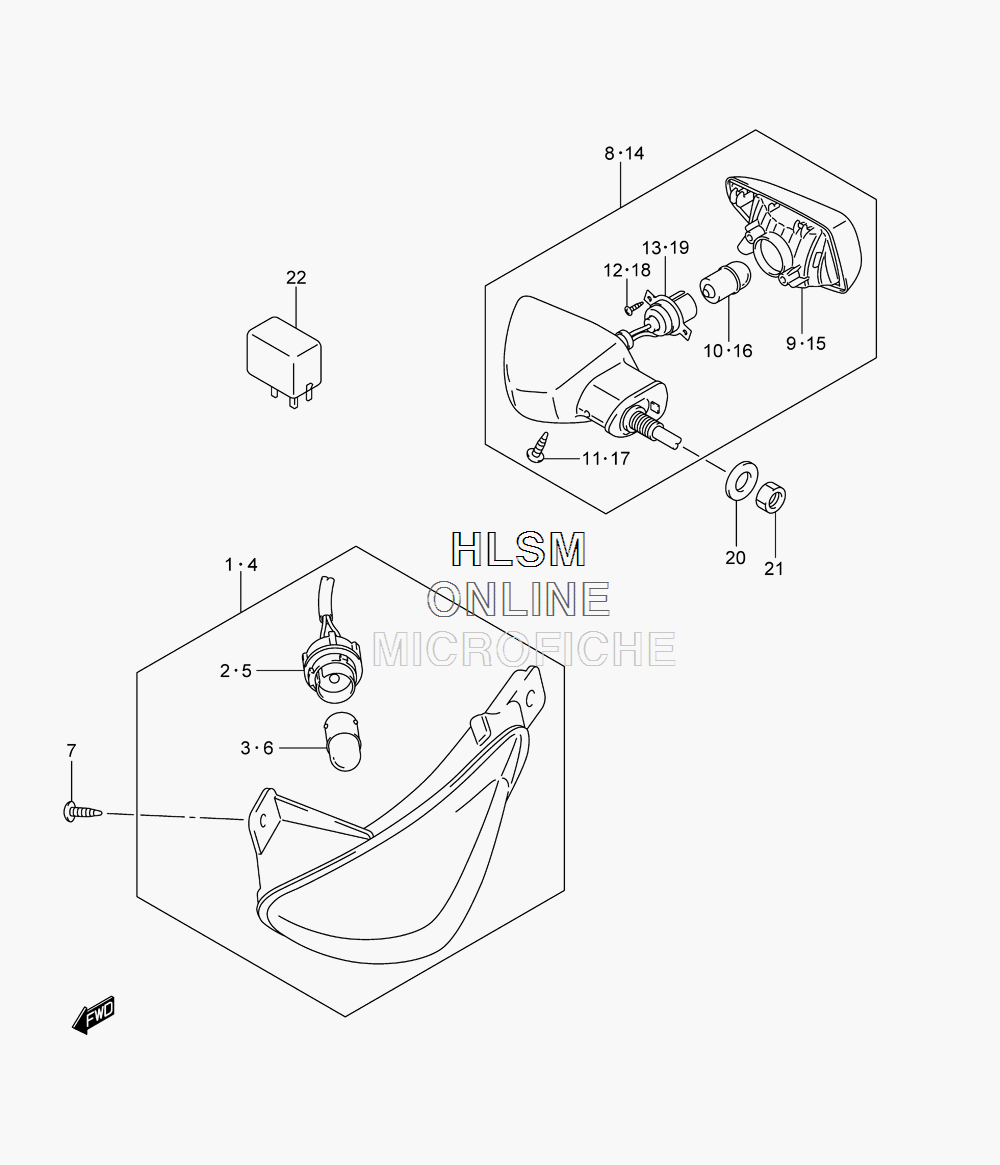

TURN SIGNAL ASSY. для Suzuki GW 250 L3 - 2013 года выпуска
-
№АртикулНазвание
-
135601-48H30 LAMP ASSY, FRONT TURNSIGNAL RIGHTLAMP ASSY, FRONT TURNSIGNAL RIGHT
-
235618-48H00 ...CORD...CORD
-
309471-12226 ...BULB (12V,10W)...BULB (12V,10W)
-
435602-48H30 LAMP ASSY, FRONT TURNSIGNAL LEFTLAMP ASSY, FRONT TURNSIGNAL LEFT
-
535638-48H00 ...CORD...CORD
-
609471-12226 ...BULB (12V,10W)...BULB (12V,10W)
-
703541-0516A SCREWSCREW
-
835603-48H02 LAMP ASSY, REAR TURNSIGNAL RIGHTLAMP ASSY, REAR TURNSIGNAL RIGHT
-
935650-48H01 ...LAMP UNIT RIGHT...LAMP UNIT RIGHT
-
1009471-12226 ...BULB (12V,10W)...BULB (12V,10W)
-
1103241-0412B ...SCREW...SCREW
-
1235623-48H00 ...SCREW...SCREW
-
1335658-48H00 ...CORD RIGHT...CORD RIGHT
-
1435604-48H02 LAMP ASSY, REAR TURNSIGNAL LEFTLAMP ASSY, REAR TURNSIGNAL LEFT
-
1535670-48H01 ...LAMP UNIT LEFT...LAMP UNIT LEFT
-
1609471-12226 ...BULB (12V,10W)...BULB (12V,10W)
-
1703241-0412B ...SCREW...SCREW
-
1835623-48H00 ...SCREW...SCREW
-
1935678-48H00 ...CORD LEFT...CORD LEFT
-
2035679-48H00 WASHER, REAR TURNSIGNAL LAMPWASHER, REAR TURNSIGNAL LAMP
-
2108310-0010A NUTNUT
-
2238610-26H02 RELAY ASSY, TURNSIGNAL LAMPRELAY ASSY, TURNSIGNAL LAMP
