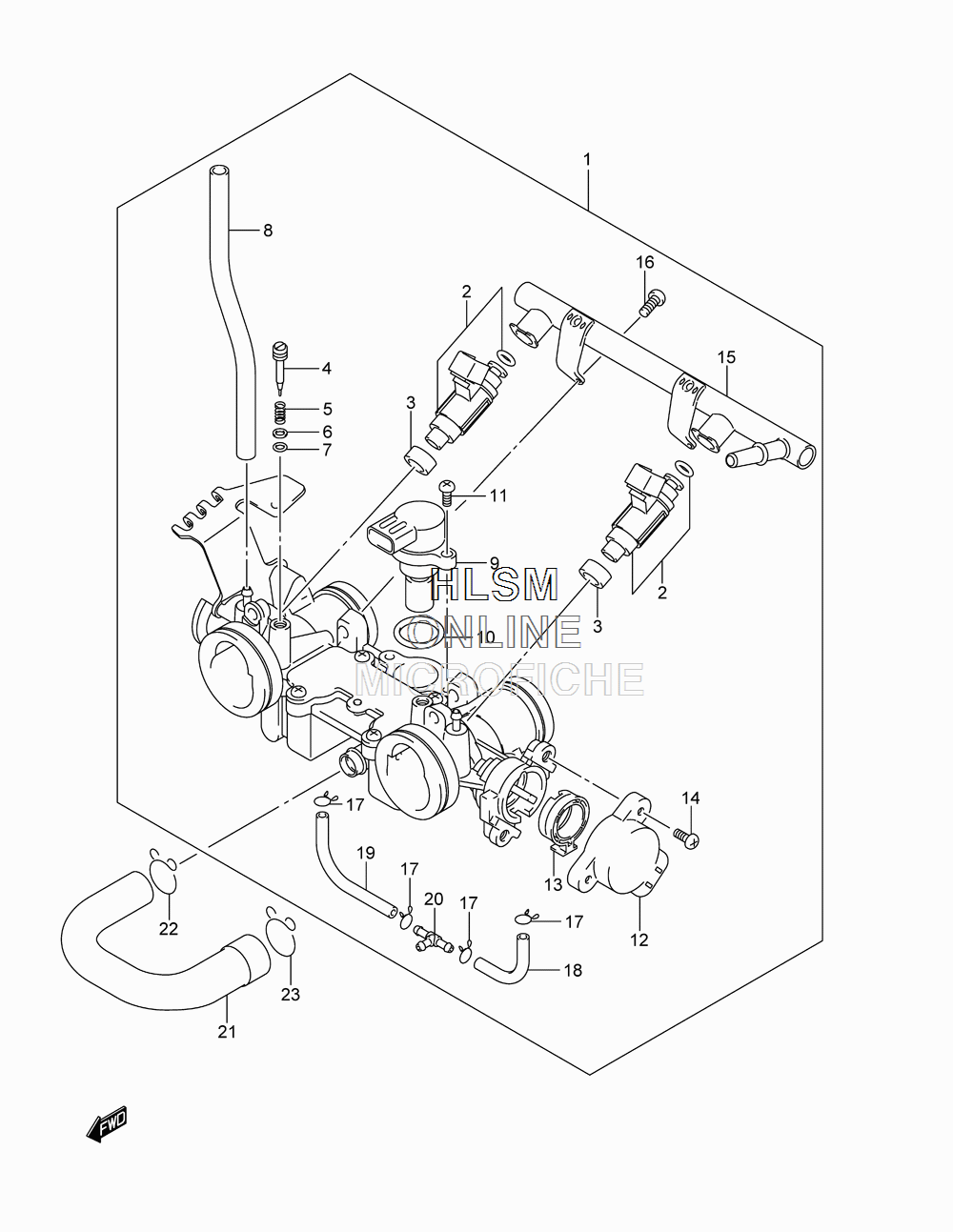

CARBURETOR - THROTTLE BODY для Suzuki GW 250 L3 - 2013 года выпуска
-
№АртикулНазвание
-
113400-48H20 BODY ASSY, THROTTLEBODY ASSY, THROTTLE
-
215710-48H00 ...INJECTOR ASSY...INJECTOR ASSY
-
315722-29G00 ...SEAL...SEAL
-
413279-13G10 ...ADJUSTER...ADJUSTER
-
513268-48700 ...SPRING...SPRING
-
613606-47A00 ...WASHER...WASHER
-
713295-29900 ...O RING...O RING
-
813681-39F00-175 ...HOSE...HOSE
-
918117-14J01 ...MOTOR ASSY...MOTOR ASSY
-
1013679-37H00 ...O RING...O RING
-
1113602-05A40 ...SCREW...SCREW
-
1213580-48H00 ...SENSOR ASSY...SENSOR ASSY
-
1313311-48H00 ...RING...RING
-
1413605-02F00 ...SCREW...SCREW
-
1515730-48H00 ...DELIVERLY PIPE...DELIVERLY PIPE
-
1613602-06148 ...SCREW...SCREW
-
1713671-29G00 ...CLIP...CLIP
-
1813683-48H20 ...HOSE...HOSE
-
1913683-48H30 ...HOSE...HOSE
-
2013685-29G00 ...NIPPLE...NIPPLE
-
2113697-48H00 HOSE, ISC VALVEHOSE, ISC VALVE
-
2209401-15101 CLIPCLIP
-
2309401-18101 CLIPCLIP
