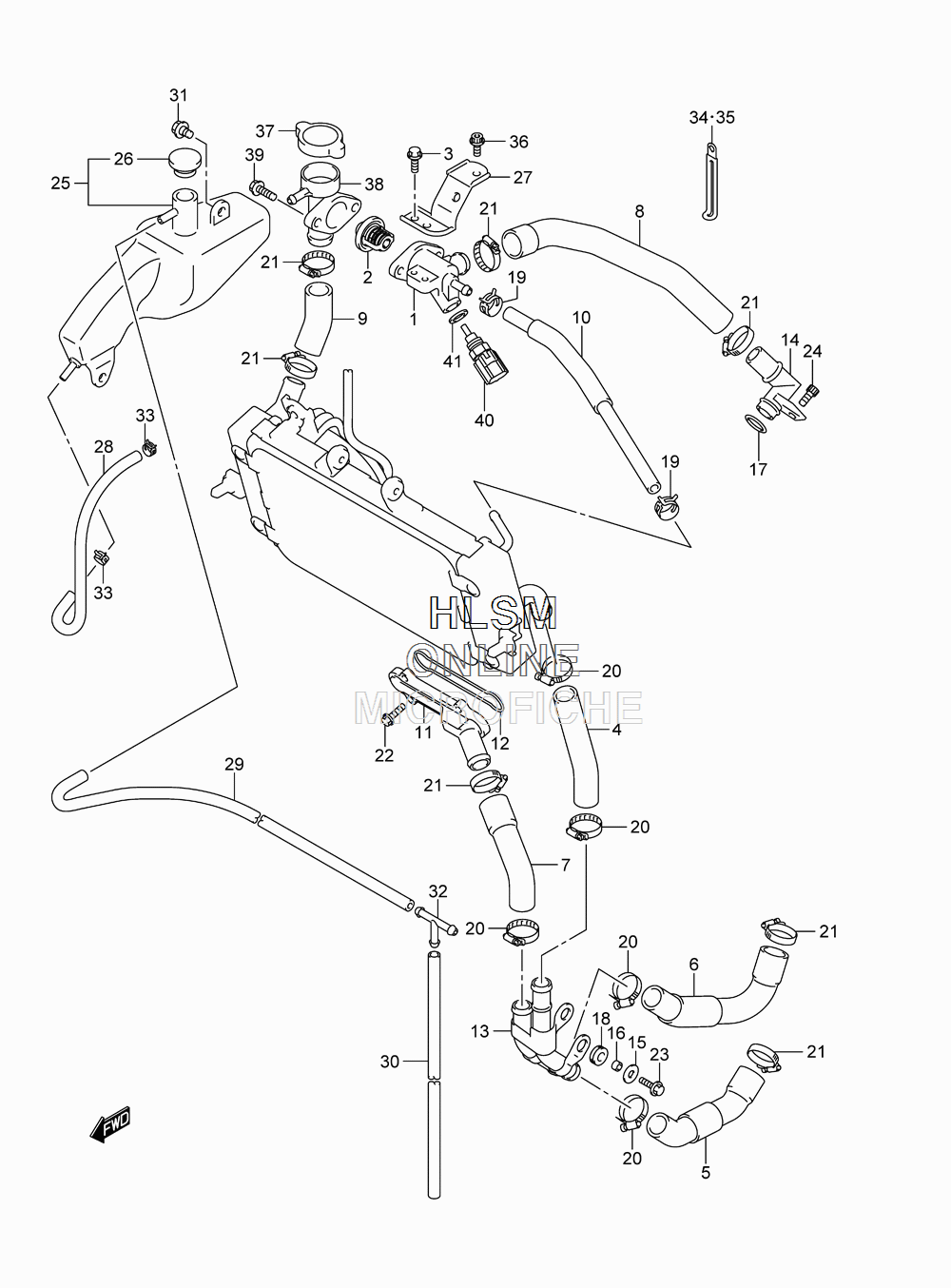

RADIATOR HOSE W/ RESERVOIR для Suzuki GW 250 L3 - 2013 года выпуска`
-
№АртикулНазвание
-
117662-48H00 CONNECTOR, THERMOSTAT INLETCONNECTOR, THERMOSTAT INLET
-
217670-48H00 THERMOSTAT, WATERTHERMOSTAT, WATER
-
301550-0616A BOLTBOLT
-
417851-48H00 HOSE, RADIATOR OUTLETHOSE, RADIATOR OUTLET
-
517852-48H00 HOSE, WATER PUMP INLETHOSE, WATER PUMP INLET
-
617853-48H00 HOSE, WATER PUMP OUTLETHOSE, WATER PUMP OUTLET
-
717854-48H00 HOSE, CYLINDER CONNECTORHOSE, CYLINDER CONNECTOR
-
817855-48H00 HOSE, THERMOSTAT CONNECTORHOSE, THERMOSTAT CONNECTOR
-
917856-48H00 HOSE, RADIATOR INLETHOSE, RADIATOR INLET
-
1017857-48H00 HOSE, WATER BYPASSHOSE, WATER BYPASS
-
1117861-48H00 CONNECTOR, CYL WATER INLETCONNECTOR, CYL WATER INLET
-
1217863-48H00 O RING, CYL INLET CONNECTORO RING, CYL INLET CONNECTOR
-
1317870-48H00 PIPE, WATER PUMPPIPE, WATER PUMP
-
1417880-48H00 PIPE, CYLINDER HEAD OUTLETPIPE, CYLINDER HEAD OUTLET
-
1509160-06028 WASHER (6.5X18X1)WASHER (6.5X18X1)
-
1609180-06365 SPACER (6.5X9X5)SPACER (6.5X9X5)
-
1709280-18011 O RING (D:3.2,ID:17.8)O RING (D:3.2,ID:17.8)
-
1809320-08084 CUSHIONCUSHION
-
1909401-12L02 CLIPCLIP
-
2009402-27L01 CLAMPCLAMP
-
2109402-32L01 CLAMPCLAMP
-
2201547-0620A BOLTBOLT
-
2301550-0620A BOLTBOLT
-
2407130-0612A BOLTBOLT
-
2517910-48H00 TANK ASSY, RESERVOIRTANK ASSY, RESERVOIR
-
2617932-12C00 ...CAP, RESERVOIR TANK...CAP, RESERVOIR TANK
-
2717920-48H00 BRACKET, RESERVOIR TANKBRACKET, RESERVOIR TANK
-
2817981-19F00 HOSE, RESERVOIR TANK INLETHOSE, RESERVOIR TANK INLET
-
2917900-44810 HOSE, RESERVOIR TANK OVER FLOHOSE, RESERVOIR TANK OVER FLO
-
3017985-48H00 HOSE, FUEL TANK WATER DRAINHOSE, FUEL TANK WATER DRAIN
-
3109111-06083 BOLT (6X12)BOLT (6X12)
-
3209367-08005 3 WAY3 WAY
-
3309401-08L01 CLIPCLIP
-
3429404-93J10 CLAMP, RSVR TANK OVFL HOSECLAMP, RSVR TANK OVFL HOSE
-
3529404-93J10 FUEL TANK WATER DRAIN HOSEFUEL TANK WATER DRAIN HOSE
-
3607120-0612A BOLTBOLT
-
3717730-48H00 CAP, RADIATOR 1.1CAP, RADIATOR 1.1
-
3817791-48H00 CONDUCTION, RADIATORCONDUCTION, RADIATOR
-
3901550-0620A BOLTBOLT
-
4013650-49X00 SENSOR, WATER TEMPSENSOR, WATER TEMP
-
4113651-48H00 GASKET, TEMP SENSORGASKET, TEMP SENSOR
