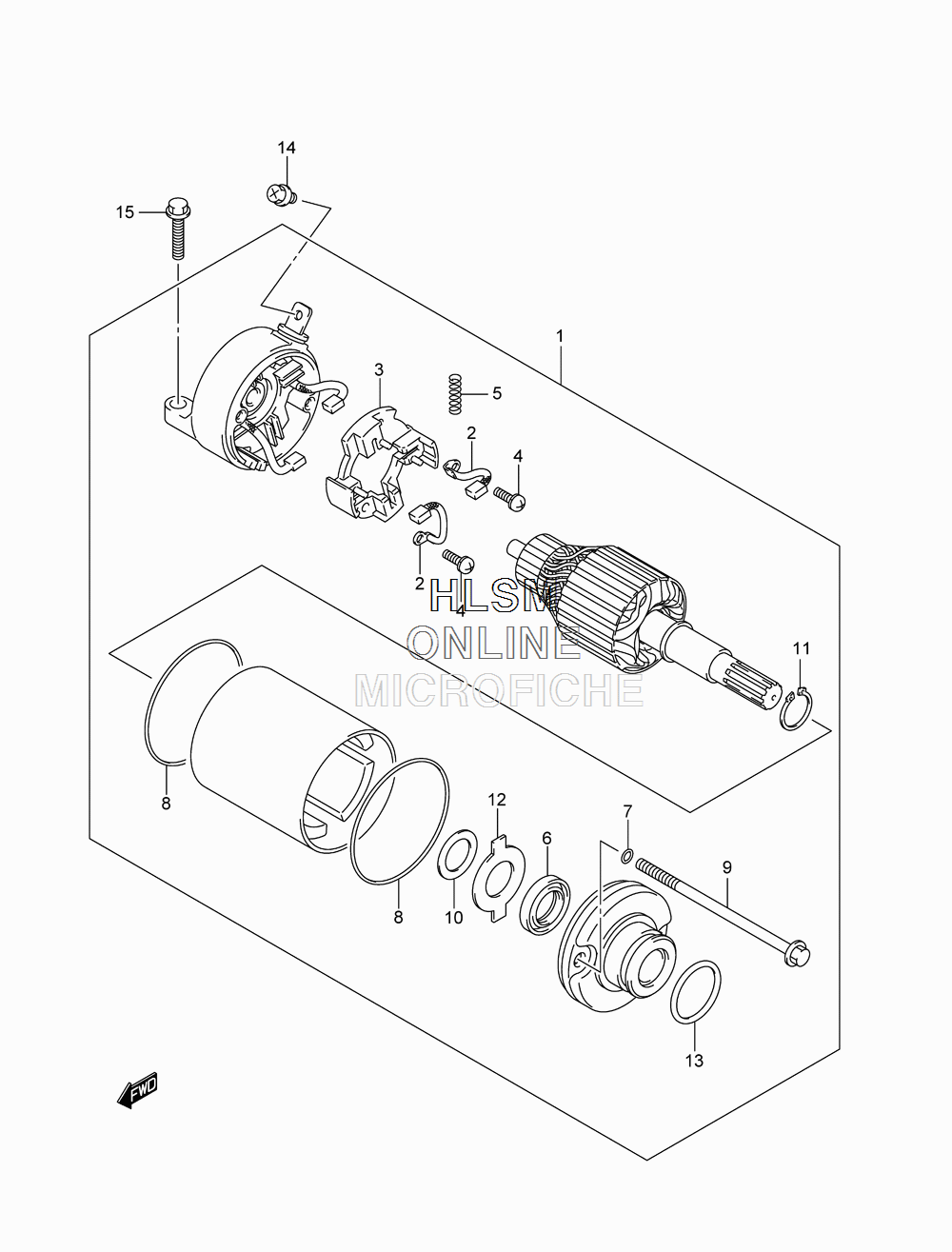

STARTING MOTOR для Suzuki GW 250 L3 - 2013 года выпуска
-
№АртикулНазвание
-
131100-48H00 MOTOR ASSY, STARTINGMOTOR ASSY, STARTING
-
231132-25H00 ...BRUSH...BRUSH
-
331133-25H00 ...BRUSH HOLDER...BRUSH HOLDER
-
431134-25H00 ...SCREW, WASHER...SCREW, WASHER
-
531135-25H00 ...SPRING...SPRING
-
631153-05530 ...OIL SEAL...OIL SEAL
-
731156-25H00 ...O RING...O RING
-
831264-05530 ...O RING...O RING
-
931281-25H00 ...BOLT, THROUGH...BOLT, THROUGH
-
1031361-055A0 ...SHIM...SHIM
-
1131361-05530 ...SNAP RING...SNAP RING
-
1231361-25H00 ...PLATE LOCK...PLATE LOCK
-
1309280-24003 ...O RING (D:3,ID:24.5)...O RING (D:3,ID:24.5)
-
1409137-05004 SCREW (5X8)SCREW (5X8)
-
1501547-0625A BOLTBOLT
