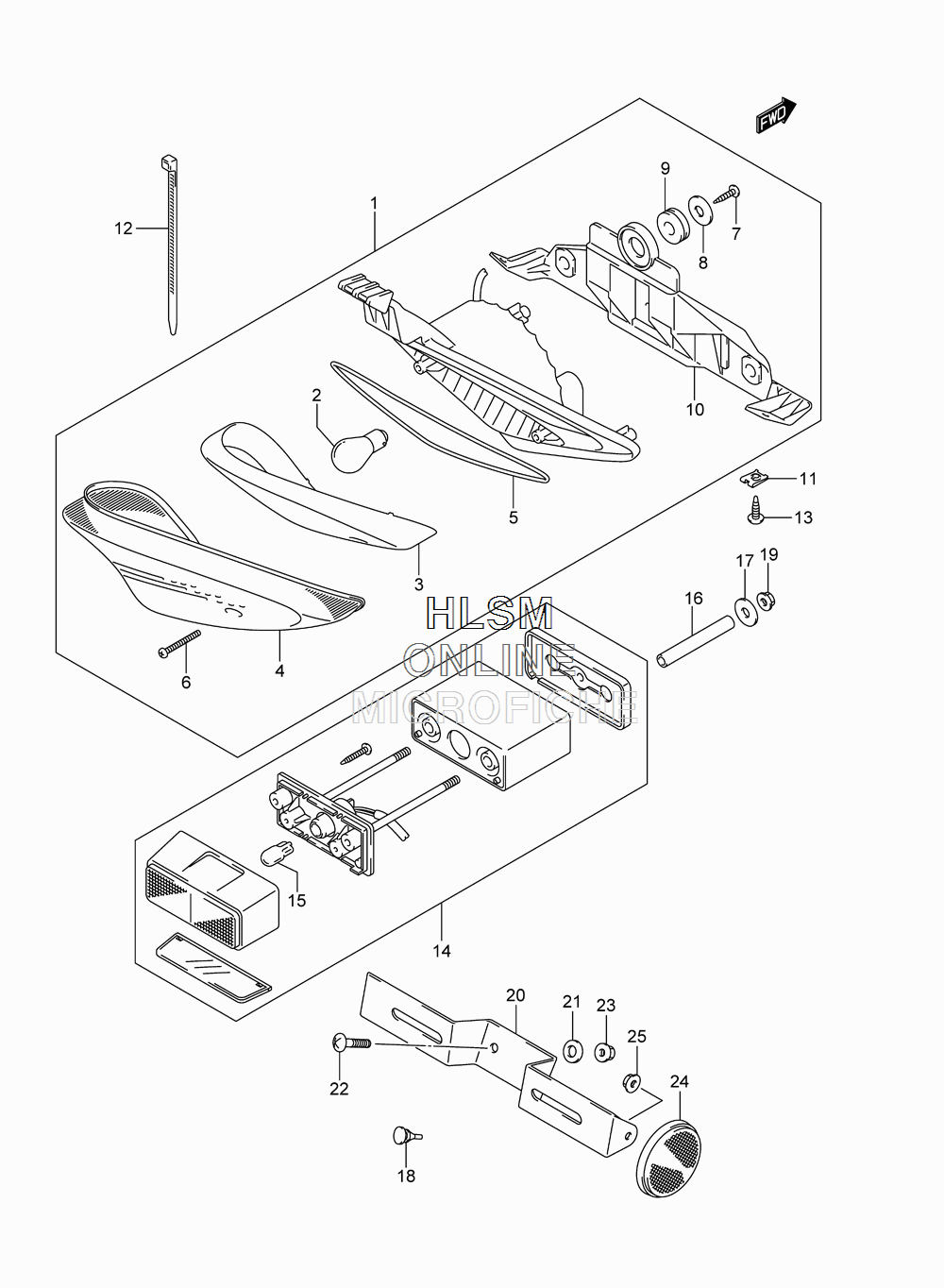

TAILLIGHT ASSY. для Suzuki GW 250 L3 - 2013 года выпуска

№

Артикул

Название
1

35710-48H01 LAMP ASSY, REAR COMBINATION

LAMP ASSY, REAR COMBINATION
2

09471-12083 ...BULB (12V,21/5W)

...BULB (12V,21/5W)
3

35732-48H00 ...LENS

...LENS
4

35712-48H01 ...LENS

...LENS
5

35713-48H00 ...GASKET

...GASKET
6

03211-0435A ...SCREW

...SCREW
7

03241-0514A ...SCREW

...SCREW
8

08212-05181 ...WASHER

...WASHER
9

35765-48H00 ...CUSHION

...CUSHION
10

35726-48H00 ...BRACKET

...BRACKET
11

35157-48H00 NUT, REAR LAMP

NUT, REAR LAMP
12

36990-48H20 CLAMP, REAR COMBINATION LAMP

CLAMP, REAR COMBINATION LAMP
13

03541-0516A SCREW

SCREW
14

35910-48H01 LAMP ASSY, LICENSE

LAMP ASSY, LICENSE
15

09471-12216 ...BULB (12V,5W)

...BULB (12V,5W)
16

35996-48H30 SPACER, LICENSE LAMP

SPACER, LICENSE LAMP
17

09160-06077 WASHER (6.5X20X1.2)

WASHER (6.5X20X1.2)
18

35929-48H00 CUSHION

CUSHION
19

08316-1006A NUT

NUT
20

35927-48H30 BRACKET, LICENSE PLATE

BRACKET, LICENSE PLATE
21

09160-06019 WASHER (6.5X16X1.2)

WASHER (6.5X16X1.2)
22

02142-0616A SCREW

SCREW
23

08316-1006A NUT

NUT
24

35950-04HA0 REFLECTOR ASSY, REAR SIDE

REFLECTOR ASSY, REAR SIDE
25

08316-1005A NUT

NUT
