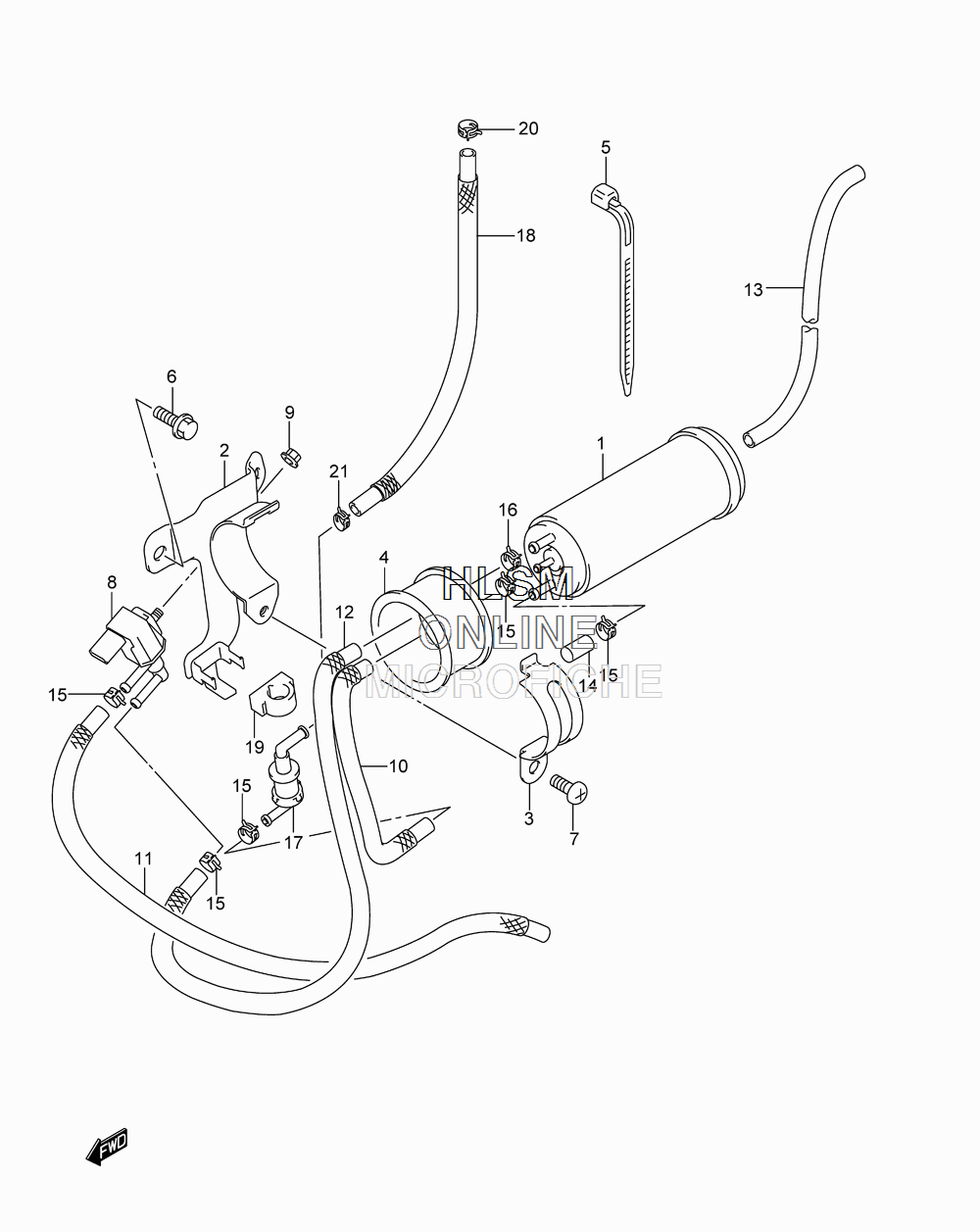

EVAP SYSTEM (CALIF ONLY) для Suzuki GW 250 L3 - 2013 года выпуска
-
№АртикулНазвание
-
118560-48H10 CANISTER ASSY, CHARCOALCANISTER ASSY, CHARCOAL
-
218570-48H00 BRACKET, CANISTERBRACKET, CANISTER
-
318578-48H00 HOLDER, CANISTERHOLDER, CANISTER
-
444883-26E00 CUSHION, CANISTERCUSHION, CANISTER
-
509407-18402 CLAMP (L:165)CLAMP (L:165)
-
601547-0616A BOLTBOLT
-
702142-0610A SCREWSCREW
-
818117-52G10 VALVE, CANISTER PURGEVALVE, CANISTER PURGE
-
908316-1006A NUTNUT
-
1018561-48H10 HOSE, CANISTER INLETHOSE, CANISTER INLET
-
1118563-48H10 HOSE, PURGE VALVEHOSE, PURGE VALVE
-
1218562-48H10 HOSE, CANISTER PURGEHOSE, CANISTER PURGE
-
1318567-48H00 HOSE, CANISTER AIRHOSE, CANISTER AIR
-
1409251-07L01 CAPCAP
-
1509401-10L01 CLIPCLIP
-
1609401-12L04 CLIPCLIP
-
1744240-13H00 VALVE, FUEL TANK BRTHRVALVE, FUEL TANK BRTHR
-
1844434-48H10 HOSE, TANK & BRTHR VALVEHOSE, TANK & BRTHR VALVE
-
1944894-48H00 CUSHION, FUEL TANK BRTHR VALVECUSHION, FUEL TANK BRTHR VALVE
-
2009401-10411 CLIPCLIP
-
2109401-10L01 CLIPCLIP
