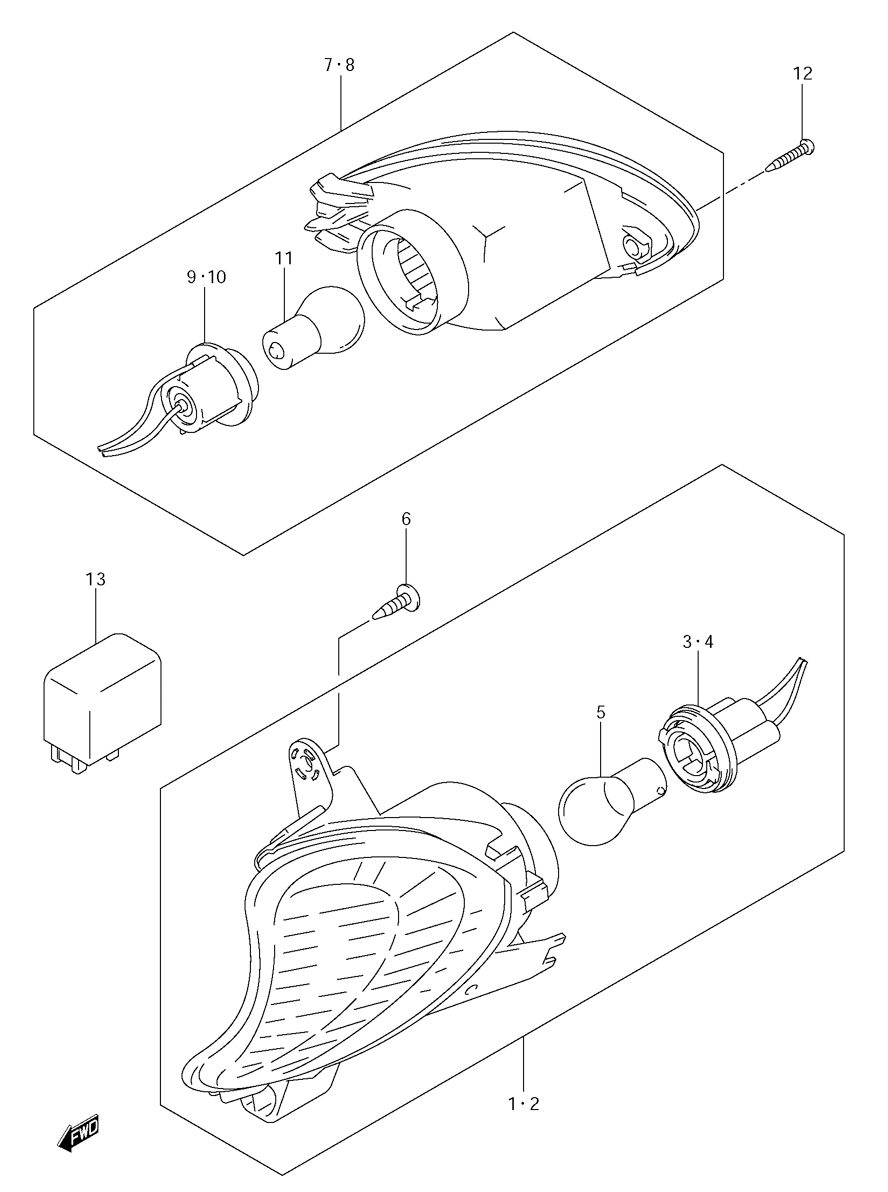

TURN SIGNAL ASSY. для Suzuki GSX-1300R K9 - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    35601-15H00 LAMP ASSEMBLY, FRONT TURNSIGNAL,
    LAMP ASSEMBLY, FRONT TURNSIGNAL,
  • 2
    35602-15H00 LAMP ASSEMBLY, FRONT TURNSIGNAL,
    LAMP ASSEMBLY, FRONT TURNSIGNAL,
  • 3
    35618-15H00 ...SOCKET & CORD, RIGHT
    ...SOCKET & CORD, RIGHT
  • 4
    35638-15H00 ...SOCKET & CORD, LEFT
    ...SOCKET & CORD, LEFT
  • 5
    09471-12186 ...BULB (12V21W)
    ...BULB (12V21W)
  • 6
    03541-0516B SCREW, FR TURNSIGNAL
    SCREW, FR TURNSIGNAL
  • 7
    35603-15H00 LAMP ASSEMBLY, REAR TURNSIGNAL, RIGHT
    LAMP ASSEMBLY, REAR TURNSIGNAL, RIGHT
  • 8
    35604-15H00 LAMP ASSEMBLY, REAR TURNSIGNAL, LEFT
    LAMP ASSEMBLY, REAR TURNSIGNAL, LEFT
  • 9
    35658-15H00 ...SOCKET & CORD, RIGHT
    ...SOCKET & CORD, RIGHT
  • 10
    35678-15H00 ...SOCKET & CORD, LEFT
    ...SOCKET & CORD, LEFT
  • 11
    09471-12186 ...BULB (12V21W)
    ...BULB (12V21W)
  • 12
    09132-04032 SCREW, RR TURNSIGNAL
    SCREW, RR TURNSIGNAL
  • 13
    38610-03F00 RELAY ASSEMBLY, TURNSIGNAL LAMP
    RELAY ASSEMBLY, TURNSIGNAL LAMP
