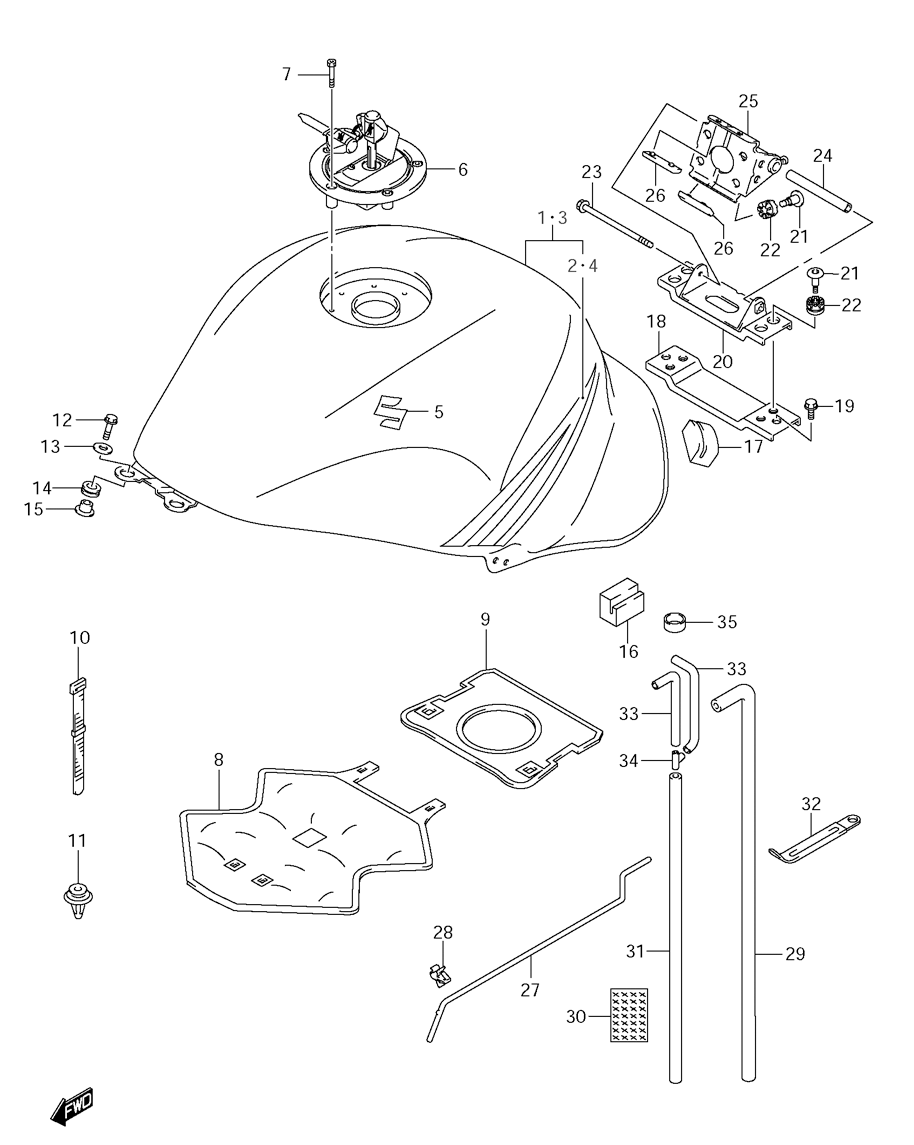

FUEL TANK для Suzuki GSX-1300R K9 - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    44100-15H00-YAY TANK ASSEMBLY, FUEL (BLACK) (YAY FO( CZY) EXCEPT CALF.)
    TANK ASSEMBLY, FUEL (BLACK) (YAY FO( CZY) EXCEPT CALF.)
  • 1
    44100-15H00-YMG TANK ASSEMBLY, FUEL (GOLD) (YMG FOR FGG) (EXCEPT CALF.)
    TANK ASSEMBLY, FUEL (GOLD) (YMG FOR FGG) (EXCEPT CALF.)
  • 1
    44100-15H00-YHG TANK ASSEMBLY, FUEL (GRAY) (YHG FOR GRF) (EXCEPT CALF.)
    TANK ASSEMBLY, FUEL (GRAY) (YHG FOR GRF) (EXCEPT CALF.)
  • 1
    44100-15H20-YAY TANK ASSEMBLY, FUEL (BLACK) (YAY FOR CZY) (FOR CALF. ONLY)
    TANK ASSEMBLY, FUEL (BLACK) (YAY FOR CZY) (FOR CALF. ONLY)
  • 1
    44100-15H20-YMG TANK ASSEMBLY, FUEL (GOLD) (YMG FOR FGG) (FOR CALF. ONLY)
    TANK ASSEMBLY, FUEL (GOLD) (YMG FOR FGG) (FOR CALF. ONLY)
  • 1
    44100-15H20-YHG TANK ASSEMBLY, FUEL (GRAY) (YHG FOR GRF) (FOR CALF. ONLY)
    TANK ASSEMBLY, FUEL (GRAY) (YHG FOR GRF) (FOR CALF. ONLY)
  • 2
    68110-15H00-GKU ...TAPE SET (GKU FOR YAY)
    ...TAPE SET (GKU FOR YAY)
  • 2
    68110-15H00-GKW ...TAPE SET (GKW FOR YMG)
    ...TAPE SET (GKW FOR YMG)
  • 2
    68110-15H00-GKV ...TAPE SET (GKV FOR YHG)
    ...TAPE SET (GKV FOR YHG)
  • 3
    44100-15H30-YBD TANK ASSEMBLY, FUEL (WHITE) (YBD FOR FGF) (EXCEPT CALF.)
    TANK ASSEMBLY, FUEL (WHITE) (YBD FOR FGF) (EXCEPT CALF.)
  • 3
    44100-15H50-YBD TANK ASSEMBLY, FUEL (WHITE) (YBD FOR FGF) (FOR CALF. ONLY)
    TANK ASSEMBLY, FUEL (WHITE) (YBD FOR FGF) (FOR CALF. ONLY)
  • 4
    68110-15H10-GUH ...TAPE SET (GUH)
    ...TAPE SET (GUH)
  • 5
    68111-18G20 EMBLEM, "S"
    EMBLEM, "S"
  • 6
    44200-16850 CAP SET, FUEL TANK (EXCEPT CALF.)
    CAP SET, FUEL TANK (EXCEPT CALF.)
  • 6
    44200-16870 CAP SET, FUEL TANK (FOR CALF. ONLY)
    CAP SET, FUEL TANK (FOR CALF. ONLY)
  • 7
    09106-05017 BOLT
    BOLT
  • 8
    44191-15H00 SHIELD, HEAT FRONT
    SHIELD, HEAT FRONT
  • 9
    44191-15H10 SHIELD, HEAT REAR
    SHIELD, HEAT REAR
  • 10
    09407-18402 CLAMP
    CLAMP
  • 11
    09409-06322 CLIP
    CLIP
  • 12
    09139-06029 BOLT, FRONT
    BOLT, FRONT
  • 13
    09160-06054 WASHER
    WASHER
  • 14
    44511-16G00 CUSHION
    CUSHION
  • 15
    44512-16G00 SPACER
    SPACER
  • 16
    44541-24F00 CUSHION, SIDE
    CUSHION, SIDE
  • 17
    44543-15H00 CUSHION, REAR
    CUSHION, REAR
  • 18
    44555-15H00 BRACKET, REAR LOWER
    BRACKET, REAR LOWER
  • 19
    01550-0812B BOLT
    BOLT
  • 20
    44550-15H00 BRACKET, REAR UPPER
    BRACKET, REAR UPPER
  • 21
    09139-06132 BOLT
    BOLT
  • 22
    09320-08071 CUSHION
    CUSHION
  • 23
    07120-0695B BOLT, JOINT
    BOLT, JOINT
  • 24
    44561-18G00 SPACER, JOINT
    SPACER, JOINT
  • 25
    44530-15H00 BRACKET, REAR FRONT
    BRACKET, REAR FRONT
  • 26
    45149-44G00 CUSHION, BRACKET
    CUSHION, BRACKET
  • 27
    44574-35F00 STAY
    STAY
  • 28
    09403-05310 CLAMP, STAY
    CLAMP, STAY
  • 29
    44423-15H00 HOSE, DRAIN
    HOSE, DRAIN
  • 30
    44427-15H00 SHIELD, DRAIN HOSE HEAT (EXCEPT CALF.)
    SHIELD, DRAIN HOSE HEAT (EXCEPT CALF.)
  • 30
    44427-15H10 SHIELD, DRAIN HOSE HEAT (FOR CALF. ONLY)
    SHIELD, DRAIN HOSE HEAT (FOR CALF. ONLY)
  • 31
    44424-15H00 HOSE, BREATHER (EXCEPT CALF.)
    HOSE, BREATHER (EXCEPT CALF.)
  • 32
    09404-06431 CLAMP, DRAIN HOSE
    CLAMP, DRAIN HOSE
  • 33
    44424-15H10 HOSE, BREATHER NO.2 (EXCEPT CALF.)
    HOSE, BREATHER NO.2 (EXCEPT CALF.)
  • 34
    09367-06007 3 WAY (EXCEPT CALF.)
    3 WAY (EXCEPT CALF.)
  • 35
    09352-12163-600 HOSE, JOINT (LENGTH: 600->10) (EXCEPT CALF.)
    HOSE, JOINT (LENGTH: 600->10) (EXCEPT CALF.)
