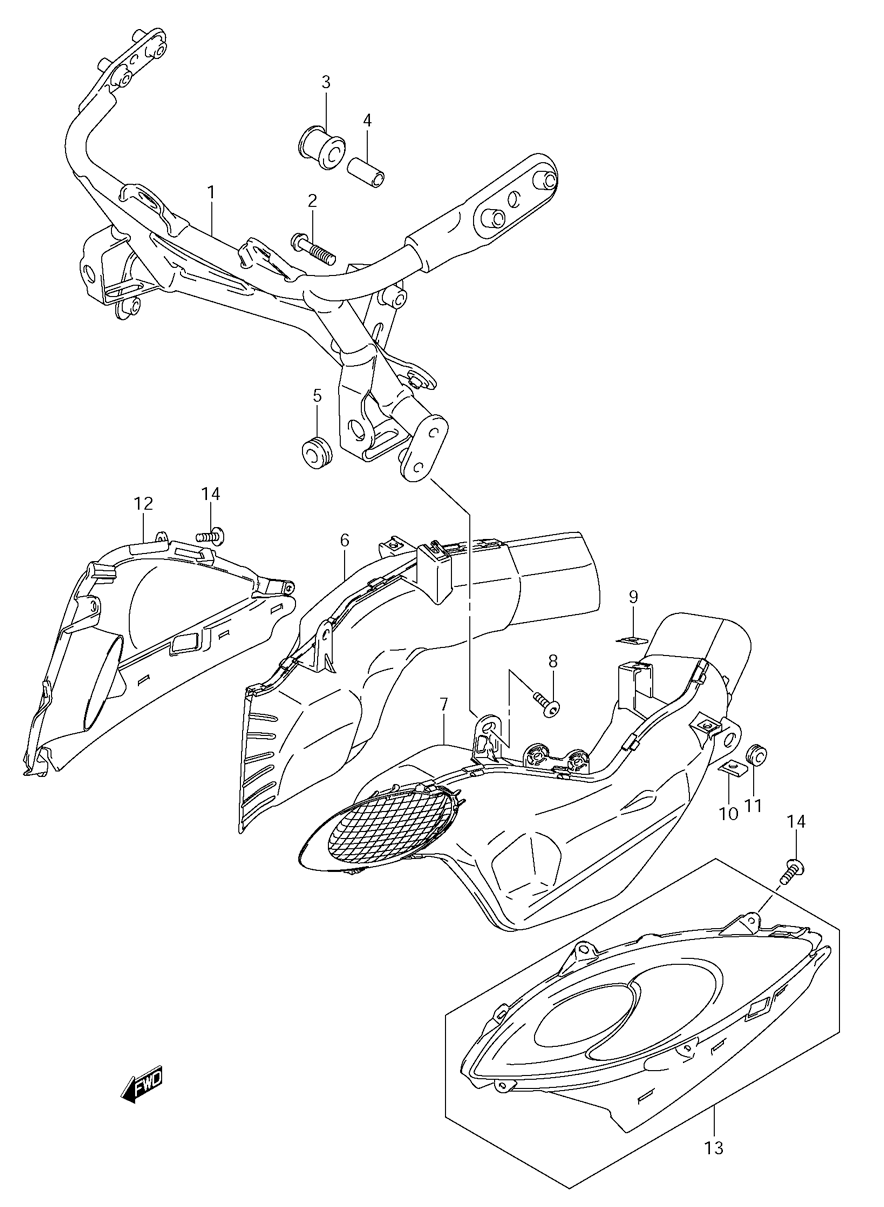

AIR INTAKE для Suzuki GSX-1300R K9 - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    94510-15H00 BRACE, COWLING
    BRACE, COWLING
  • 2
    09103-08367 BOLT, BRACE
    BOLT, BRACE
  • 3
    94541-41C00 CUSHION, UPPER
    CUSHION, UPPER
  • 4
    09180-08215 SPACER, UPER
    SPACER, UPER
  • 5
    09320-08028 CUSHION, HEADLAMP
    CUSHION, HEADLAMP
  • 6
    94420-15H00 PIPE, INTAKE RIGHT HAND
    PIPE, INTAKE RIGHT HAND
  • 7
    94430-15H00 PIPE, INTAKE LEFT HAND
    PIPE, INTAKE LEFT HAND
  • 8
    94423-15H00 SCREW
    SCREW
  • 9
    94484-24F00 NUT, METER PANEL
    NUT, METER PANEL
  • 10
    09148-05038 NUT, REAR
    NUT, REAR
  • 11
    09320-08028 CUSHION, SIDE
    CUSHION, SIDE
  • 12
    94671-15H00-YAY COVER, INTAKE RIGHT HAND (BLACK) (YAY FOR CZY)
    COVER, INTAKE RIGHT HAND (BLACK) (YAY FOR CZY)
  • 12
    94671-15H00-YBD COVER, INTAKE RIGHT HAND (WHITE) (YBD FOR FGF)
    COVER, INTAKE RIGHT HAND (WHITE) (YBD FOR FGF)
  • 12
    94671-15H00-YMG COVER, INTAKE RIGHT HAND (GOLD) (YMG FOR FGG)
    COVER, INTAKE RIGHT HAND (GOLD) (YMG FOR FGG)
  • 12
    94671-15H00-YHG COVER, INTAKE RIGHT HAND (GRAY) (YHG FOR GRF)
    COVER, INTAKE RIGHT HAND (GRAY) (YHG FOR GRF)
  • 13
    94681-15H00-YAY COVER, INTAKE LEFT HAND (BLACK) (YAY FOR CZY)
    COVER, INTAKE LEFT HAND (BLACK) (YAY FOR CZY)
  • 13
    94681-15H00-YBD COVER, INTAKE LEFT HAND (WHITE) (YBD FOR FGF)
    COVER, INTAKE LEFT HAND (WHITE) (YBD FOR FGF)
  • 13
    94681-15H00-YMG COVER, INTAKE LEFT HAND (GOLD) (YMG FOR FGG)
    COVER, INTAKE LEFT HAND (GOLD) (YMG FOR FGG)
  • 13
    94681-15H00-YHG COVER, INTAKE LEFT HAND (GRAY) (YHG FOR GRF)
    COVER, INTAKE LEFT HAND (GRAY) (YHG FOR GRF)
  • 14
    03541-0516B SCREW
    SCREW
