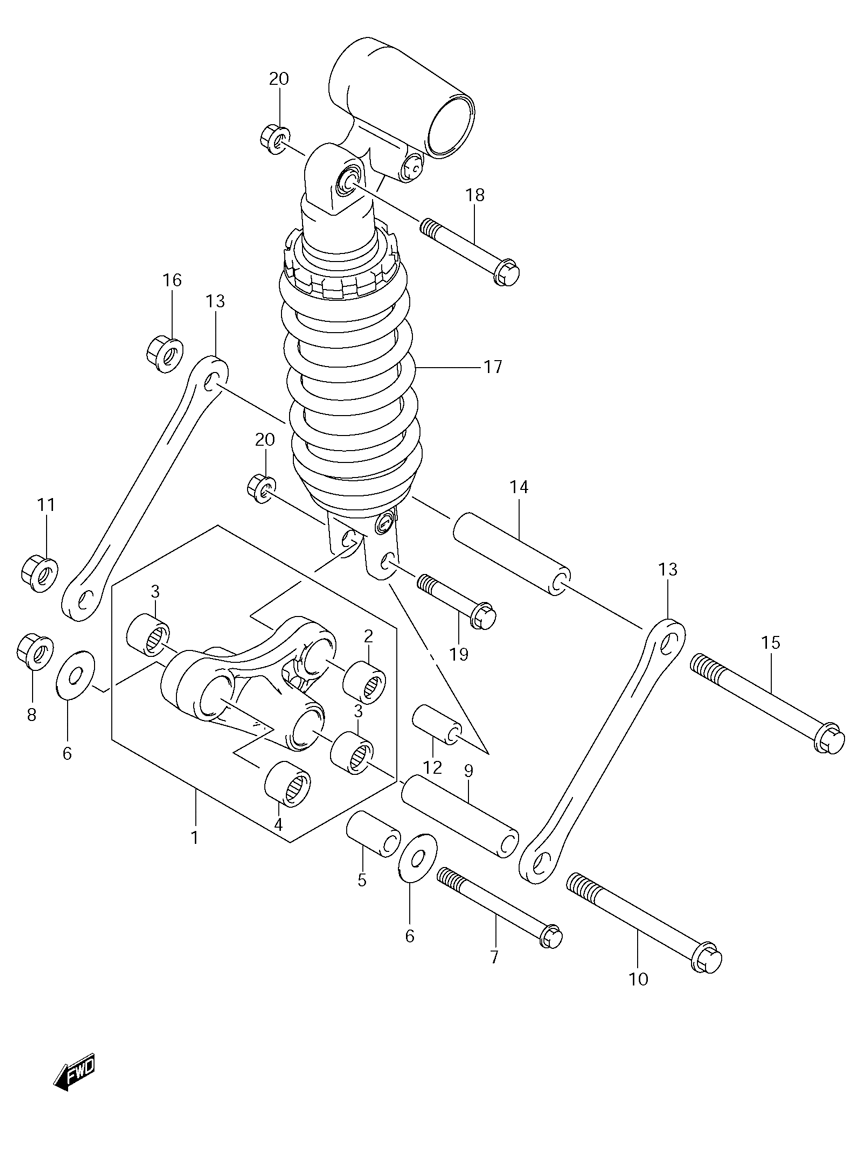

SUSPENSION - CUSHION LEVER W/ SHOCK для Suzuki GSX-1300R K9 - 2009 года выпуска
-
№АртикулНазвание
-
162600-24831 LEVER SET, REAR CUSHIONLEVER SET, REAR CUSHION
-
209263-20073 ...BEARING, FRONT (20X27X30)...BEARING, FRONT (20X27X30)
-
309263-17037 ...BEARING, CENTER...BEARING, CENTER
-
409263-17034 ...BEARING, REAR (17X24X26)...BEARING, REAR (17X24X26)
-
562684-12C00 SPACER, FRONT (12X20X32)SPACER, FRONT (12X20X32)
-
608211-12301 WASHERWASHER
-
762658-19F00 BOLT, FRONT (12X78)BOLT, FRONT (12X78)
-
808319-3112A NUTNUT
-
962626-33D00 SPACER, CENTERSPACER, CENTER
-
1062621-33D10 BOLT, CENTERBOLT, CENTER
-
1108319-3112A NUTNUT
-
1262684-40A10 SPACER, REAR (10X17X30)SPACER, REAR (10X17X30)
-
1362641-24F00 ROD, REAR CUSHIONROD, REAR CUSHION
-
1462626-33D00 SPACER, RODSPACER, ROD
-
1562621-33D10 BOLT, RODBOLT, ROD
-
1608319-3112A NUTNUT
-
1762100-24F60 ABSORBER ASSEMBLY, REAR SHOCK (FOR UNITED STATES ONLY)ABSORBER ASSEMBLY, REAR SHOCK (FOR UNITED STATES ONLY)
-
1762100-24F50 ABSORBER ASSEMBLY, REAR SHOCK (FOR CANADA ONLY)ABSORBER ASSEMBLY, REAR SHOCK (FOR CANADA ONLY)
-
1809103-10033 BOLT, UPPERBOLT, UPPER
-
1909103-10143 BOLT, LOWERBOLT, LOWER
-
2009159-10115 NUTNUT
