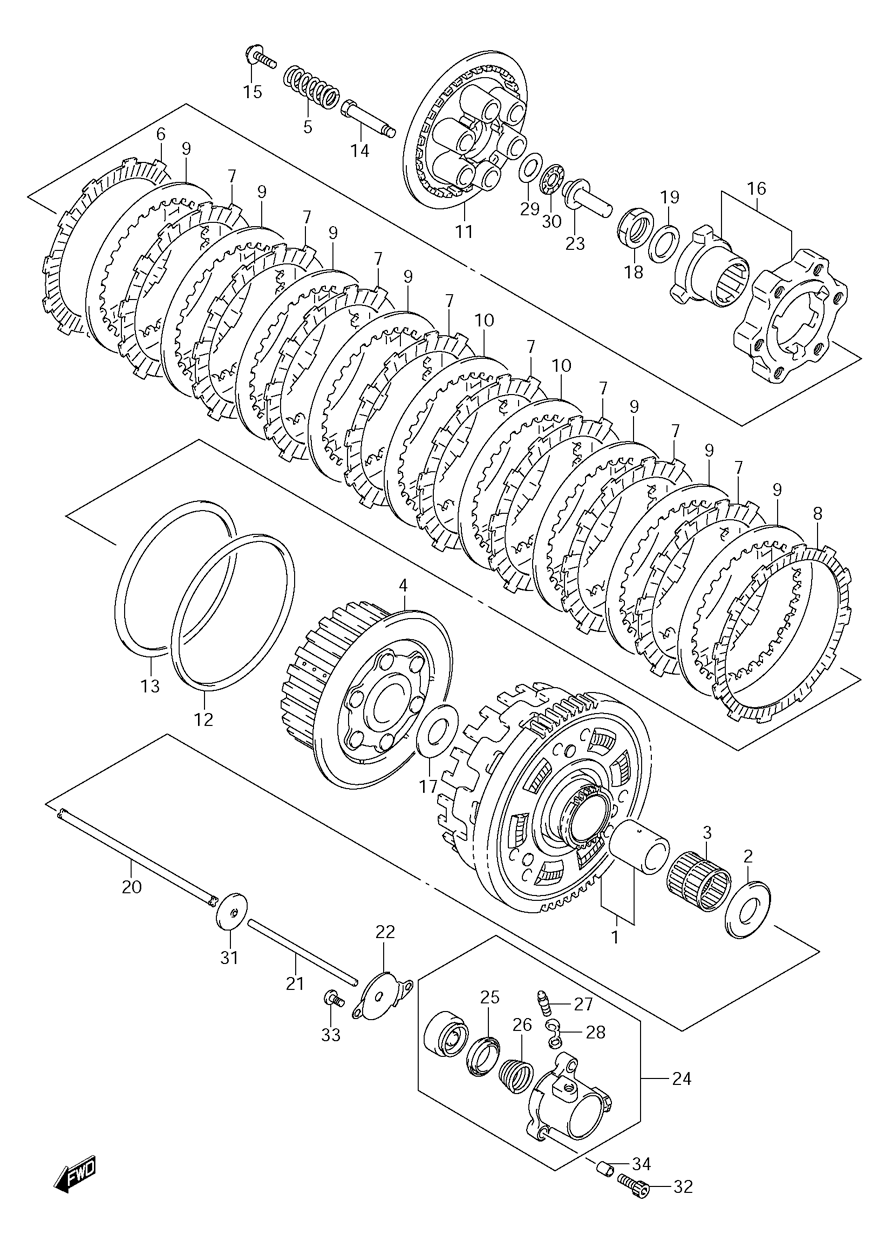

CLUTCH для Suzuki GSX-1300R K9 - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    21200-24810 GEAR ASSEMBLY, PRIMARY DRIVEN (83 TEETH)
    GEAR ASSEMBLY, PRIMARY DRIVEN (83 TEETH)
  • 2
    09160-25073 WASHER, PRI DRIVEN GEAR
    WASHER, PRI DRIVEN GEAR
  • 3
    09263-35013 BEARING, PRIMARY DRIVEN
    BEARING, PRIMARY DRIVEN
  • 4
    21410-24F00 HUB, CLUTCH SLEEVE
    HUB, CLUTCH SLEEVE
  • 5
    21413-24F30 SPRING, CLUTCH
    SPRING, CLUTCH
  • 6
    21441-24F10 PLATE, CLUTCH DRIVE NO.2
    PLATE, CLUTCH DRIVE NO.2
  • 7
    21441-24F30 PLATE, CLUTCH DRIVE NO.1
    PLATE, CLUTCH DRIVE NO.1
  • 8
    21442-24F00 PLATE, CLUTCH DRIVE NO.3
    PLATE, CLUTCH DRIVE NO.3
  • 9
    21451-24F00 PLATE, CLUTCH DRIVEN NO.1
    PLATE, CLUTCH DRIVEN NO.1
  • 10
    21451-24F10 PLATE, CLUTCH DRIVEN NO.2
    PLATE, CLUTCH DRIVEN NO.2
  • 11
    21462-24F00 DISC, CLUTCH PRESSURE
    DISC, CLUTCH PRESSURE
  • 12
    21471-24F00 SEAT, WAVE WASHER
    SEAT, WAVE WASHER
  • 13
    21472-06G00 WASHER, CLUTCH PLATE WAVE
    WASHER, CLUTCH PLATE WAVE
  • 14
    21481-24F30 BOLT, CLUTCH SPRING SUPPORT
    BOLT, CLUTCH SPRING SUPPORT
  • 15
    21482-24F30 BOLT, CLUTCH SPRING
    BOLT, CLUTCH SPRING
  • 16
    21610-02F12 CAM SET, CLUTCH
    CAM SET, CLUTCH
  • 17
    09160-25056 WASHER, CLUTCH SLEEVE HUB
    WASHER, CLUTCH SLEEVE HUB
  • 18
    09159-24010 NUT, CLUTCH SLEEVE HUB
    NUT, CLUTCH SLEEVE HUB
  • 19
    09164-24006 WASHER, CLUTCH SLEEVE HUB
    WASHER, CLUTCH SLEEVE HUB
  • 20
    23110-24F00 ROD, CLUTCH (LENGTH: 195.5)
    ROD, CLUTCH (LENGTH: 195.5)
  • 21
    23111-26D00 ROD, CLUTCH PUSH (LENGTH: 132.5)
    ROD, CLUTCH PUSH (LENGTH: 132.5)
  • 22
    23117-46E00 COVER, CLUTCH RLSE CYL
    COVER, CLUTCH RLSE CYL
  • 23
    23121-31E00 PIECE, CLUTCH PUSH
    PIECE, CLUTCH PUSH
  • 24
    23160-15H00 CYLINDER, CLUTCH RELEASE
    CYLINDER, CLUTCH RELEASE
  • 25
    23163-10F00 ...CUP
    ...CUP
  • 26
    23164-10F00 ...SPRING
    ...SPRING
  • 27
    59121-01A00 ...BLEEDER
    ...BLEEDER
  • 28
    59122-01A00 ...CAP, BLEEDER
    ...CAP, BLEEDER
  • 29
    09160-15045 WASHER, CLUTCH PUSH PIECE
    WASHER, CLUTCH PUSH PIECE
  • 30
    09263-15003 BEARING, CLUTCH PUSH PIECE
    BEARING, CLUTCH PUSH PIECE
  • 31
    09285-06015 SEAL, CLUTCH PUSH ROD OIL
    SEAL, CLUTCH PUSH ROD OIL
  • 32
    07130-0625A BOLT, CLUTCH RELEASE CYLINDER
    BOLT, CLUTCH RELEASE CYLINDER
  • 33
    02112-0610A SCREW, CYL COVER
    SCREW, CYL COVER
  • 34
    04211-09129 PIN, CLUTCH
    PIN, CLUTCH
