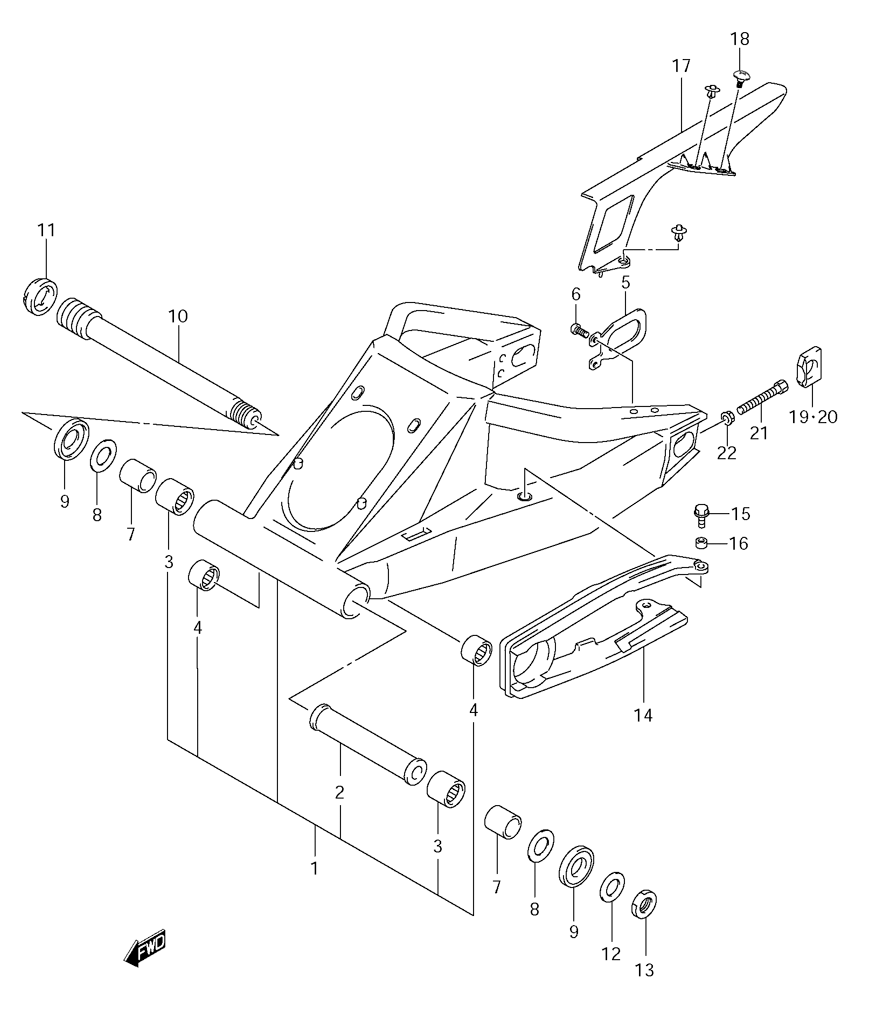

SUSPENSION - REAR SWING ARM W/ SHOCK для Suzuki GSX-1300R K9 - 2009 года выпуска
-
№АртикулНазвание
-
161000-24F40-YAP SWINGING ARM ASSEMBLY, REAR (YAP)SWINGING ARM ASSEMBLY, REAR (YAP)
-
261281-33E20 ...SPACER, CENTER...SPACER, CENTER
-
309263-30040 ...BEARING, PIVOT (30X40X25)...BEARING, PIVOT (30X40X25)
-
409263-17037 ...BEARING, ROD (20X27X23.5)...BEARING, ROD (20X27X23.5)
-
561124-33E00 PLATE, BRACKETPLATE, BRACKET
-
609125-06073 SCREWSCREW
-
761251-17E10 SPACER, BEARINGSPACER, BEARING
-
808211-25481 WASHERWASHER
-
961262-17E10 SEAL, DUSTSEAL, DUST
-
1061211-16G00 SHAFT, PIVOTSHAFT, PIVOT
-
1161214-40C31 NUT, PIVOT SHAFTNUT, PIVOT SHAFT
-
1209160-25070 WASHERWASHER
-
1309159-25003 NUTNUT
-
1461273-15H00 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
1509116-06152 BOLT (6X20)BOLT (6X20)
-
1609180-06306 SPACER (6.5X9X5)SPACER (6.5X9X5)
-
1761311-15H00 CASE, CHAINCASE, CHAIN
-
1809139-06168 SCREW (6X16)SCREW (6X16)
-
1961446-40F10 ADJUSTER, CHAIN RIGHT HANDADJUSTER, CHAIN RIGHT HAND
-
2061445-40F20 ADJUSTER, CHAIN LEFT HANDADJUSTER, CHAIN LEFT HAND
-
2109100-08287 BOLT (8X50)BOLT (8X50)
-
2208316-1008A NUTNUT
