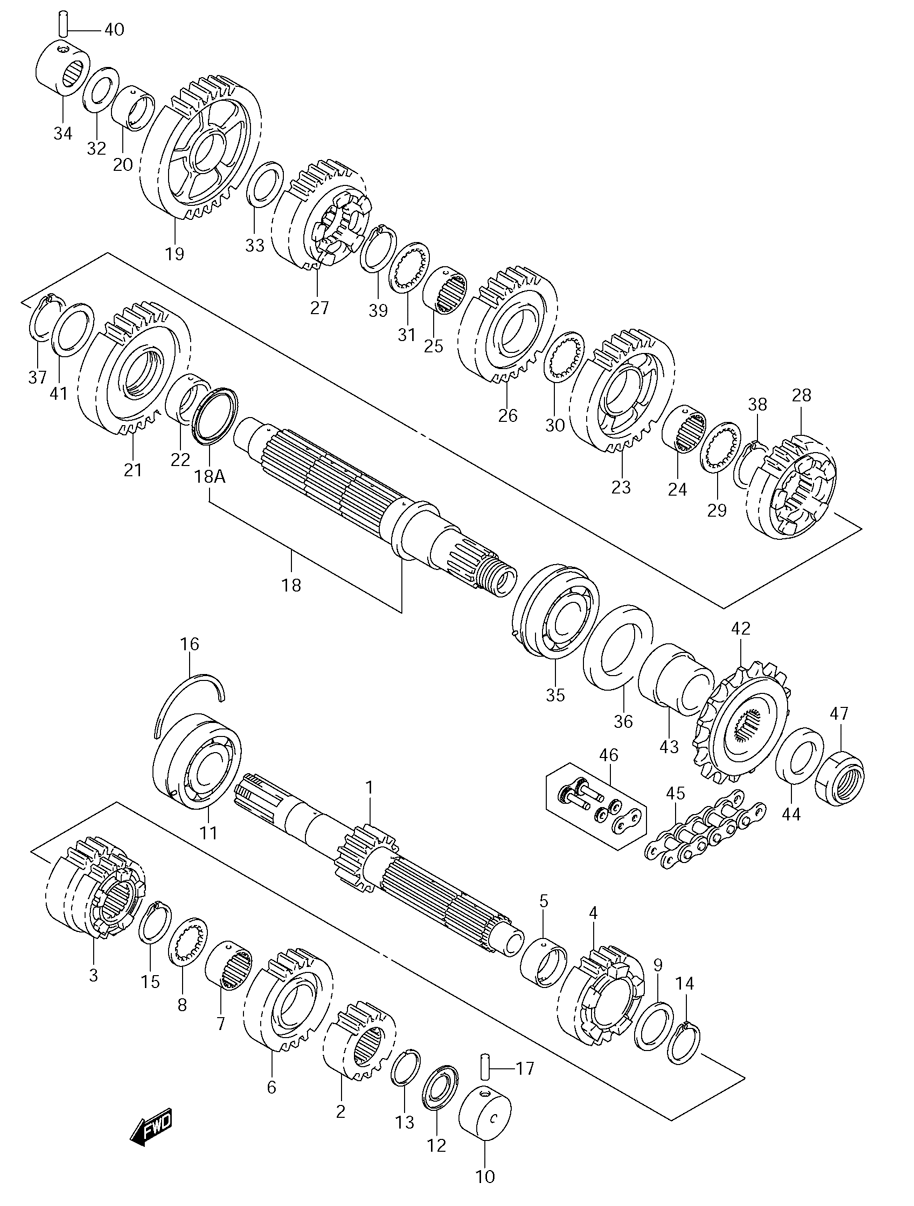

TRANSMISSION для Suzuki GSX-1300R K8 - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    24120-24F00 SHAFT, CNTR (NO. OF TEETH: 13)
    SHAFT, CNTR (NO. OF TEETH: 13)
  • 2
    24221-15H00 GEAR, 2ND DRIVE (NO. OF TEETH: 16)
    GEAR, 2ND DRIVE (NO. OF TEETH: 16)
  • 3
    24231-15H00 GEAR, 3RD & 4TH DRIVE
    GEAR, 3RD & 4TH DRIVE
  • 4
    24251-15H00 GEAR, 5TH DRIVE (NO. OF TEETH: 22)
    GEAR, 5TH DRIVE (NO. OF TEETH: 22)
  • 5
    24252-24F10 BUSH, 5TH DRIVE GEAR
    BUSH, 5TH DRIVE GEAR
  • 6
    24261-15H00 GEAR, 6TH DRIVE (NO. OF TEETH: 23)
    GEAR, 6TH DRIVE (NO. OF TEETH: 23)
  • 7
    24262-24F10 BUSH, 6TH DRIVE GEAR
    BUSH, 6TH DRIVE GEAR
  • 8
    09167-27003 WASHER, 6TH DRIVE GEAR
    WASHER, 6TH DRIVE GEAR
  • 9
    09181-27014 WASHER, 5TH DRIVE GEAR
    WASHER, 5TH DRIVE GEAR
  • 10
    09263-20085 BEARING, CNTR SHAFT, LEFT
    BEARING, CNTR SHAFT, LEFT
  • 11
    09267-25012 BEARING, CNTR SHAFT, RIGHT
    BEARING, CNTR SHAFT, RIGHT
  • 12
    09285-20006 SEAL, OIL
    SEAL, OIL
  • 13
    09380-27004 CIRCLIP, 2ND DRIVE GEAR
    CIRCLIP, 2ND DRIVE GEAR
  • 14
    09380-27006 CIRCLIP, 5TH DRIVE GEAR
    CIRCLIP, 5TH DRIVE GEAR
  • 15
    09380-27006 CIRCLIP, 6TH DRIVE GEAR
    CIRCLIP, 6TH DRIVE GEAR
  • 16
    09390-62012 C RING, CNTR SHAFT BRG, RIGHT
    C RING, CNTR SHAFT BRG, RIGHT
  • 17
    04221-07209 PIN, CNTR SHAFT BRG, LEFT
    PIN, CNTR SHAFT BRG, LEFT
  • 18
    24130-15H00 SHAFT, DRIVE
    SHAFT, DRIVE
  • 18A
    24136-48G01 ...RING, DRIVE SHAFT FRICTION
    ...RING, DRIVE SHAFT FRICTION
  • 19
    24311-15H00 GEAR, 1ST DRIVEN (NO. OF TEETH: 34)
    GEAR, 1ST DRIVEN (NO. OF TEETH: 34)
  • 20
    24312-24F10 BUSH, 1ST DRIVEN GEAR
    BUSH, 1ST DRIVEN GEAR
  • 21
    24321-15H00 GEAR, 2ND DRIVEN (NO. OF TEETH: 31)
    GEAR, 2ND DRIVEN (NO. OF TEETH: 31)
  • 22
    24322-48G00 BUSH, 2ND DRIVEN GEAR
    BUSH, 2ND DRIVEN GEAR
  • 23
    24331-15H00 GEAR, 3RD DRIVEN (NO. OF TEETH: 29)
    GEAR, 3RD DRIVEN (NO. OF TEETH: 29)
  • 24
    24332-24F10 BUSH, 3RD DRIVEN GEAR
    BUSH, 3RD DRIVEN GEAR
  • 25
    24332-24F10 BUSH, 4TH DRIVEN GEAR
    BUSH, 4TH DRIVEN GEAR
  • 26
    24341-15H00 GEAR, 4TH DRIVEN (NO. OF TEETH: 27)
    GEAR, 4TH DRIVEN (NO. OF TEETH: 27)
  • 27
    24351-15H00 GEAR, 5TH DRIVEN (NO. OF TEETH: 25)
    GEAR, 5TH DRIVEN (NO. OF TEETH: 25)
  • 28
    24361-15H00 GEAR, 6TH DRIVEN (NO. OF TEETH: 24)
    GEAR, 6TH DRIVEN (NO. OF TEETH: 24)
  • 29
    09167-30008 WASHER, 3RD DRIVEN GEAR
    WASHER, 3RD DRIVEN GEAR
  • 30
    09167-30008 WASHER, 3RD & 4TH DRIVE
    WASHER, 3RD & 4TH DRIVE
  • 31
    09167-30008 WASHER, 4TH DRIVEN GEAR
    WASHER, 4TH DRIVEN GEAR
  • 32
    09181-20251 WASHER, 1ST DRIVEN GEAR
    WASHER, 1ST DRIVEN GEAR
  • 33
    09181-24005 WASHER, 1ST DRIVEN GEAR
    WASHER, 1ST DRIVEN GEAR
  • 34
    09263-20040 BEARING, DRIVE SHAFT, RIGHT
    BEARING, DRIVE SHAFT, RIGHT
  • 35
    09267-30011 BEARING, DRIVE SHAFT, LEFT
    BEARING, DRIVE SHAFT, LEFT
  • 36
    09283-42018 SEAL, DRIVE AHAFT OIL
    SEAL, DRIVE AHAFT OIL
  • 37
    09380-30009 CIRCLIP, 2ND DRIVEN GEAR
    CIRCLIP, 2ND DRIVEN GEAR
  • 38
    09380-30009 CIRCLIP, 3RD DRIVEN GEAR
    CIRCLIP, 3RD DRIVEN GEAR
  • 39
    09380-30009 CIRCLIP, 4TH DRIVEN GEAR
    CIRCLIP, 4TH DRIVEN GEAR
  • 40
    04221-07209 PIN, DRIVE SHAFT BRG, RIGHT
    PIN, DRIVE SHAFT BRG, RIGHT
  • 41
    08211-30405 WASHER, 2ND DRIVEN GEAR
    WASHER, 2ND DRIVEN GEAR
  • 42
    27510-15H00 SPROCKET, ENGINE (NO. OF TEETH: 18)
    SPROCKET, ENGINE (NO. OF TEETH: 18)
  • 43
    27531-15H00 SPACER, ENGINE SPROCKET NO.1
    SPACER, ENGINE SPROCKET NO.1
  • 44
    27532-15H00 SPACER, ENGINE SPROCKET NO.2
    SPACER, ENGINE SPROCKET NO.2
  • 45
    27600-24F60-118 CHAIN ASSEMBLY, DRIVE
    CHAIN ASSEMBLY, DRIVE
  • 46
    27620-24F60 JOINT SET, DRIVEN (OPTIONAL)
    JOINT SET, DRIVEN (OPTIONAL)
  • 47
    09159-22008 NUT, ENGINE SPROCKET
    NUT, ENGINE SPROCKET
