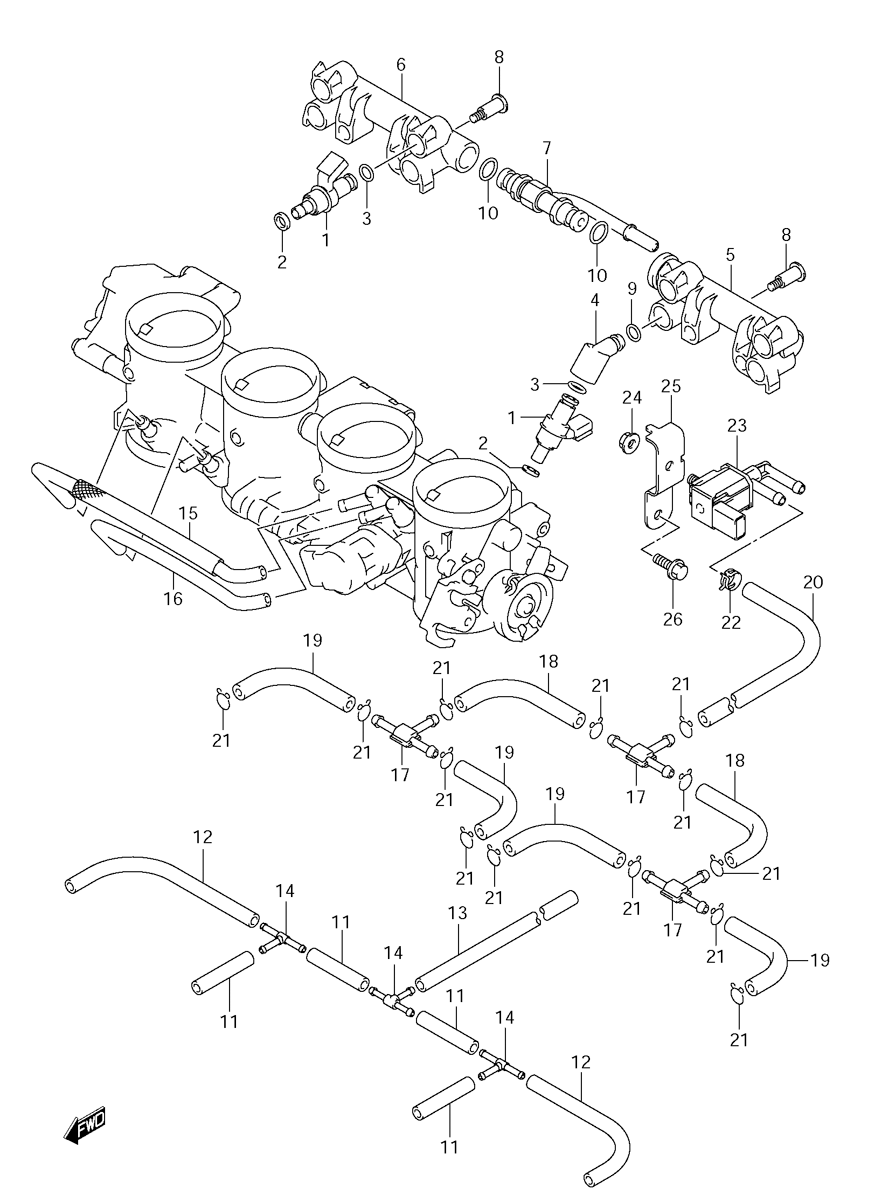

CARBURETOR - THROTTLE BODY FITTINGS для Suzuki GSX-1300R K8 - 2008 года выпуска
-
№АртикулНазвание
-
115710-21H00 INJECTOR ASSEMBLYINJECTOR ASSEMBLY
-
215722-21H00 O RINGO RING
-
315721-21H00 O RINGO RING
-
413473-21H00 PIPE, FUELPIPE, FUEL
-
513474-21H00 PIPE, FUELPIPE, FUEL
-
613474-21H10 PIPE, FUELPIPE, FUEL
-
713473-15H00 PIPE, FUELPIPE, FUEL
-
813601-35F00 SCREWSCREW
-
915721-24F00 O RINGO RING
-
1015721-10G00 O RINGO RING
-
1113697-24F00 HOSE, RUBBER (LENGTH: 35)HOSE, RUBBER (LENGTH: 35)
-
1213697-24F20 HOSE, RUBBER (LENGTH: 100)HOSE, RUBBER (LENGTH: 100)
-
1313697-35F00 HOSE, RUBBER (LENGTH: 170)HOSE, RUBBER (LENGTH: 170)
-
1413471-24F30 T JOINTT JOINT
-
1513680-21H10 TUBE, RUBBERTUBE, RUBBER
-
1613698-21H00 TUBE, RUBBERTUBE, RUBBER
-
1713685-36E50 T JOINT (FOR CALF. ONLY)T JOINT (FOR CALF. ONLY)
-
1813683-21H20 HOSE (FOR CALF. ONLY)HOSE (FOR CALF. ONLY)
-
1913683-21H10 HOSE (FOR CALF. ONLY)HOSE (FOR CALF. ONLY)
-
2013683-15H00 HOSE (FOR CALF. ONLY)HOSE (FOR CALF. ONLY)
-
2113693-24F00 CLIP (FOR CALF. ONLY)CLIP (FOR CALF. ONLY)
-
2209401-10411 CLIP (FOR CALF. ONLY)CLIP (FOR CALF. ONLY)
-
2318117-52G10 VALVE, CANISTER PURGE (FOR CALF. ONLY)VALVE, CANISTER PURGE (FOR CALF. ONLY)
-
2408316-1006B NUT (FOR CALF. ONLY)NUT (FOR CALF. ONLY)
-
2513165-15H00 BRACKET (FOR CALF. ONLY)BRACKET (FOR CALF. ONLY)
-
2601550-0610A BOLT (FOR CALF. ONLY)BOLT (FOR CALF. ONLY)
