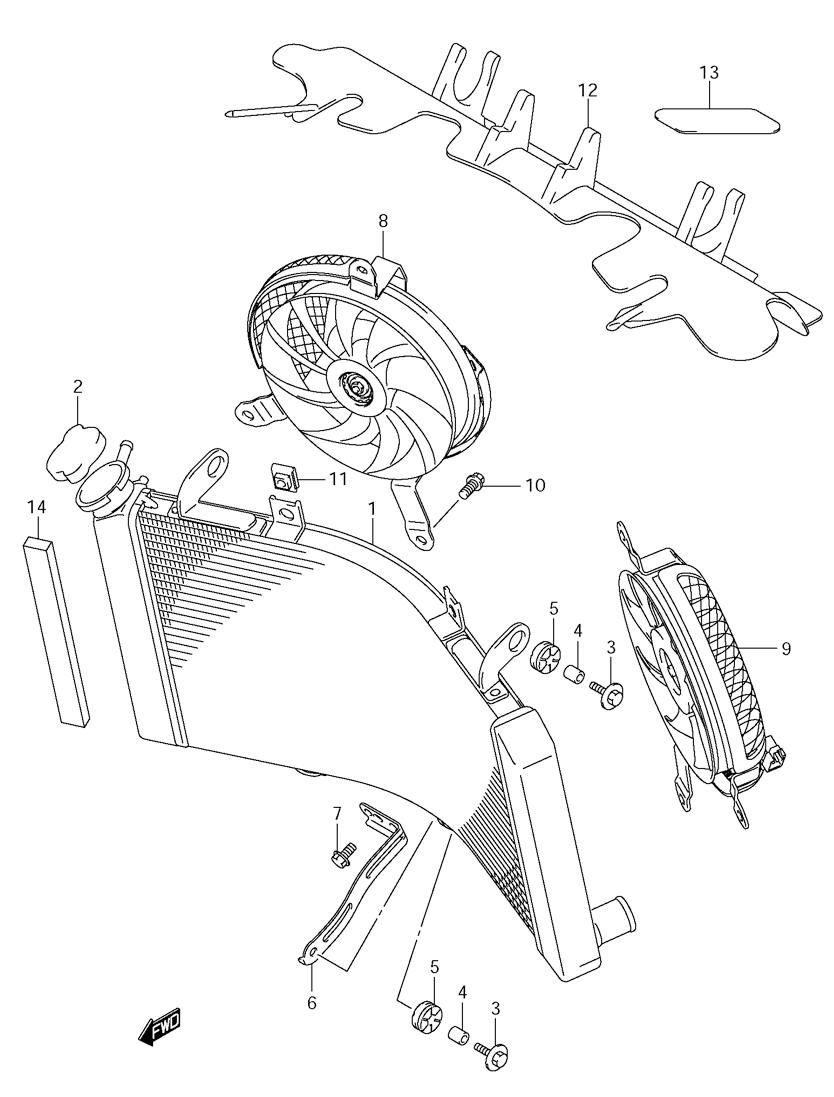

RADIATOR для Suzuki GSX-1300R K8 - 2008 года выпуска
-
№АртикулНазвание
-
117710-15H00 RADIATOR ASSEMBLY, WATERRADIATOR ASSEMBLY, WATER
-
217730-12C20 CAPCAP
-
309118-06097 BOLT (6X25)BOLT (6X25)
-
409180-06290 SPACERSPACER
-
509320-10051 CUSHIONCUSHION
-
617750-24F00 BRACKET, RADIATOR LOWERBRACKET, RADIATOR LOWER
-
701550-0612A BOLTBOLT
-
817810-15H00 FAN ASSEMBLY, RADIATOR RIGHT HANDFAN ASSEMBLY, RADIATOR RIGHT HAND
-
917820-15H00 FAN ASSEMBLY, RADIATOR LEFT HANDFAN ASSEMBLY, RADIATOR LEFT HAND
-
1017711-40F00 BOLTBOLT
-
1117712-40F00 NUTNUT
-
1217771-15H00 SHIELD, HEATSHIELD, HEAT
-
1363131-10F00 TAPE, HEAT SHIELDTAPE, HEAT SHIELD
-
1494476-17H00 CUSHION, RESERVOIR TANKCUSHION, RESERVOIR TANK
