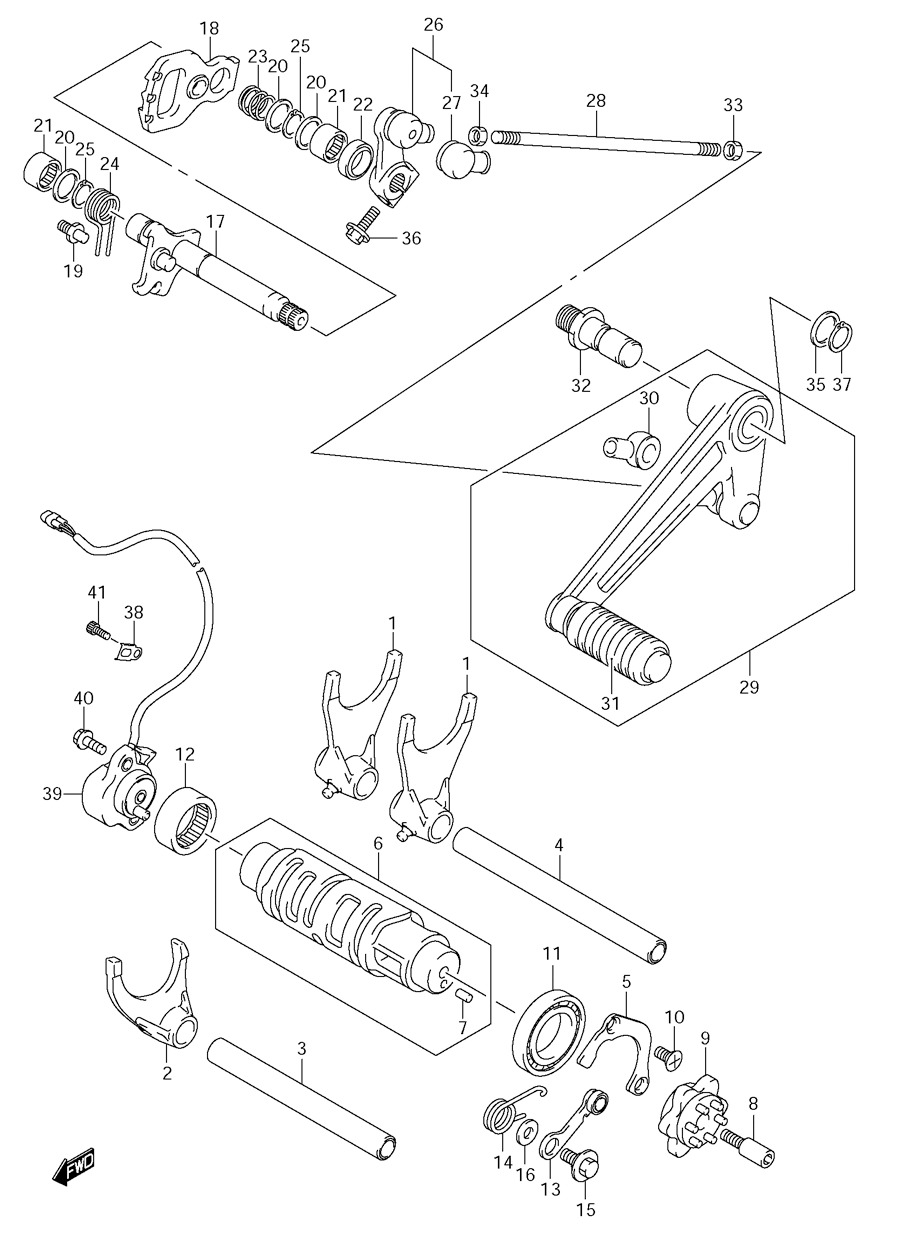

GEAR SHIFTING для Suzuki GSX-1300R K8 - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    25211-24F20 FORK, GEAR SHIFT NO.1
    FORK, GEAR SHIFT NO.1
  • 2
    25231-24F20 FORK, GEAR SHIFT NO.3
    FORK, GEAR SHIFT NO.3
  • 3
    25411-24F00 SHAFT, GEAR SHIFT NO.2
    SHAFT, GEAR SHIFT NO.2
  • 4
    25411-38B01 SHAFT, GEAR SHIFT NO.1
    SHAFT, GEAR SHIFT NO.1
  • 5
    24741-24F10 RETAINER, SHIFT CAM BEARING
    RETAINER, SHIFT CAM BEARING
  • 6
    25310-24F00 CAM, GEAR SHIFT
    CAM, GEAR SHIFT
  • 7
    04221-04089 ...PIN, SHIFT CAM PLATE
    ...PIN, SHIFT CAM PLATE
  • 8
    25312-42F01 STOPPER, SHIFT CAM DRIVE PLAT
    STOPPER, SHIFT CAM DRIVE PLAT
  • 9
    25381-13E00 PLATE, GEAR SHIFT CAM
    PLATE, GEAR SHIFT CAM
  • 10
    09126-06011 SCREW, SHIFT CAM BEARING
    SCREW, SHIFT CAM BEARING
  • 11
    09262-25006 BEARING, GEAR SHIFT CAM
    BEARING, GEAR SHIFT CAM
  • 12
    09263-25018 BEARING, GEAR SHIFT, CAM, RIGHT
    BEARING, GEAR SHIFT, CAM, RIGHT
  • 13
    25350-24F00 STOPPER, SHIFT CAM
    STOPPER, SHIFT CAM
  • 14
    25355-24F00 SPRING, SHIFT CAM STOPPER
    SPRING, SHIFT CAM STOPPER
  • 15
    09111-06041 BOLT, SHIFT CAM STOPPER
    BOLT, SHIFT CAM STOPPER
  • 16
    08211-06141 WASHER, CAM STOPPER THRUST
    WASHER, CAM STOPPER THRUST
  • 17
    25510-15H00 SHAFT, GEAR
    SHAFT, GEAR
  • 18
    25512-06G10 PLATE, GEAR SHIFT CAM DRIVE
    PLATE, GEAR SHIFT CAM DRIVE
  • 19
    25671-01011 STOPPER, GEAR SHIFT ARM
    STOPPER, GEAR SHIFT ARM
  • 20
    09181-14167 WASHER, GEAR SHIFT SHAFT, RIGHT
    WASHER, GEAR SHIFT SHAFT, RIGHT
  • 21
    09263-14027 BEARING, GEAR SHIFT SHAFT
    BEARING, GEAR SHIFT SHAFT
  • 22
    09283-14006 SEAL, GEAR SHIFT SHAFT OIL
    SEAL, GEAR SHIFT SHAFT OIL
  • 23
    09440-17009 SPRING, GEAR SHIFT PLATE
    SPRING, GEAR SHIFT PLATE
  • 24
    09444-20001 SPRING, SHIFT SHAFT RETURN
    SPRING, SHIFT SHAFT RETURN
  • 25
    08331-3114A CIRCLIP, GEAR SHIFT SHAFT
    CIRCLIP, GEAR SHIFT SHAFT
  • 26
    25520-40F00 ARM, GEAR SHIFT LINK
    ARM, GEAR SHIFT LINK
  • 27
    25526-47000 ...COVER, DUST
    ...COVER, DUST
  • 28
    25525-19F00 ROD, GEAR SHIFT LINK (LENGTH: 150)
    ROD, GEAR SHIFT LINK (LENGTH: 150)
  • 29
    25600-17G00 LEVER ASSEMBLY, GEAR SHIFT
    LEVER ASSEMBLY, GEAR SHIFT
  • 30
    25526-47000 ...COVER, DUST
    ...COVER, DUST
  • 31
    25652-20C00 ...RUBBER, GEAR SHIFT PEDAL
    ...RUBBER, GEAR SHIFT PEDAL
  • 32
    25617-03F10 SHAFT, GEAR SHIFT LEVER
    SHAFT, GEAR SHIFT LEVER
  • 33
    09140-06020 NUT, GEAR SHIFT LINK ROD
    NUT, GEAR SHIFT LINK ROD
  • 34
    09140-06025 NUT, GEAR SHIFT LINK ROD, LEFT
    NUT, GEAR SHIFT LINK ROD, LEFT
  • 35
    09160-12011 WASHER, GEAR SHIFT LEVER
    WASHER, GEAR SHIFT LEVER
  • 36
    01500-0625A BOLT, GEAR SHIFT
    BOLT, GEAR SHIFT
  • 37
    08331-3112A CIRCLIP, GEAR SHIFT LEVER
    CIRCLIP, GEAR SHIFT LEVER
  • 38
    31497-45000 CLAMP, GR POSN SNSR LEAD
    CLAMP, GR POSN SNSR LEAD
  • 39
    37730-15H00 SENSOR ASSEMBLY, GEAR POSITION
    SENSOR ASSEMBLY, GEAR POSITION
  • 40
    07120-0516A BOLT, GR POSN SNSR
    BOLT, GR POSN SNSR
  • 41
    07130-0510B BOLT, CLAMP
    BOLT, CLAMP
