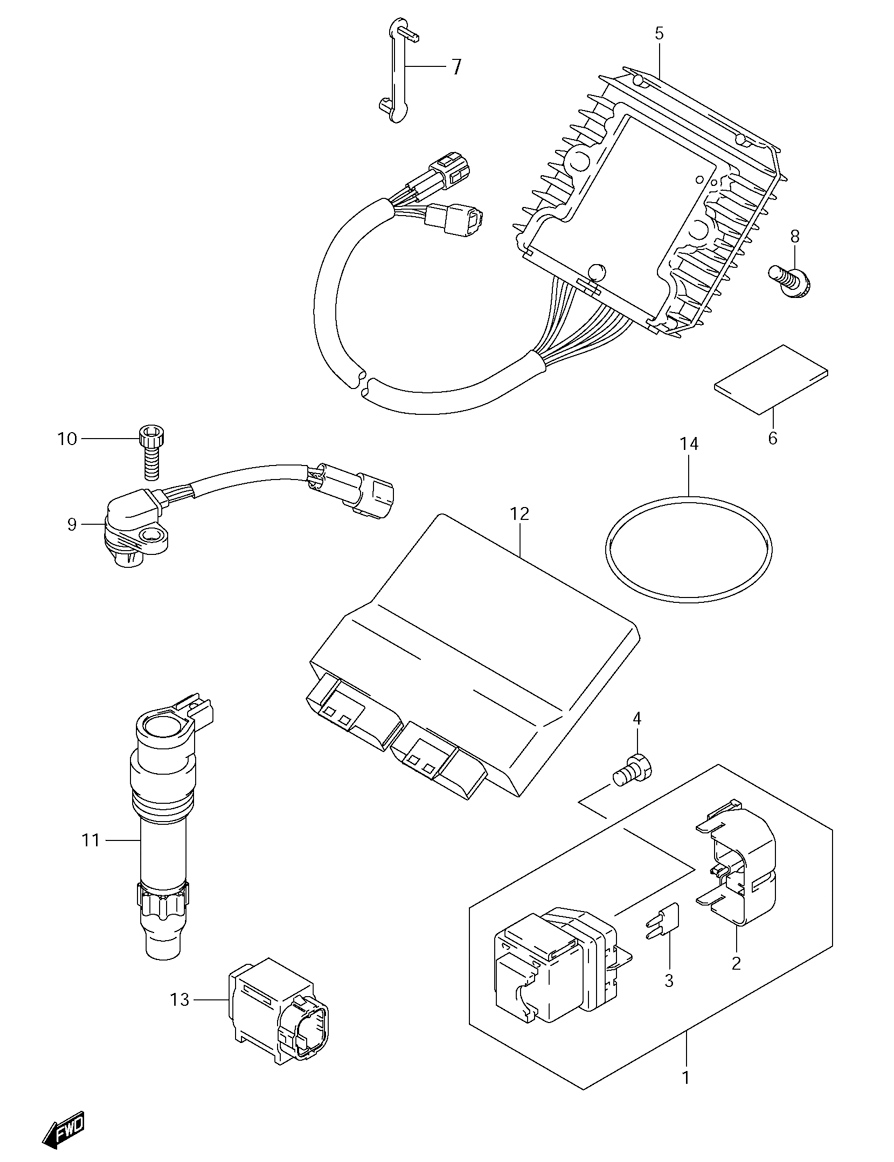

ELECTRICAL для Suzuki GSX-1300R K8 - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    31800-44G00 RELAY ASSEMBLY, STARTING MOTOR
    RELAY ASSEMBLY, STARTING MOTOR
  • 2
    31861-38G00 ...COVER, RECTIFIER
    ...COVER, RECTIFIER
  • 3
    09481-30501 ...FUSE (30A)
    ...FUSE (30A)
  • 4
    09128-06013 BOLT, STARTING MOTOR (6X8)
    BOLT, STARTING MOTOR (6X8)
  • 5
    32800-15H10 RECTIFIER ASSEMBLY
    RECTIFIER ASSEMBLY
  • 6
    33652-36000 PROTECTOR (30X50X3)
    PROTECTOR (30X50X3)
  • 7
    36651-48E00 CLAMP, RECTIFIER LEAD
    CLAMP, RECTIFIER LEAD
  • 8
    02162-0625A BOLT, RECTIFIER
    BOLT, RECTIFIER
  • 9
    33220-01H00 SENSOR ASSEMBLY, CAM POSITION
    SENSOR ASSEMBLY, CAM POSITION
  • 10
    07130-0616A BOLT, CAM POSITION SENSOR
    BOLT, CAM POSITION SENSOR
  • 11
    33410-24F10 COIL ASSEMBLY, IGNITION
    COIL ASSEMBLY, IGNITION
  • 12
    32920-15H10 CONTROL UNIT, FI
    CONTROL UNIT, FI
  • 12
    32920-15H20 CONTROL UNIT, FI (FOR CALF. ONLY)
    CONTROL UNIT, FI (FOR CALF. ONLY)
  • 13
    33960-06G10 SENSOR ASSEMBLY, FUEL CUT
    SENSOR ASSEMBLY, FUEL CUT
  • 14
    09280-76005 BAND, FI (DIAMETER: 3.5,INSIDE DIAMETER: 76)
    BAND, FI (DIAMETER: 3.5,INSIDE DIAMETER: 76)
