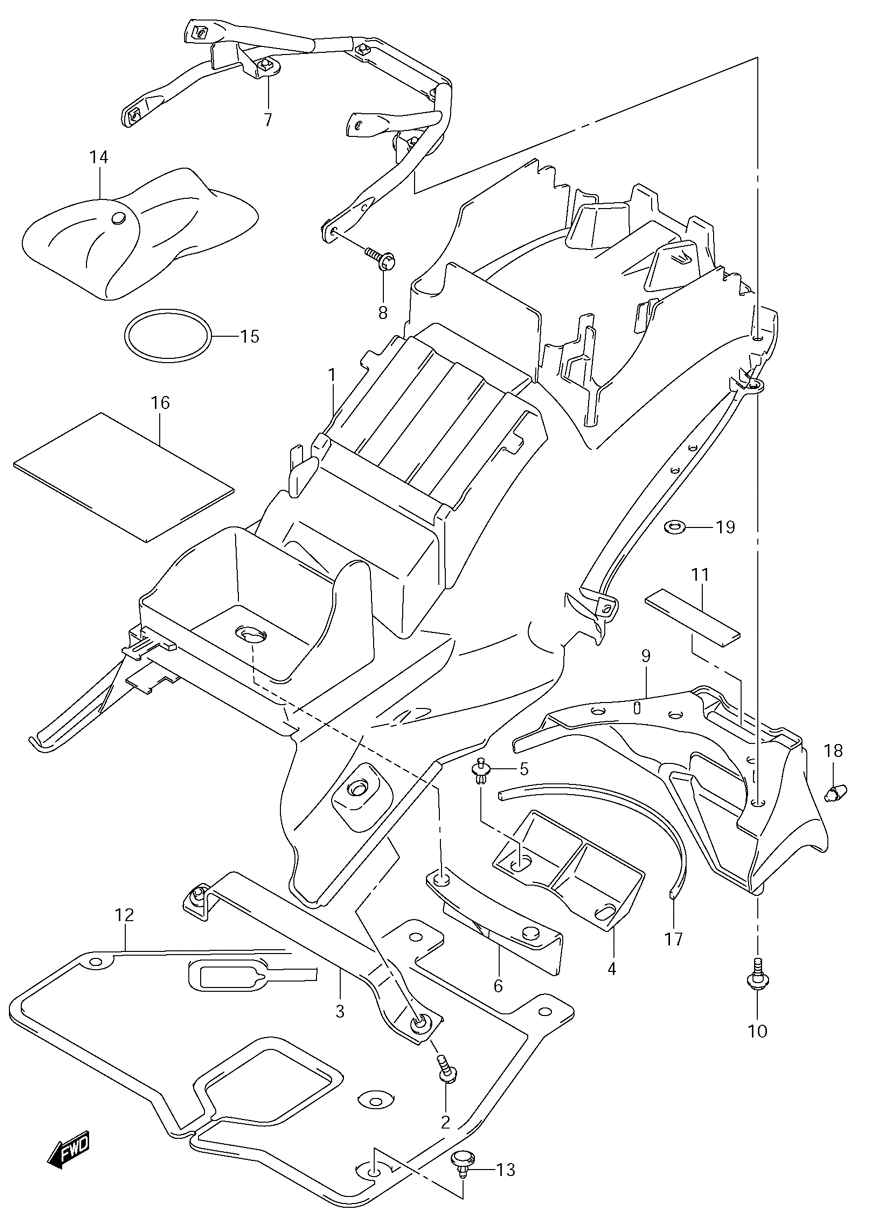

FENDER - REAR для Suzuki GSX-1300R K8 - 2008 года выпуска`
-
№АртикулНазвание
-
163111-15H00-291 FENDER, REAR (BLACK) (291)FENDER, REAR (BLACK) (291)
-
201550-0616A BOLTBOLT
-
363130-15H00 BRACKET, FRONTBRACKET, FRONT
-
463411-24F00 MUDGUARD, REARMUDGUARD, REAR
-
509409-07333 CLIPCLIP
-
663421-24F00 MUDGUARD, REAR UPPERMUDGUARD, REAR UPPER
-
763120-15H00 BRACKET, REAR FENDERBRACKET, REAR FENDER
-
801550-0616A BOLTBOLT
-
963112-15H00-291 FENDER, REAR (BLACK) (291)FENDER, REAR (BLACK) (291)
-
1009111-06099 BOLTBOLT
-
1133652-49000 CUSHIONCUSHION
-
1247851-15H00 SHIELD, INNERSHIELD, INNER
-
1394479-35F00 CLIPCLIP
-
1409800-21039 TOOL ASSEMBLYTOOL ASSEMBLY
-
1509280-61002 O RINGO RING
-
1663113-15H00 CUSHION, FENDERCUSHION, FENDER
-
1763192-16GA0 CUSHION, COVERCUSHION, COVER
-
1809321-06028 CUSHION, LICENSE PLATECUSHION, LICENSE PLATE
-
1909160-06126 WASHER, SIDE BRACKETWASHER, SIDE BRACKET
