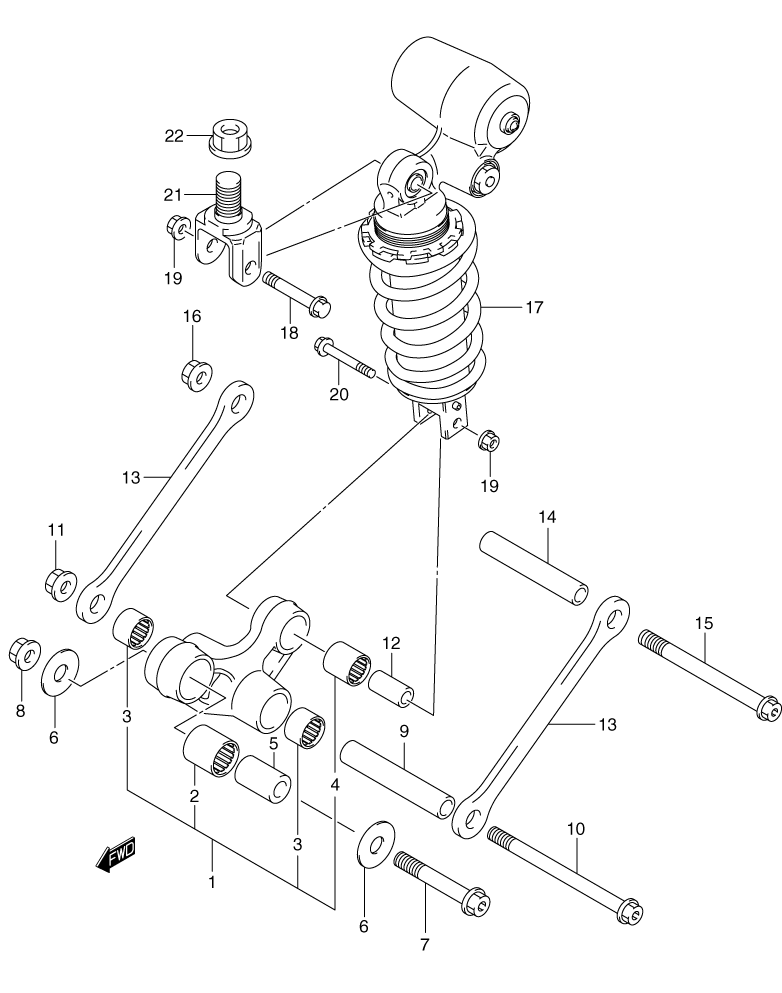

SUSPENSION - CUSHION LEVER W/ SHOCK для Suzuki GSX-R750 K3 - 2003 года выпуска`
-
№АртикулНазвание
-
162600-35810 LEVER SET, CUSHION (REAR)LEVER SET, CUSHION (REAR)
-
209263-20073 ...BEARING (FRONT) (20X27X30)...BEARING (FRONT) (20X27X30)
-
309263-17039 ...BEARING (CENTER) (17X24X20)...BEARING (CENTER) (17X24X20)
-
409263-17034 ...BEARING (REAR) (17X24X26)...BEARING (REAR) (17X24X26)
-
562684-12C00 SPACER (FRONT)SPACER (FRONT)
-
609160-12037 WASHERWASHER
-
762658-35F00 BOLT (FRONT)BOLT (FRONT)
-
808319-31128 NUTNUT
-
962626-33D00 SPACER (CENTER)SPACER (CENTER)
-
1062621-35F00 BOLT (CENTER)BOLT (CENTER)
-
1108319-31128 NUTNUT
-
1262684-40A10 SPACER (REAR)SPACER (REAR)
-
1362641-35F00 ROD, CUSHION LEVER (REAR)ROD, CUSHION LEVER (REAR)
-
1462626-33D00 SPACER, RODSPACER, ROD
-
1562621-35F00 BOLT, RODBOLT, ROD
-
1608319-31128 NUTNUT
-
17-162100-35F10 ABSORBER ASSY., SHOCK (REAR) (US)ABSORBER ASSY., SHOCK (REAR) (US)
-
17-262100-35F00 ABSORBER ASSY., SHOCK (REAR) (CANADA)ABSORBER ASSY., SHOCK (REAR) (CANADA)
-
1809103-10143 BOLT, (UPPE0R (10X55)BOLT, (UPPE0R (10X55)
-
1908319-31107 NUTNUT
-
2009103-10143 BOLT (LOWER/(10X55))BOLT (LOWER/(10X55))
-
2162993-35F00 BRACKET, ABSORBERBRACKET, ABSORBER
-
2209159-20006 NUTNUT
