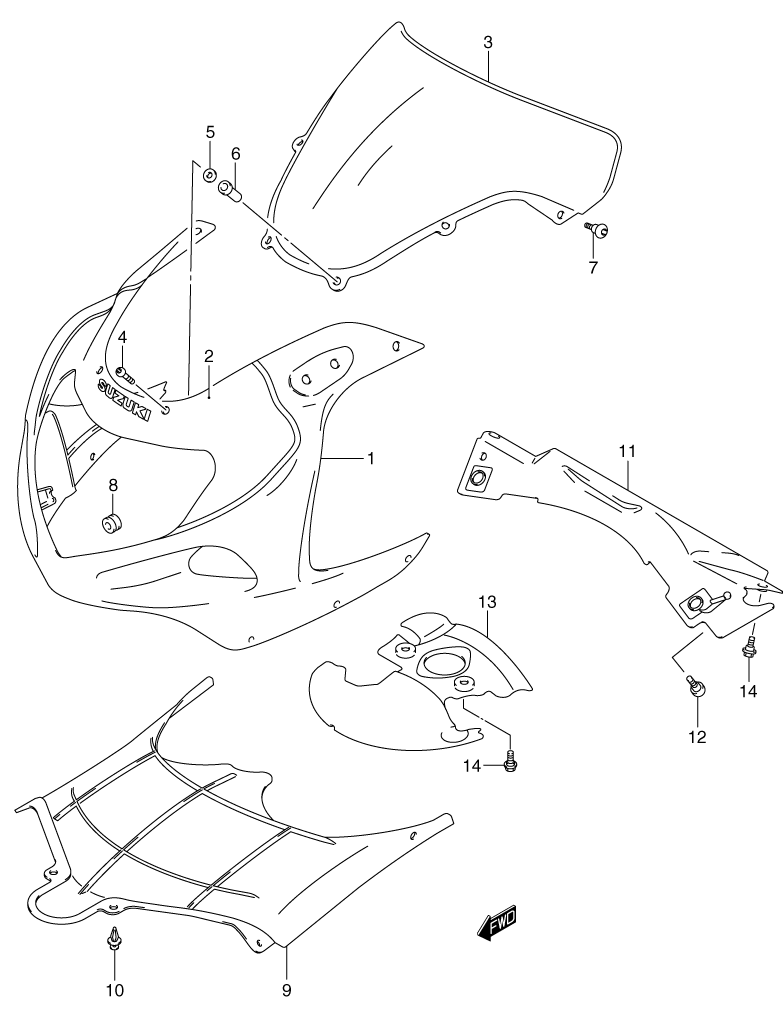

COWLING BODY для Suzuki GSX-R750 K3 - 2003 года выпуска

  • №
    Артикул
    Название
  • 1-1
    94410-35F30-YBA COWLING, BODY (YBA - BLUE) (FOR LR5 - BLUE/WHITE)
    COWLING, BODY (YBA - BLUE) (FOR LR5 - BLUE/WHITE)
  • 1-2
    94410-35F30-YD8 COWLING, BODY (YU8 - GRAY) (FOR CT5 - SILVER/BLACK)
    COWLING, BODY (YU8 - GRAY) (FOR CT5 - SILVER/BLACK)
  • 1-3
    94410-35F30-YU9 COWLING, BODY (YU9 - YELLOW) (FOR KU2 - YELLOW/BLACK)
    COWLING, BODY (YU9 - YELLOW) (FOR KU2 - YELLOW/BLACK)
  • 2-1
    68275-35F30-LW3 ...TAPE (FRONT) (LW3 - BLUE/BLACK/WHITE) (FOR LR5 - BLUE/WHITE)
    ...TAPE (FRONT) (LW3 - BLUE/BLACK/WHITE) (FOR LR5 - BLUE/WHITE)
  • 2-2
    68275-35F30-CT5 ...TAPE (FRONT) (CT5 - SILVER/BLACK) (FOR CT5 - SILVER/BLACK)
    ...TAPE (FRONT) (CT5 - SILVER/BLACK) (FOR CT5 - SILVER/BLACK)
  • 2-3
    68275-35F30-LN5 ...TAPE (FRONT) (LN5 - SILVER/YELLOW/BLACK) (FOR KU2 - YELLOW/BLACK)
    ...TAPE (FRONT) (LN5 - SILVER/YELLOW/BLACK) (FOR KU2 - YELLOW/BLACK)
  • 3
    94611-35F00 WINDSCREEN
    WINDSCREEN
  • 4
    09139-05025 SCREW
    SCREW
  • 5
    08322-01053 WASHER
    WASHER
  • 6
    09159-05019 NUT
    NUT
  • 7
    09139-05055 SCREW (REAR)
    SCREW (REAR)
  • 8
    09320-08028 CUSHION
    CUSHION
  • 9
    94419-35F00 COVER, BODY COWL
    COVER, BODY COWL
  • 10
    09409-06314-5PK CLIP, LID (BLACK)
    CLIP, LID (BLACK)
  • 11
    94457-35F00 COVER, COWL (FRONT) (LOWER)
    COVER, COWL (FRONT) (LOWER)
  • 12
    09139-05073 BOLT, NO.1
    BOLT, NO.1
  • 13
    94458-35F00 COVER, BRACKET
    COVER, BRACKET
  • 14
    63161-43E00 BOLT, NO.2
    BOLT, NO.2
