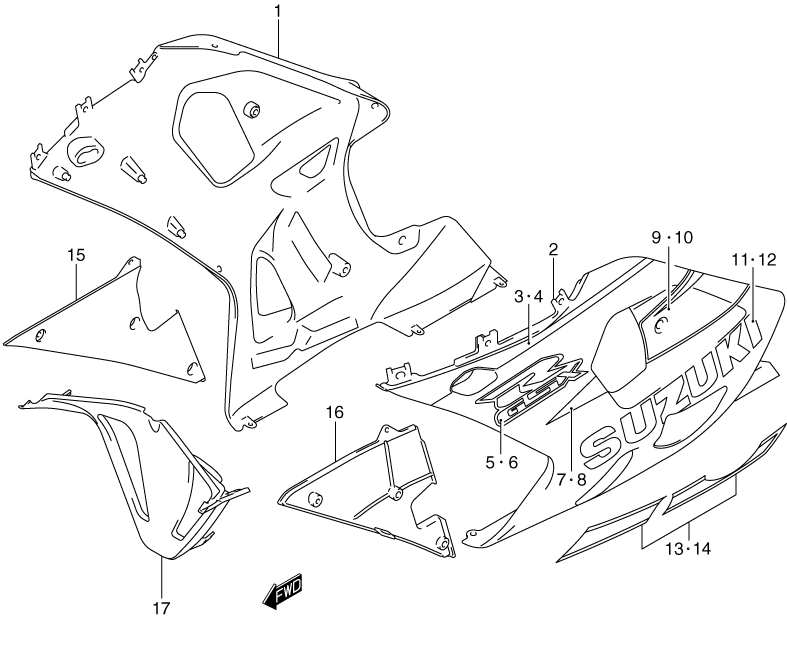

COWLING - UNDER BODY для Suzuki GSX-R750 K3 - 2003 года выпуска

  • №
    Артикул
    Название
  • 1-1
    94407-35F40-LR6 UNDER COWL ASSY. - RIGHT (LR6 - BLACK/BLUE) (FOR LR5 - BLUE/WHITE)
    UNDER COWL ASSY. - RIGHT (LR6 - BLACK/BLUE) (FOR LR5 - BLUE/WHITE)
  • 1-2
    94407-35F40-LA1 UNDER COWL ASSY. - RIGHT (LA1 - SILVER/GRAY) (FOR CT5 - SILVER/BLACK)
    UNDER COWL ASSY. - RIGHT (LA1 - SILVER/GRAY) (FOR CT5 - SILVER/BLACK)
  • 1-3
    94407-35F40-LR7 UNDER COWL ASSY. - RIGHT (LR7 - GRAY/YELLOW) (FOR KU2 - YELLOW/BLACK)
    UNDER COWL ASSY. - RIGHT (LR7 - GRAY/YELLOW) (FOR KU2 - YELLOW/BLACK)
  • 2-1
    94408-35F40-LR6 UNDER COWL ASSY. - LEFT (LR6 - BLACK/BLUE) (FOR LR5 - BLUE/WHITE)
    UNDER COWL ASSY. - LEFT (LR6 - BLACK/BLUE) (FOR LR5 - BLUE/WHITE)
  • 2-2
    94408-35F40-LA1 UNDER COWL ASSY. - LEFT (LA1 - SILVER/GRAY) (FOR CT5 - SILVER/BLACK)
    UNDER COWL ASSY. - LEFT (LA1 - SILVER/GRAY) (FOR CT5 - SILVER/BLACK)
  • 2-3
    94408-35F40-LR7 UNDER COWL ASSY. - LEFT (LR7 - GRAY/YELLOW) (FOR KU2 - YELLOW/BLACK)
    UNDER COWL ASSY. - LEFT (LR7 - GRAY/YELLOW) (FOR KU2 - YELLOW/BLACK)
  • 3-1
    68180-35F40-LR5 ...TAPE, UPPER - RIGHT (LR5 - BLUE/WHITE) (FOR LR5 - BLUE/WHITE)
    ...TAPE, UPPER - RIGHT (LR5 - BLUE/WHITE) (FOR LR5 - BLUE/WHITE)
  • 3-2
    68180-35F40-CT5 ...TAPE, UPPER - RIGHT (CT5 - SILVER/BLACK) (FOR CT5 - SILVER/BLACK)
    ...TAPE, UPPER - RIGHT (CT5 - SILVER/BLACK) (FOR CT5 - SILVER/BLACK)
  • 3-3
    68180-35F40-KU2 ...TAPE, UPPER - RIGHT (KU2 - YELLOW/BLACK) (FOR KU2 - YELLOW/BLACK)
    ...TAPE, UPPER - RIGHT (KU2 - YELLOW/BLACK) (FOR KU2 - YELLOW/BLACK)
  • 4-1
    68190-35F40-LR5 ...TAPE, UPPER - LEFT (LR5 - BLUE/WHITE) (FOR LR5 - BLUE/WHITE)
    ...TAPE, UPPER - LEFT (LR5 - BLUE/WHITE) (FOR LR5 - BLUE/WHITE)
  • 4-2
    68190-35F40-CT5 ...TAPE, UPPER - LEFT (CT5 - SILVER/BLACK) (FOR CT5 - SILVER/BLACK)
    ...TAPE, UPPER - LEFT (CT5 - SILVER/BLACK) (FOR CT5 - SILVER/BLACK)
  • 4-3
    68190-35F40-KU2 ...TAPE, UPPER - LEFT (KU2 - YELLOW/BLACK) (FOR KU2 - YELLOW/BLACK)
    ...TAPE, UPPER - LEFT (KU2 - YELLOW/BLACK) (FOR KU2 - YELLOW/BLACK)
  • 5-1
    68181-35F30-LW7 ...TAPE, "GSXR" (RIGHT) (LW7 - ORANGE/WHITE/BLACK) (FOR LR5 - BLUE/WHITE)
    ...TAPE, "GSXR" (RIGHT) (LW7 - ORANGE/WHITE/BLACK) (FOR LR5 - BLUE/WHITE)
  • 5-2
    68181-35F30-LW1 ...TAPE, "GSXR" (RIGHT) (LW1 - SILVER/BLACK/ORANGE) (FOR CT5 - SILVER/BLACK, KU2 - YELLOW/BLACK)
    ...TAPE, "GSXR" (RIGHT) (LW1 - SILVER/BLACK/ORANGE) (FOR CT5 - SILVER/BLACK, KU2 - YELLOW/BLACK)
  • 6-1
    68191-35F30-LW7 ...TAPE, "GSXR" (LEFT) (LW7 - ORANGE/WHITE/BLACK) (FOR LR5 - BLUE/WHITE)
    ...TAPE, "GSXR" (LEFT) (LW7 - ORANGE/WHITE/BLACK) (FOR LR5 - BLUE/WHITE)
  • 6-2
    68191-35F30-LW1 ...TAPE, "GSXR" (LEFT) (LW1 - SILVER/BLACK/ORANGE) (FOR CT5 - SILVER/BLACK, KU2 - YELLOW/BLACK)
    ...TAPE, "GSXR" (LEFT) (LW1 - SILVER/BLACK/ORANGE) (FOR CT5 - SILVER/BLACK, KU2 - YELLOW/BLACK)
  • 7-1
    68185-35F50-YBD ...TAPE, CENTER FRONT - RIGHT (YBD - WHITE) (FOR LR5 - BLUE/WHITE)
    ...TAPE, CENTER FRONT - RIGHT (YBD - WHITE) (FOR LR5 - BLUE/WHITE)
  • 7-2
    68185-35F50-019 ...TAPE, CENTER FRONT - RIGHT (019 - BLACK) (FOR CT5 - SILVER/BLACK, KU2 - YELLOW/BLACK)
    ...TAPE, CENTER FRONT - RIGHT (019 - BLACK) (FOR CT5 - SILVER/BLACK, KU2 - YELLOW/BLACK)
  • 8-1
    68195-35F50-YBD ...TAPE, CENTER FRONT - LEFT (YBD - WHITE) (FOR LR5 - BLUE/WHITE)
    ...TAPE, CENTER FRONT - LEFT (YBD - WHITE) (FOR LR5 - BLUE/WHITE)
  • 8-2
    68195-35F50-019 ...TAPE, CENTER FRONT - LEFT (019 - BLACK) (FOR CT5 - SILVER/BLACK, KU2 - YELLOW/BLACK)
    ...TAPE, CENTER FRONT - LEFT (019 - BLACK) (FOR CT5 - SILVER/BLACK, KU2 - YELLOW/BLACK)
  • 9-1
    68185-35F40-LW8 ...TAPE, CENTER - RIGHT (LW8 - BLUE/WHITE/BLUE) (FOR LR5 - BLUE/WHITE)
    ...TAPE, CENTER - RIGHT (LW8 - BLUE/WHITE/BLUE) (FOR LR5 - BLUE/WHITE)
  • 9-2
    68185-35F40-LW5 ...TAPE, CENTER - RIGHT (LW5 - SILVER/BLACK/GRAY) (FOR CT5 - SILVER/BLACK)
    ...TAPE, CENTER - RIGHT (LW5 - SILVER/BLACK/GRAY) (FOR CT5 - SILVER/BLACK)
  • 9-3
    68185-35F40-LW6 ...TAPE, CENTER - RIGHT (LW6 - YELLOW/BLACK/GRAY) (FOR KU2 - YELLOW/BLACK)
    ...TAPE, CENTER - RIGHT (LW6 - YELLOW/BLACK/GRAY) (FOR KU2 - YELLOW/BLACK)
  • 10-1
    68195-35F40-LW8 ...TAPE, CENTER - LEFT (LW8 - BLUE/WHITE/BLUE) (FOR LR5 - BLUE/WHITE)
    ...TAPE, CENTER - LEFT (LW8 - BLUE/WHITE/BLUE) (FOR LR5 - BLUE/WHITE)
  • 10-2
    68195-35F40-LW5 ...TAPE, CENTER - LEFT (LW5 - SILVER/BLACK/GRAY) (FOR CT5 - SILVER/BLACK)
    ...TAPE, CENTER - LEFT (LW5 - SILVER/BLACK/GRAY) (FOR CT5 - SILVER/BLACK)
  • 10-3
    68195-35F40-LW6 ...TAPE, CENTER - LEFT (LW6 - YELLOW/BLACK/GRAY) (FOR KU2 - YELLOW/BLACK)
    ...TAPE, CENTER - LEFT (LW6 - YELLOW/BLACK/GRAY) (FOR KU2 - YELLOW/BLACK)
  • 11-1
    68220-39F00-YBD ...EMBLEM, "SUZUKI" (RIGHT) (YBD - WHITE) (FOR LR5 - BLUE/WHITE)
    ...EMBLEM, "SUZUKI" (RIGHT) (YBD - WHITE) (FOR LR5 - BLUE/WHITE)
  • 11-2
    68220-39F00-YD8 ...EMBLEM, "SUZUKI" (RIGHT) (YD8 - SILVER) (FOR CT5 - SILVER/BLACK, KU2 - YELLOW/BLACK)
    ...EMBLEM, "SUZUKI" (RIGHT) (YD8 - SILVER) (FOR CT5 - SILVER/BLACK, KU2 - YELLOW/BLACK)
  • 12-1
    68230-39F00-YBD ...EMBLEM, "SUZUKI" (LEFT) (YBD - WHITE) (FOR LR5 - BLUE/WHITE)
    ...EMBLEM, "SUZUKI" (LEFT) (YBD - WHITE) (FOR LR5 - BLUE/WHITE)
  • 12-2
    68230-39F00-YD8 ...EMBLEM, "SUZUKI" (LEFT) (YD8 - SILVER) (FOR CT5 - SILVER/BLACK, KU2 - YELLOW/BLACK)
    ...EMBLEM, "SUZUKI" (LEFT) (YD8 - SILVER) (FOR CT5 - SILVER/BLACK, KU2 - YELLOW/BLACK)
  • 13-1
    68180-35F50-LW4 ...TAPE SET, LOWER - RIGHT (LW4 - BLACK/WHITE/BLUE) (FOR LR5 - BLUE/WHITE)
    ...TAPE SET, LOWER - RIGHT (LW4 - BLACK/WHITE/BLUE) (FOR LR5 - BLUE/WHITE)
  • 13-2
    68180-35F50-LW5 ...TAPE SET, LOWER - RIGHT (LW5 - SILVER/BLACK/GRAY) (FOR CT5 - SILVER/BLACK)
    ...TAPE SET, LOWER - RIGHT (LW5 - SILVER/BLACK/GRAY) (FOR CT5 - SILVER/BLACK)
  • 13-3
    68180-35F50-LW6 ...TAPE SET, LOWER - RIGHT (LW6 - YELLOW/BLACK/GRAY) (FOR KU2 - YELLOW/BLACK)
    ...TAPE SET, LOWER - RIGHT (LW6 - YELLOW/BLACK/GRAY) (FOR KU2 - YELLOW/BLACK)
  • 14-1
    68190-35F50-LW4 ...TAPE SET, LOWER - LEFT (LW4 - BLACK/WHITE/BLUE) (FOR LR5 - BLUE/WHITE)
    ...TAPE SET, LOWER - LEFT (LW4 - BLACK/WHITE/BLUE) (FOR LR5 - BLUE/WHITE)
  • 14-2
    68190-35F50-LW5 ...TAPE SET, LOWER - LEFT (LW5 - SILVER/BLACK/GRAY) (FOR CT5 - SILVER/BLACK)
    ...TAPE SET, LOWER - LEFT (LW5 - SILVER/BLACK/GRAY) (FOR CT5 - SILVER/BLACK)
  • 14-3
    68190-35F50-LW6 ...TAPE SET, LOWER - LEFT (LW6 - YELLOW/BLACK/GRAY) (FOR KU2 - YELLOW/BLACK)
    ...TAPE SET, LOWER - LEFT (LW6 - YELLOW/BLACK/GRAY) (FOR KU2 - YELLOW/BLACK)
  • 15
    94461-35F00 UNDER COWL, INNER - RIGHT
    UNDER COWL, INNER - RIGHT
  • 16
    94462-35F00 UNDER COWL, INNER - LEFT
    UNDER COWL, INNER - LEFT
  • 17
    94490-35F00 UNDER COWL, CENTER
    UNDER COWL, CENTER
