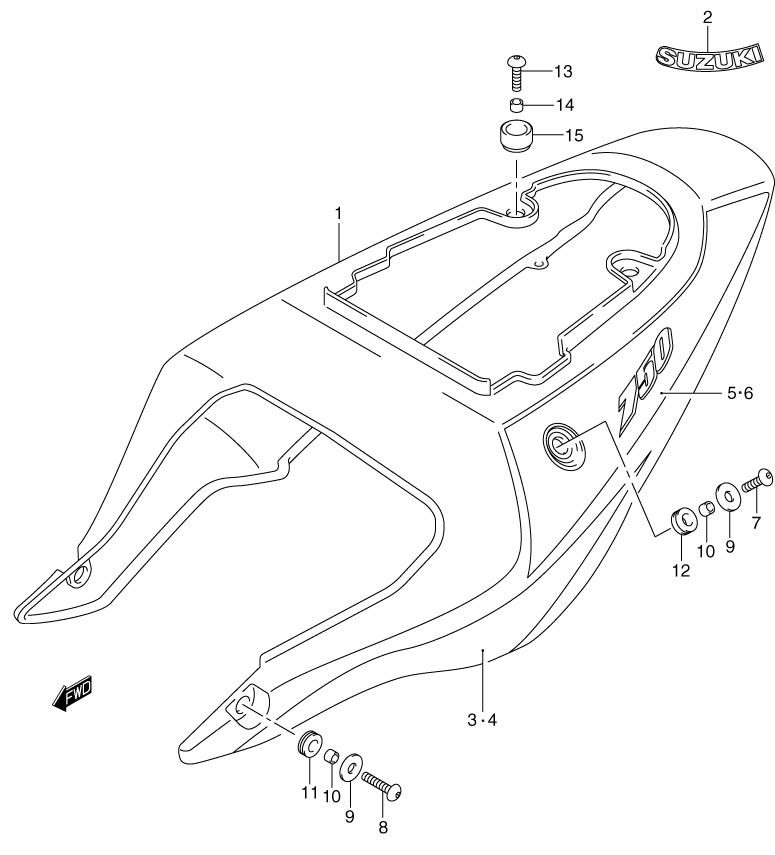

SIDE COVER для Suzuki GSX-R750 K3 - 2003 года выпуска

  • №
    Артикул
    Название
  • 1-1
    47100-35F40-YBD COVER ASSY., FRAME (YBD - WHITE) (FOR LR5 - BLUE/WHITE)
    COVER ASSY., FRAME (YBD - WHITE) (FOR LR5 - BLUE/WHITE)
  • 1-2
    47100-35F40-019 COVER ASSY., FRAME (019 - BLACK) (FOR CT5 - SILVER/BLACK)
    COVER ASSY., FRAME (019 - BLACK) (FOR CT5 - SILVER/BLACK)
  • 1-3
    47100-35F40-1TX COVER ASSY., FRAME (1TX - BLACK) (FOR KU2 - YELLOW/BLACK)
    COVER ASSY., FRAME (1TX - BLACK) (FOR KU2 - YELLOW/BLACK)
  • 2-1
    68131-39F00-019 ...EMBLEM (019 - BLACK) (FOR LR5 - BLUE/WHITE)
    ...EMBLEM (019 - BLACK) (FOR LR5 - BLUE/WHITE)
  • 2-2
    68131-39F00-YD8 ...EMBLEM (YD8 - SILVER) (FOR CT5 - SILVER/BLACK, KU2 - YELLOW/BLACK)
    ...EMBLEM (YD8 - SILVER) (FOR CT5 - SILVER/BLACK, KU2 - YELLOW/BLACK)
  • 3-1
    68135-35F60-YBB ...TAPE (FRONT) (RIGHT) (YBB - BLUE) (FOR LR5 - BLUE/WHITE)
    ...TAPE (FRONT) (RIGHT) (YBB - BLUE) (FOR LR5 - BLUE/WHITE)
  • 3-2
    68135-35F60-YU8 ...TAPE (FRONT) (RIGHT) (YU8 - GRAY) (FOR CT5 - SILVER/BLACK, KU2 - YELLOW/BLACK)
    ...TAPE (FRONT) (RIGHT) (YU8 - GRAY) (FOR CT5 - SILVER/BLACK, KU2 - YELLOW/BLACK)
  • 4-1
    68145-35F60-YBB ...TAPE, (FRONT) (LEFT) (YBB - BLUE) (FOR LR5 - BLUE/WHITE)
    ...TAPE, (FRONT) (LEFT) (YBB - BLUE) (FOR LR5 - BLUE/WHITE)
  • 4-2
    68145-35F60-YU8 ...TAPE (FRONT) (LEFT) (YU8 - GRAY) (FOR CT5 - SILVER/BLACK, KU2 - YELLOW/BLACK)
    ...TAPE (FRONT) (LEFT) (YU8 - GRAY) (FOR CT5 - SILVER/BLACK, KU2 - YELLOW/BLACK)
  • 5-1
    68135-35F70-LV8 ...TAPE (REAR) (RIGHT) (LV8 - BLACK/ORANGE) (FOR LR5 - BLUE/WHITE)
    ...TAPE (REAR) (RIGHT) (LV8 - BLACK/ORANGE) (FOR LR5 - BLUE/WHITE)
  • 5-2
    68135-35F70-CT5 ...TAPE 9REAR) (RIGHT) (CT5 - SILVER/BLACK) (FOR CT5 - SILVER/BLACK)
    ...TAPE 9REAR) (RIGHT) (CT5 - SILVER/BLACK) (FOR CT5 - SILVER/BLACK)
  • 5-3
    68135-35F70-LN5 ...TAPE (REAR) (RIGHT) (LN5 - SILVER/YELLOW/BLACK) (FOR KU2 - YELLOW/BLACK)
    ...TAPE (REAR) (RIGHT) (LN5 - SILVER/YELLOW/BLACK) (FOR KU2 - YELLOW/BLACK)
  • 6-1
    68145-35F70-LV8 ...TAPE (REAR) (LEFT) (LV8 - BLACK/ORANGE) (FOR LR5 - BLUE/WHITE)
    ...TAPE (REAR) (LEFT) (LV8 - BLACK/ORANGE) (FOR LR5 - BLUE/WHITE)
  • 6-2
    68145-35F70-CT5 ...TAPE (REAR) (LEFT) (CT5 - SILVER/BLACK) (FOR CT5 - SILVER/BLACK)
    ...TAPE (REAR) (LEFT) (CT5 - SILVER/BLACK) (FOR CT5 - SILVER/BLACK)
  • 6-3
    68145-35F70-LN5 ...TAPE (REAR) (LEFT) (LN5 - SILVER/YELLOW/BLACK) (FOR KU2 - YELLOW/BLACK)
    ...TAPE (REAR) (LEFT) (LN5 - SILVER/YELLOW/BLACK) (FOR KU2 - YELLOW/BLACK)
  • 7
    09139-06029 SCREW, (SIDE)
    SCREW, (SIDE)
  • 8
    09139-06042 SCREW (FRONT)
    SCREW (FRONT)
  • 9
    09160-06047 WASHER
    WASHER
  • 10
    09180-06283 SPACER
    SPACER
  • 11
    47161-35F00 CUSHION (FRONT)
    CUSHION (FRONT)
  • 12
    47161-35F10 CUSHION, (SIDE)
    CUSHION, (SIDE)
  • 13
    09139-06029 SCREW (UPPER)
    SCREW (UPPER)
  • 14
    09180-06286 SPACER
    SPACER
  • 15
    09320-10045 CUSHION (UPPER)
    CUSHION (UPPER)
