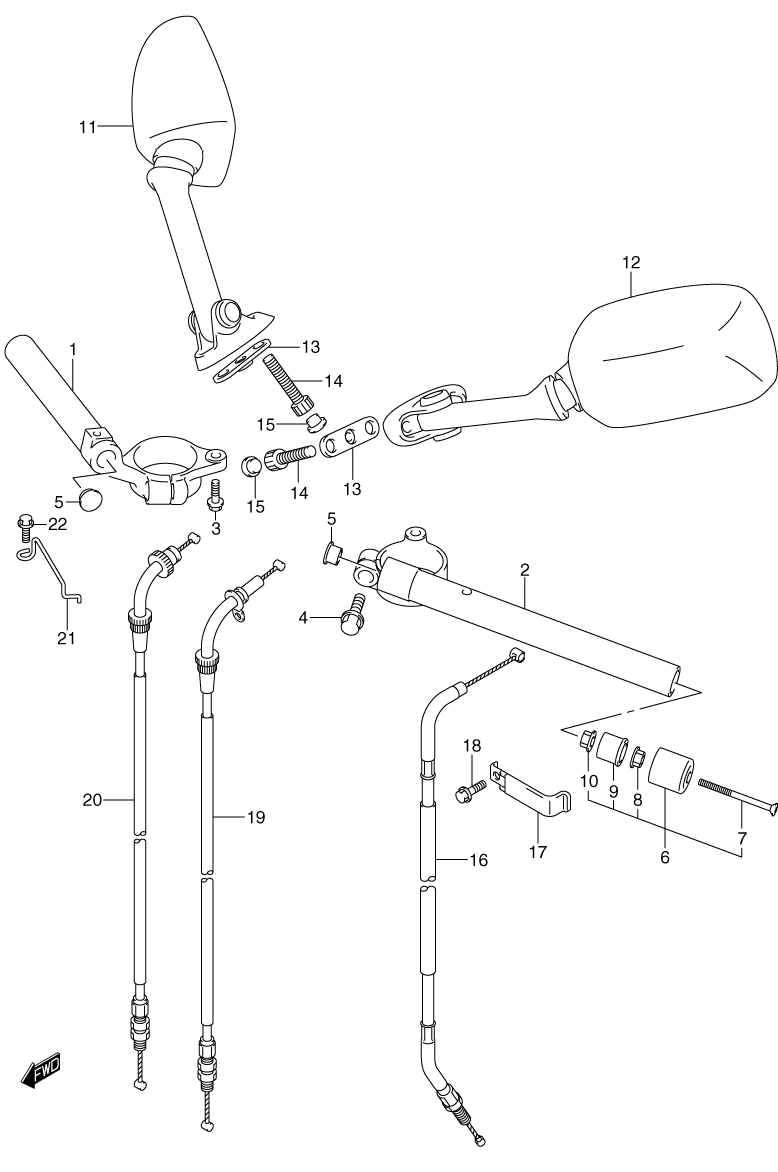

HANDLEBAR W/ CABLES - MIRRORS для Suzuki GSX-R750 K3 - 2003 года выпуска
-
№АртикулНазвание
-
156111-35F02 HANDLEBAR (RIGHT)HANDLEBAR (RIGHT)
-
256151-35F01 HANDLEBAR (LEFT)HANDLEBAR (LEFT)
-
301550-06203 BOLT, SETBOLT, SET
-
456123-35F00 BOLT, HANDLEBARBOLT, HANDLEBAR
-
509250-14006 CAPCAP
-
656200-35830 BALANCER SET, HANDLEBARBALANCER SET, HANDLEBAR
-
702122-06603 ...SCREW...SCREW
-
808316-10083 ...NUT...NUT
-
956272-44500 ...EXPANDER...EXPANDER
-
1009159-06024 ...NUT...NUT
-
1156500-40F10 MIRROR ASSY., VIEW (REAR/RIGHT)MIRROR ASSY., VIEW (REAR/RIGHT)
-
1256600-40F10 MIRROR ASSY., VIEW (REAR/LEFT)MIRROR ASSY., VIEW (REAR/LEFT)
-
1394576-24F00 CUSHIONCUSHION
-
1407130-06303 BOLTBOLT
-
1509250-05009 CAPCAP
-
1658200-35F10 CABLE ASSY., CLUTCHCABLE ASSY., CLUTCH
-
1736651-35F01 GUIDE, CLUTCH CABLEGUIDE, CLUTCH CABLE
-
1801550-05123 BOLTBOLT
-
1958300-35F20 CABLE ASSY., THROTTLE NO.1CABLE ASSY., THROTTLE NO.1
-
2058300-35F30 CABLE ASSY., THROTTLE NO.2CABLE ASSY., THROTTLE NO.2
-
2158621-35F10 GUIDE, CABLEGUIDE, CABLE
-
2201550-06163 BOLTBOLT
