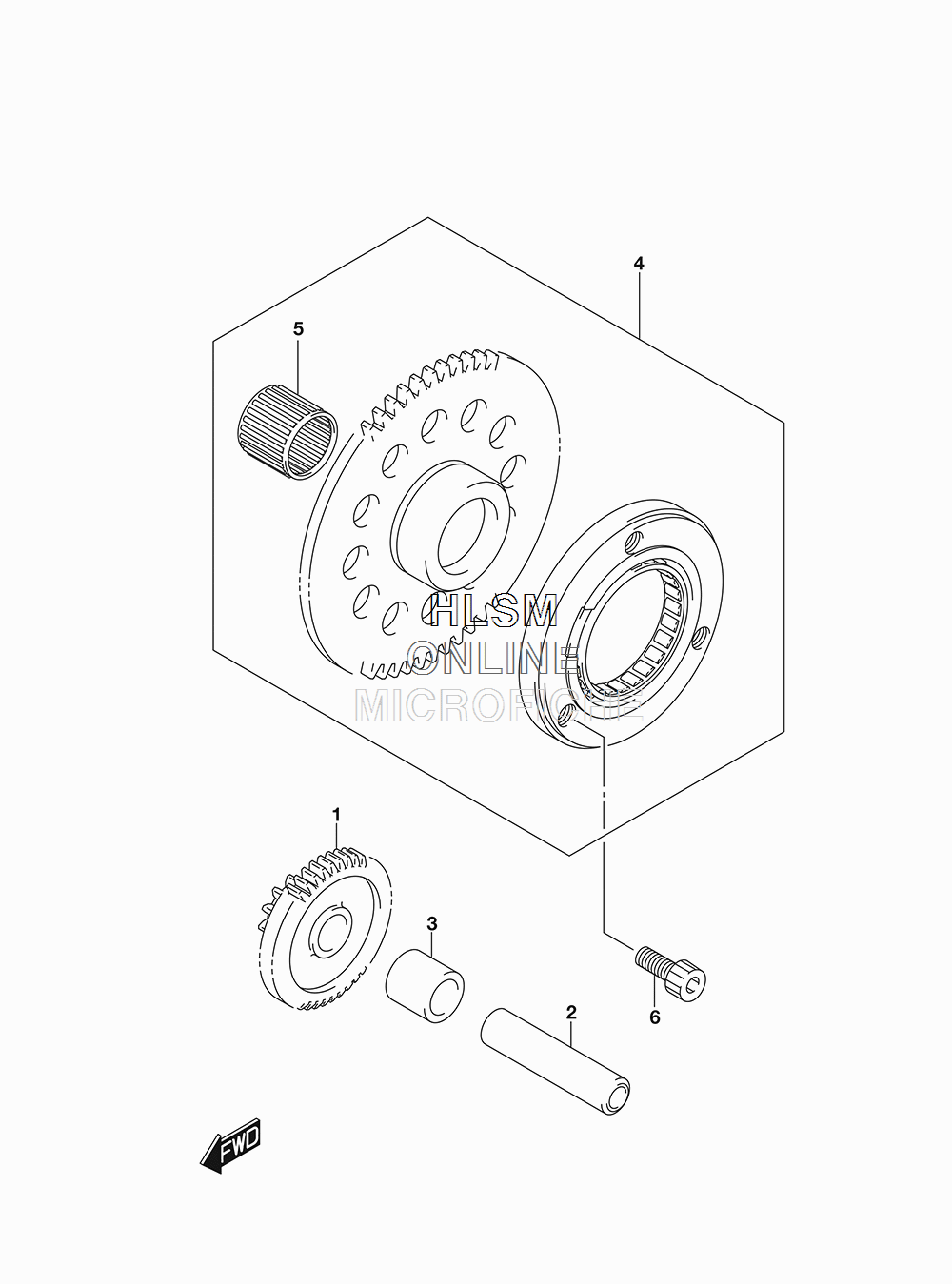

STARTER CLUTCH для Suzuki DR200SL8 - 2018 года выпуска
-
№АртикулНазвание
-
112611-42A03 GEAR, STARTER IDLE (NT:15/44)GEAR, STARTER IDLE (NT:15/44)
-
209206-13003 PIN (7.4X13X56)PIN (7.4X13X56)
-
309180-13006 SPACER (13X19X19)SPACER (13X19X19)
-
412600-35880 CLUTCH SET, STARTER (NT:57)CLUTCH SET, STARTER (NT:57)
-
509263-22031 ...BEARING (22X28X16)...BEARING (22X28X16)
-
609106-08190 BOLT (8X16)BOLT (8X16)
