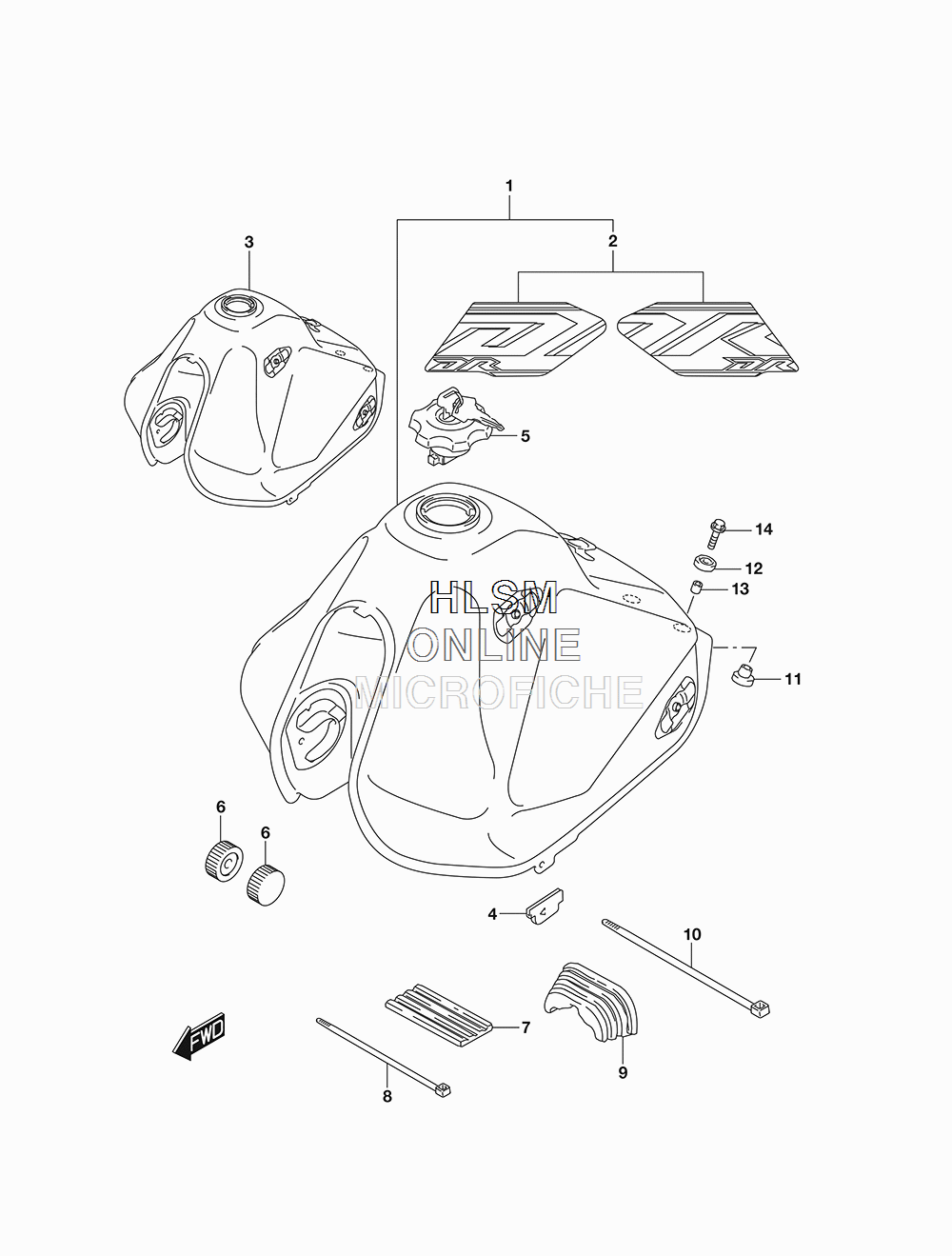

FUEL TANK (EXCEPT CALIF.) для Suzuki DR200SL8 - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    44100-49J30-30H TANK ASSY, FUEL (30H - WHITE FOR 30H - WHITE)
    TANK ASSY, FUEL (30H - WHITE FOR 30H - WHITE)
  • 2
    68110-49J00-BLQ ...TAPE SET, FUEL TANK (BLQ - SILVER/GRAY/GRAY/WHITE FOR 30H - WHITE)
    ...TAPE SET, FUEL TANK (BLQ - SILVER/GRAY/GRAY/WHITE FOR 30H - WHITE)
  • 3
    44100-49J00-019 TANK ASSY, FUEL (019 - BLACK FOR YU1 - YELLOW)
    TANK ASSY, FUEL (019 - BLACK FOR YU1 - YELLOW)
  • 4
    44164-49J00 CUSHION, FUEL TANK REAR
    CUSHION, FUEL TANK REAR
  • 5
    44200-29820 CAP SET, FUEL TANK
    CAP SET, FUEL TANK
  • 6
    09329-10016 CUSHION
    CUSHION
  • 7
    44541-14500 CUSHION, FUEL TANK UPPER
    CUSHION, FUEL TANK UPPER
  • 8
    09407-25402 CLAMP (L:248)
    CLAMP (L:248)
  • 9
    44542-14A00 CUSHION, FUEL TANK REAR
    CUSHION, FUEL TANK REAR
  • 10
    09407-30402 CLAMP (L:300)
    CLAMP (L:300)
  • 11
    09320-10020 CUSHION
    CUSHION
  • 12
    09320-14022 CUSHION
    CUSHION
  • 13
    09180-06271 SPACER (6.5X9X18)
    SPACER (6.5X9X18)
  • 14
    01570-0630B BOLT
    BOLT
