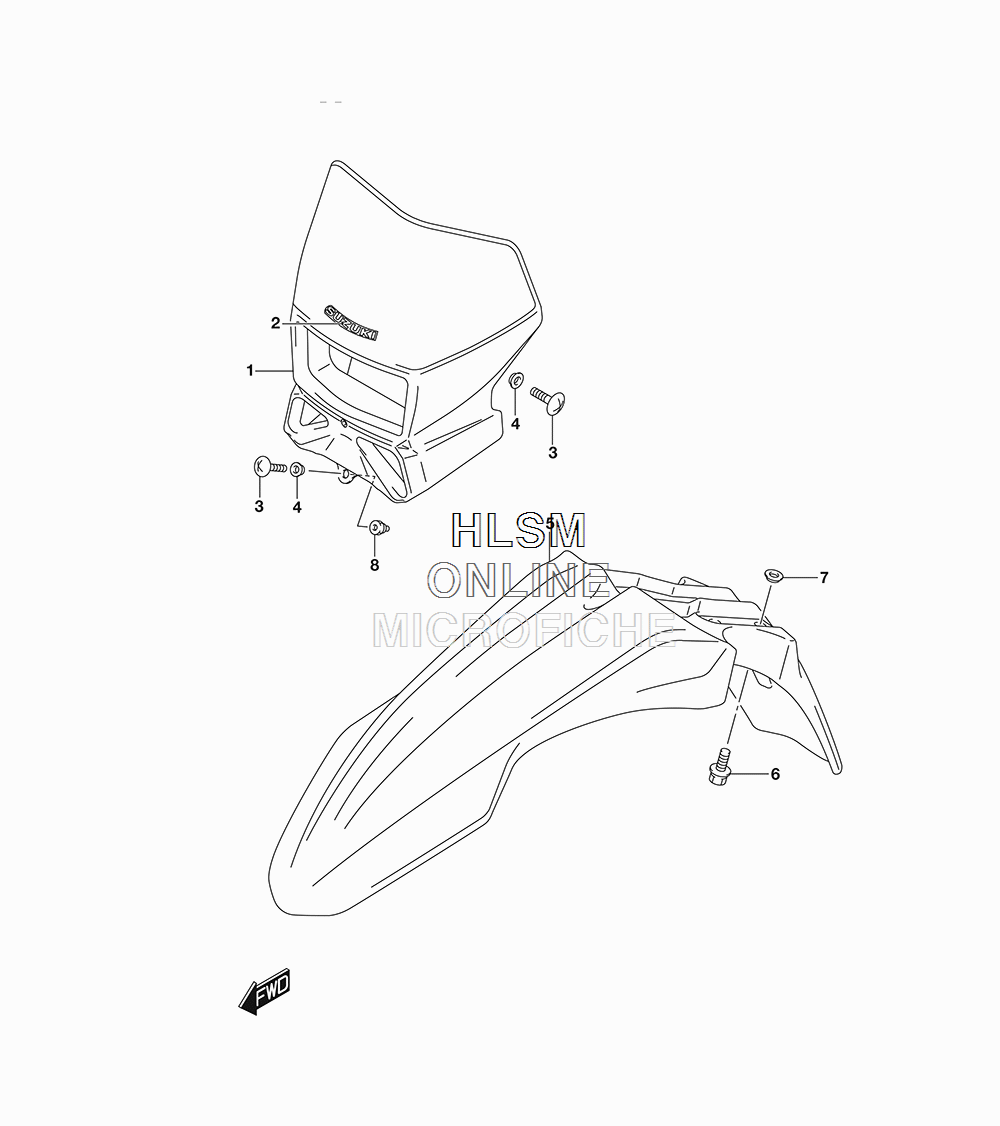

HEADLAMP HOUSING для Suzuki DR200SL8 - 2018 года выпуска

  • №
    Артикул
    Название
  • 1-1
    51811-29F50-30H COVER, HEADLAMP (30H - WHITE FOR 30H - WHITE)
    COVER, HEADLAMP (30H - WHITE FOR 30H - WHITE)
  • 1-2
    51811-29F50-YU1 COVER, HEADLAMP (YU1 - YELLOW FOR YU1 - YELLOW)
    COVER, HEADLAMP (YU1 - YELLOW FOR YU1 - YELLOW)
  • 2
    68131-49J00-YHG EMBLEM "SUZUKI" (YHG - GRAY)
    EMBLEM "SUZUKI" (YHG - GRAY)
  • 3
    02142-0612A SCREW
    SCREW
  • 4
    09169-06071 WASHER
    WASHER
  • 5-1
    53111-49J00-30H FENDER, FRONT (30H - WHITE FOR 30H - WHITE)
    FENDER, FRONT (30H - WHITE FOR 30H - WHITE)
  • 5-2
    53111-49J00-YU1 FENDER, FRONT (YU1 - YELLOW FOR YU1 - YELLOW)
    FENDER, FRONT (YU1 - YELLOW FOR YU1 - YELLOW)
  • 6
    09116-06170 BOLT (6X16)
    BOLT (6X16)
  • 7
    09169-06073 WASHER
    WASHER
  • 8
    51812-49J00 BOLT, HEADLAMP COVER
    BOLT, HEADLAMP COVER
