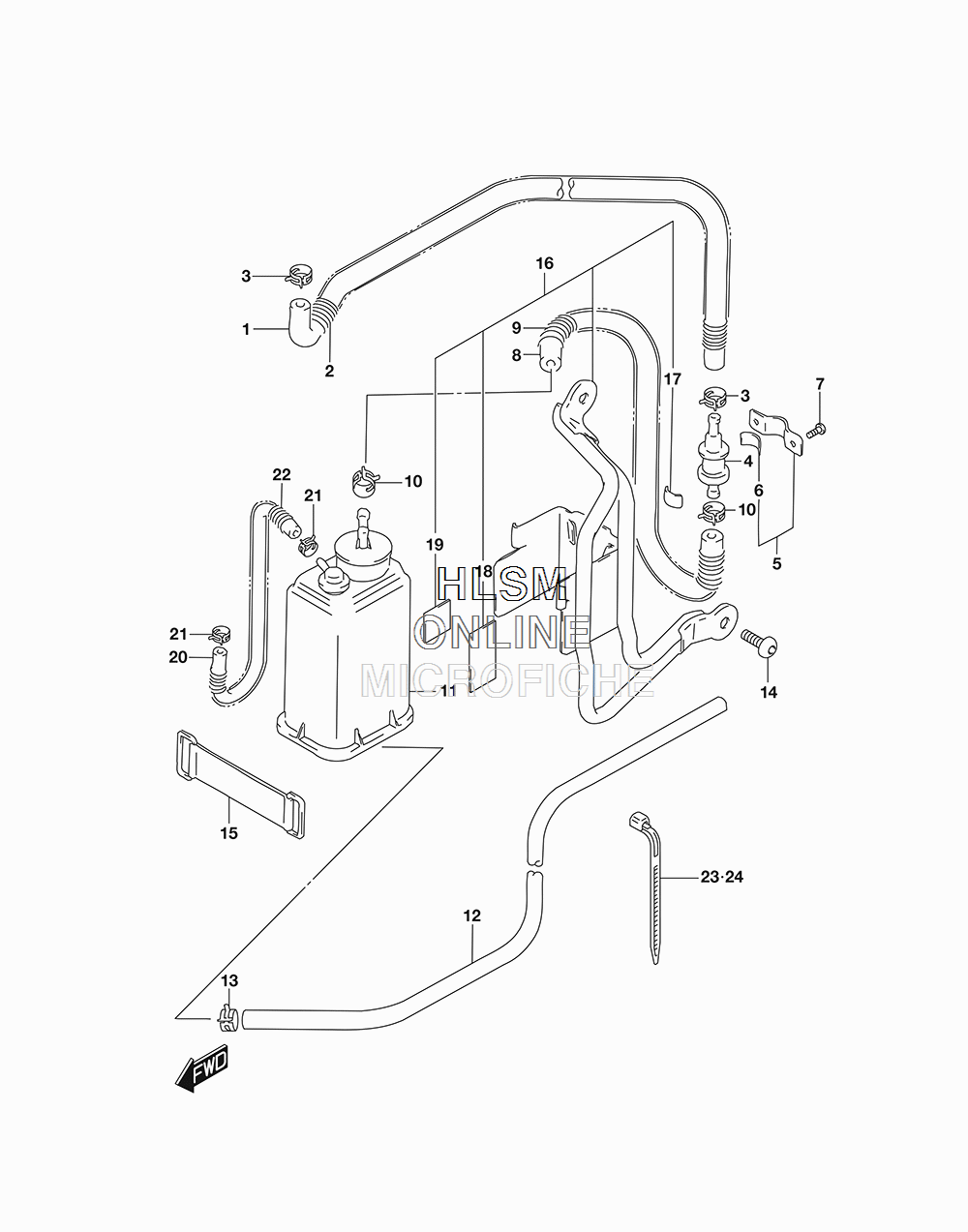

EVAP SYSTEM (CALIF.) для Suzuki DR200SL8 - 2018 года выпуска`
-
№АртикулНазвание
-
144434-42A00 HOSE, TANK & VALVEHOSE, TANK & VALVE
-
209440-13053 SPRINGSPRING
-
309401-11413 CLIPCLIP
-
444240-38A00 VALVE, ROLL OVERVALVE, ROLL OVER
-
544892-24A00 PLATE, VALVE FITPLATE, VALVE FIT
-
644894-24A00 ...CUSHION...CUSHION
-
702112-0408B SCREWSCREW
-
844435-42A00 HOSE, VALVE & CANISTERHOSE, VALVE & CANISTER
-
909440-13043 SPRINGSPRING
-
1009401-11413 CLIPCLIP
-
1117210-44A00 CANISTER ASSY, CHARCOALCANISTER ASSY, CHARCOAL
-
1209352-70113-00B HOSE (7X11X2000) (L:2000->650)HOSE (7X11X2000) (L:2000->650)
-
1309401-10409 CLIPCLIP
-
1409139-06139 SCREW (6X16)SCREW (6X16)
-
1509462-00034 BANDBAND
-
1644880-44AB0 PLATE, CANISTERPLATE, CANISTER
-
1744894-24A00 ...CUSHION...CUSHION
-
1844885-38A00 ...CUSHION...CUSHION
-
1944885-44AA0 ...CUSHION...CUSHION
-
2044436-42A00 HOSE, CANISTER PURGEHOSE, CANISTER PURGE
-
2109401-06405 CLIPCLIP
-
2209440-10031 SPRINGSPRING
-
2309407-14403 CLAMP (L:125)CLAMP (L:125)
-
2409407-18402 CLAMP (L:165)CLAMP (L:165)
