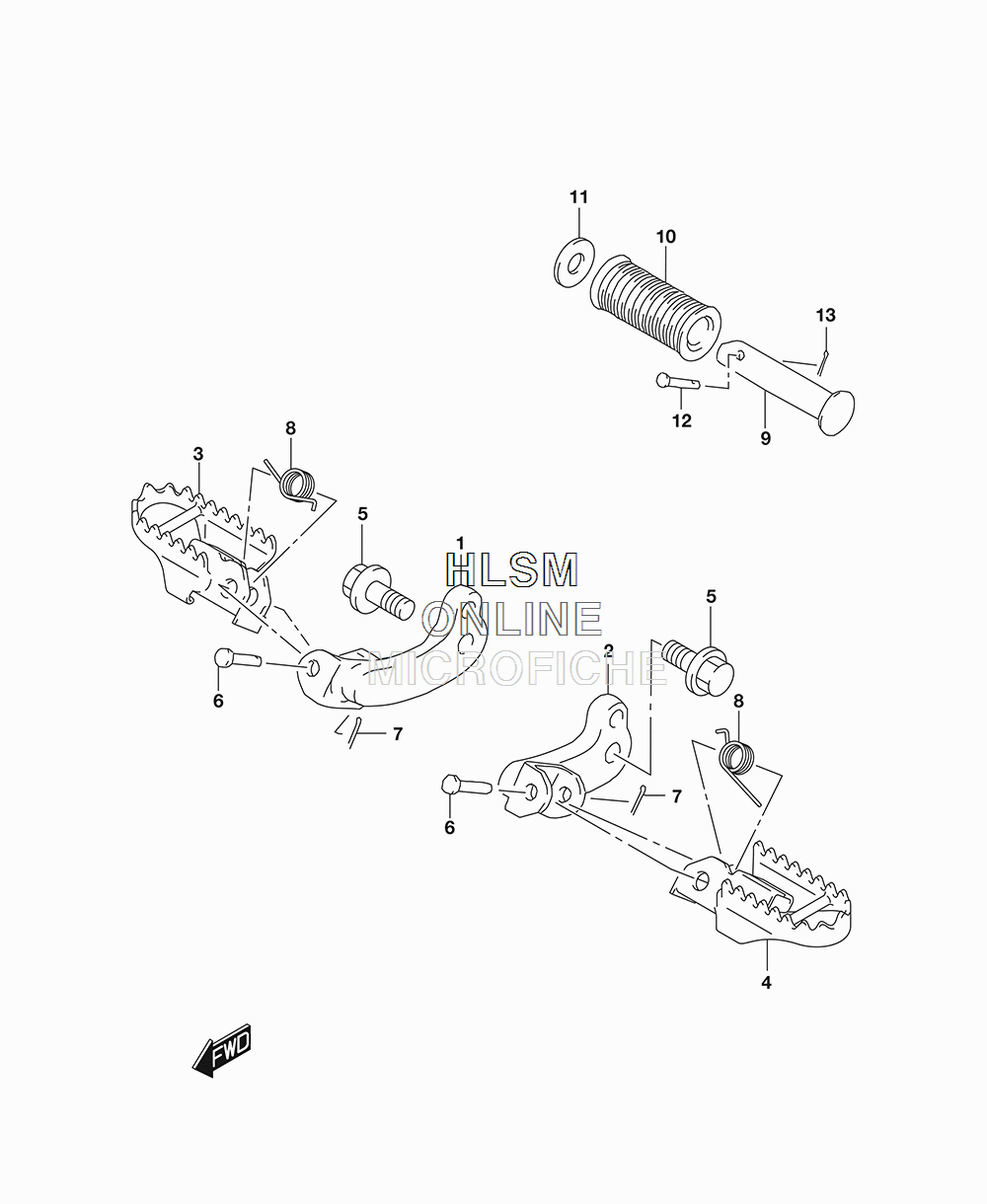

FOOTREST для Suzuki DR200SL8 - 2018 года выпуска
-
№АртикулНазвание
-
143510-49J00-019 BAR, FRONT FOOTREST (RH) (019 - BLACK)BAR, FRONT FOOTREST (RH) (019 - BLACK)
-
243520-49J00-019 BAR, FRONT FOOTREST (LH) (019 - BLACK)BAR, FRONT FOOTREST (LH) (019 - BLACK)
-
343550-03B00-019 FOOTREST, FRONT (RH) (019 - BLACK)FOOTREST, FRONT (RH) (019 - BLACK)
-
443560-03B00-019 FOOTREST, FRONT (LH) (019 - BLACK)FOOTREST, FRONT (LH) (019 - BLACK)
-
509103-12047 BOLT (12X25)BOLT (12X25)
-
609200-10013 PINPIN
-
704111-2015A PIN, COTTERPIN, COTTER
-
809448-15004 SPRINGSPRING
-
943610-03001 BAR, PILLION FOOTRESTBAR, PILLION FOOTREST
-
1043612-33201 RUBBER, PILLION FOOTRESTRUBBER, PILLION FOOTREST
-
1109160-19024 WASHER (19.5X32X2)WASHER (19.5X32X2)
-
1209200-06033 PINPIN
-
1304111-2015A PIN, COTTERPIN, COTTER
