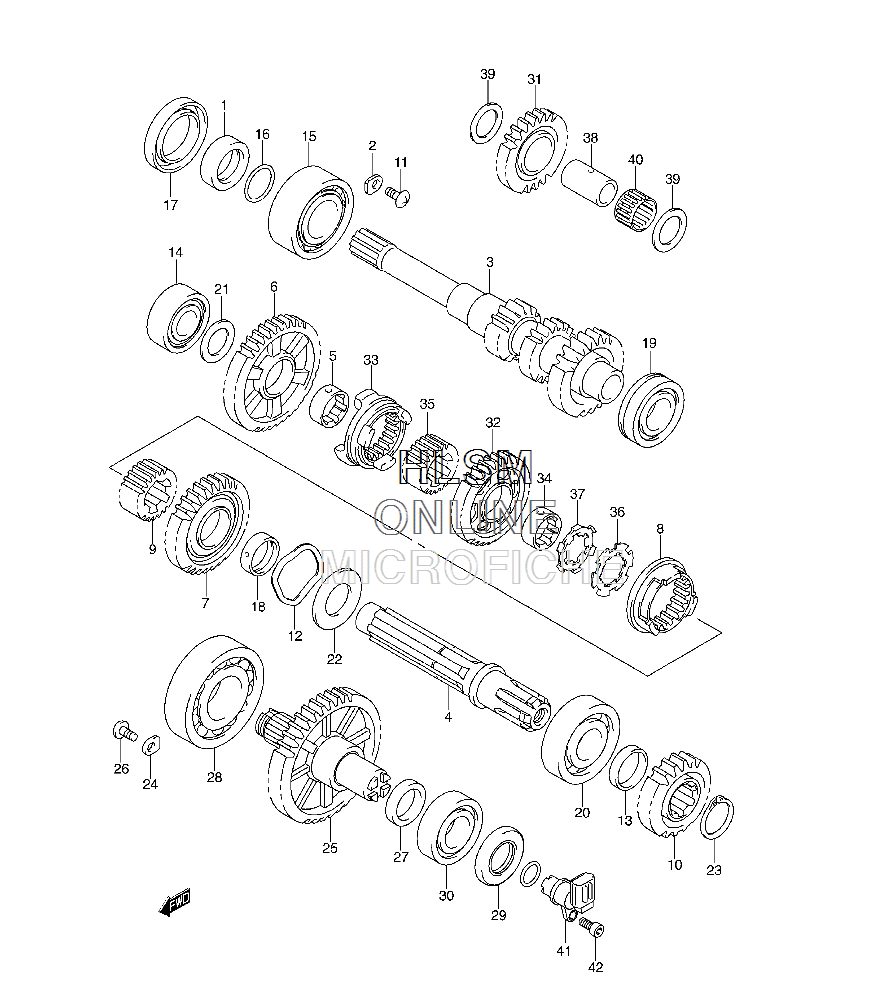

TRANSMISSION (2) для Suzuki LT-A700X Kiing Quad 4x4 - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    21102-31G00 SPACER, DRIVE SHAFT
    SPACER, DRIVE SHAFT
  • 2
    24741-21A00 RETAINER, DRIVE SHAFT, R
    RETAINER, DRIVE SHAFT, R
  • 3
    29111-31G00 SHAFT, DRIVE (NT:25/17/16)
    SHAFT, DRIVE (NT:25/17/16)
  • 4
    29131-31G00 SHAFT, SUB T/M COUNTER
    SHAFT, SUB T/M COUNTER
  • 5
    29215-07G00 BUSH, SUB T/M DRIVEN GR LOW
    BUSH, SUB T/M DRIVEN GR LOW
  • 6
    29311-31G00 GEAR, SUB T/M DRIVEN LOW NT:41
    GEAR, SUB T/M DRIVEN LOW NT:41
  • 7
    29321-31G00 GEAR, SUB T/M DRIVEN HIGH NT:31
    GEAR, SUB T/M DRIVEN HIGH NT:31
  • 8
    29331-31G00 DOG, GEAR SHIFT HIGH
    DOG, GEAR SHIFT HIGH
  • 9
    29332-31G00 SPACER, SUB T/M SELECT
    SPACER, SUB T/M SELECT
  • 10
    29411-31G00 GEAR, SUB T/M DRIVE NO.2 NT:20
    GEAR, SUB T/M DRIVE NO.2 NT:20
  • 11
    09125-06110 SCREW, RTNR DRIVE SHAFT, R 6X12
    SCREW, RTNR DRIVE SHAFT, R 6X12
  • 12
    09164-34001 WASHER, SUB T/M DRIVEN
    WASHER, SUB T/M DRIVEN
  • 13
    09180-25097 SPACER, SUB T/M DRIVE GEAR 25X30X7
    SPACER, SUB T/M DRIVE GEAR 25X30X7
  • 14
    09262-20139 BEARING, SUB T/M COUNTER, R 20X47X14
    BEARING, SUB T/M COUNTER, R 20X47X14
  • 15
    09267-30005 BEARING, DRIVE SHAFT, R 30X62X23.8
    BEARING, DRIVE SHAFT, R 30X62X23.8
  • 16
    09280-25004 O-RING, DRIVE SHAFT D:2.4, ID:24.7
    O-RING, DRIVE SHAFT D:2.4, ID:24.7
  • 17
    09283-38025 SEAL, DRIVE SHAFT SPACE 38X56X7.0
    SEAL, DRIVE SHAFT SPACE 38X56X7.0
  • 18
    24252-19F00 BUSH, SUB T/M DRIVEN GR
    BUSH, SUB T/M DRIVEN GR
  • 19
    09262-25003 BEARING, DRIVE SHAFT, L 25X52X15
    BEARING, DRIVE SHAFT, L 25X52X15
  • 20
    09262-25073 BEARING, SUB T/M COUNTER, L
    BEARING, SUB T/M COUNTER, L
  • 21
    08211-20363 WASHER, SUB T/M DRIVEN, R
    WASHER, SUB T/M DRIVEN, R
  • 22
    08211-25463 WASHER, SUB T/M DRIVEN, L
    WASHER, SUB T/M DRIVEN, L
  • 23
    08331-31256 CIRCLIP, SUB T/M GEAR
    CIRCLIP, SUB T/M GEAR
  • 24
    24741-21A00 RETAINER, SEC DRIVE SHAFT
    RETAINER, SEC DRIVE SHAFT
  • 25
    29120-31G00 SHAFT, SUB T/M OUTPUT
    SHAFT, SUB T/M OUTPUT
  • 26
    09125-06110 SCREW, RETAINER (6X12)
    SCREW, RETAINER (6X12)
  • 27
    09180-25083 SPACER, SUB T/M OUTPUT 25X34X5.5
    SPACER, SUB T/M OUTPUT 25X34X5.5
  • 28
    09262-35076 BEARING, SUB T/M OUTPUT, R 25X62X17
    BEARING, SUB T/M OUTPUT, R 25X62X17
  • 29
    09283-25076 SEAL, SUB T/M OUTPUT, L 25X45X5
    SEAL, SUB T/M OUTPUT, L 25X45X5
  • 30
    09262-25003 BEARING, SUB T/M OUTPUT, L 25X52X15
    BEARING, SUB T/M OUTPUT, L 25X52X15
  • 31
    24561-31G01 GEAR, REVERSE IDLE (NT:23)
    GEAR, REVERSE IDLE (NT:23)
  • 32
    24571-31G00 GEAR, REVERSE DRIVEN (NT:32)
    GEAR, REVERSE DRIVEN (NT:32)
  • 33
    24581-31G00 DOG, SUB T/M SELECT SL
    DOG, SUB T/M SELECT SL
  • 34
    29215-07G00 BUSH, REVERSE DRIVEN GEAR
    BUSH, REVERSE DRIVEN GEAR
  • 35
    29332-31G00 SPACER, REVERSE SELECT
    SPACER, REVERSE SELECT
  • 36
    09167-25013 WASHER, LOCK
    WASHER, LOCK
  • 37
    09169-25001 WASHER, LOCK
    WASHER, LOCK
  • 38
    24551-31G00 SHAFT, REVERSE IDLE
    SHAFT, REVERSE IDLE
  • 39
    09181-20195 WASHER, REVERSE IDLE GEAR 20X30X1.0
    WASHER, REVERSE IDLE GEAR 20X30X1.0
  • 40
    09263-20060 BEARING, REVERSE IDLE GEAR 20X47X14
    BEARING, REVERSE IDLE GEAR 20X47X14
  • 41
    34990-31G00 SENSOR, SPEED
    SENSOR, SPEED
  • 42
    07130-06163 BOLT, SENSOR
    BOLT, SENSOR
