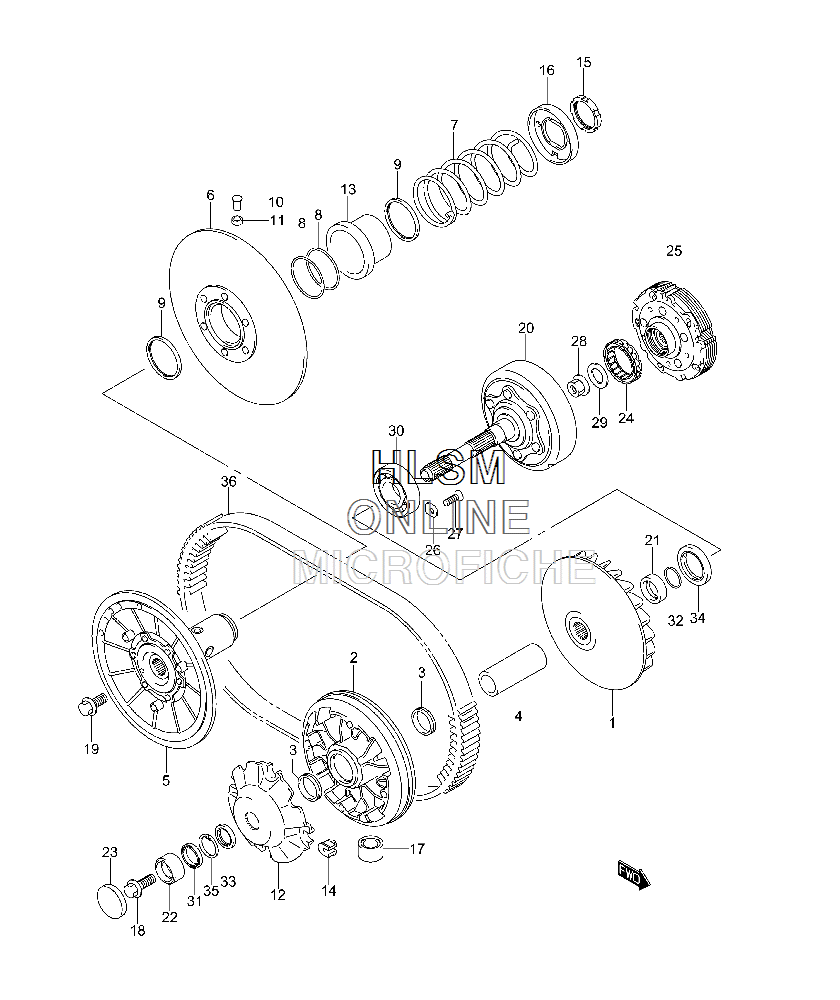

TRANSMISSION (1) для Suzuki LT-A700X Kiing Quad 4x4 - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    21110-31G00 FACE, FIXED DRIVE
    FACE, FIXED DRIVE
  • 2
    21120-31G00 FACE, MOVABLE DRIVE
    FACE, MOVABLE DRIVE
  • 3
    21124-31G00 SEAL, MOVABLE DRIVE FACE
    SEAL, MOVABLE DRIVE FACE
  • 4
    21125-31G00 SPACER, MOVABLE DRIVE
    SPACER, MOVABLE DRIVE
  • 5
    21210-31G00 FACE, FIXED DRIVEN
    FACE, FIXED DRIVEN
  • 6
    21240-31G00 FACE, MOVABLE DRIVEN
    FACE, MOVABLE DRIVEN
  • 7
    21243-09F52 SPRING, MOVABLE DRIVEN
    SPRING, MOVABLE DRIVEN
  • 8
    21245-15F00 O-RING, MOVABLE DRIVEN
    O-RING, MOVABLE DRIVEN
  • 9
    21247-31G00 SEAL, MOVABLE DRIVEN
    SEAL, MOVABLE DRIVEN
  • 10
    21248-15F01 PIN, MOVABLE DRIVEN
    PIN, MOVABLE DRIVEN
  • 11
    21249-15F00 SPACER, MOVABLE DRIVEN
    SPACER, MOVABLE DRIVEN
  • 12
    21431-31G00 PLATE, MOVABLE DRIVE
    PLATE, MOVABLE DRIVE
  • 13
    21471-09F60 SHEET, MOVABLE DRIVEN
    SHEET, MOVABLE DRIVEN
  • 14
    21481-14F00 DAMPER, MOVABLE DRIVE
    DAMPER, MOVABLE DRIVE
  • 15
    21518-09F50 NUT, DRIVEN PULLEY SPRING
    NUT, DRIVEN PULLEY SPRING
  • 16
    21519-09F52 HOLDER, MOVABLE DRIVEN
    HOLDER, MOVABLE DRIVEN
  • 17
    21650-31G00 ROLLER, MOVABLE DRIVEN
    ROLLER, MOVABLE DRIVEN
  • 18
    09103-12028 BOLT, DRIVE FACE (12X30)
    BOLT, DRIVE FACE (12X30)
  • 19
    09103-12049 BOLT, DRIVEN FACE (12X25)
    BOLT, DRIVEN FACE (12X25)
  • 20
    21100-31G00 HOUSING, CLUTCH
    HOUSING, CLUTCH
  • 21
    21102-31G00 SPACER, PRIMARY SHAFT
    SPACER, PRIMARY SHAFT
  • 22
    21106-31G00 SPACER, CLUTCH HOUSING
    SPACER, CLUTCH HOUSING
  • 23
    21107-31G00 CAP, V-BELT BEARING
    CAP, V-BELT BEARING
  • 24
    21273-44D00 CLUTCH, ONE WAY
    CLUTCH, ONE WAY
  • 25
    21500-31G00 CLUTCH ASSY, SHOE
    CLUTCH ASSY, SHOE
  • 26
    24741-20A00 RETAINER, CL HSG BRG
    RETAINER, CL HSG BRG
  • 27
    09126-06011 SCREW, RETAINER (6X12)
    SCREW, RETAINER (6X12)
  • 28
    09159-18020 NUT, SHOE CLUTCH
    NUT, SHOE CLUTCH
  • 29
    09164-18004 WASHER, SHOE CLUTCH
    WASHER, SHOE CLUTCH
  • 30
    09262-28014 BEARING, CLUTCH HOUSING, L 28X68X18
    BEARING, CLUTCH HOUSING, L 28X68X18
  • 31
    09262-35075 BEARING, CLUTCH HOUSING, R
    BEARING, CLUTCH HOUSING, R
  • 32
    09280-25004 O-RING, PRIMARY SHAFT D:2.4, ID:24.7
    O-RING, PRIMARY SHAFT D:2.4, ID:24.7
  • 33
    09283-35051 SEAL, CLUTCH HSG OIL, R 35X47X5
    SEAL, CLUTCH HSG OIL, R 35X47X5
  • 34
    09283-38025 SEAL, CLUTCH HOUSING SP 38X56X7
    SEAL, CLUTCH HOUSING SP 38X56X7
  • 35
    08331-41479 CIRCLIP, CLUTCH HOUSING
    CIRCLIP, CLUTCH HOUSING
  • 36
    27601-31G00 V-BELT, DRIVE
    V-BELT, DRIVE
