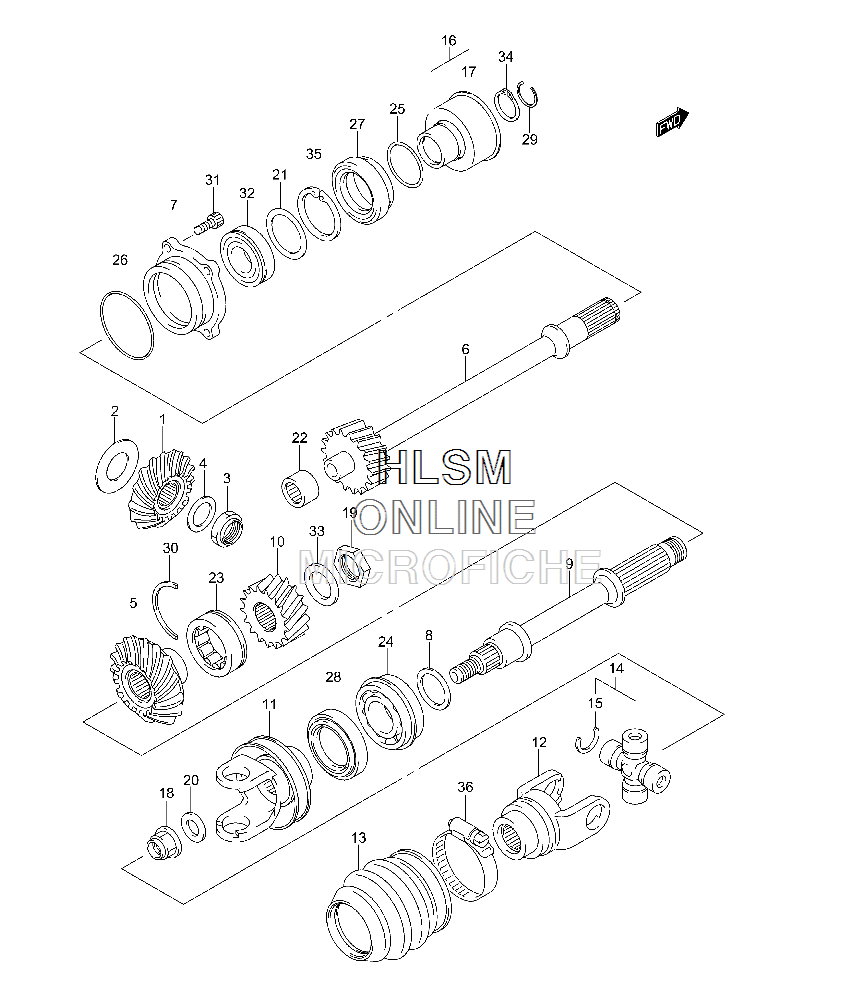

DRIVESHAFT - CENTER TRANSFER для Suzuki LT-A700X Kiing Quad 4x4 - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    24911-31G00 GEAR, SEC DRIVE BEVEL
    GEAR, SEC DRIVE BEVEL
  • 2
    24935-03811 SHIM SET, SEC DRIVE BEVEL
    SHIM SET, SEC DRIVE BEVEL
  • 3
    09140-20012 NUT, SEC DRIVE OUTPUT
    NUT, SEC DRIVE OUTPUT
  • 4
    09181-20223 WASHER, SEC DRIVE BEVEL 20X32X1.0
    WASHER, SEC DRIVE BEVEL 20X32X1.0
  • 5
    24921-31G00 GEAR, SEC DRIVEN BEVEL
    GEAR, SEC DRIVEN BEVEL
  • 6
    24961-31G00 SHAFT, SEC OUTPUT, FR
    SHAFT, SEC OUTPUT, FR
  • 7
    24965-31G00 HOUSING, FR OUTPUT SHAFT
    HOUSING, FR OUTPUT SHAFT
  • 8
    24945-03811 SHIM SET, SEC DRIVEN BEVEL
    SHIM SET, SEC DRIVEN BEVEL
  • 9
    24971-31G00 SHAFT, SEC OUTPUT, RR
    SHAFT, SEC OUTPUT, RR
  • 10
    24972-31G00 GEAR, SEC DRIVEN OUTPUT
    GEAR, SEC DRIVEN OUTPUT
  • 11
    27130-31G00 YOKE, RR DRIVE OUT
    YOKE, RR DRIVE OUT
  • 12
    27141-31G00 YOKE, PROP SHAFT
    YOKE, PROP SHAFT
  • 13
    27153-31G00 BOOT, REAR OUTPUT JOINT
    BOOT, REAR OUTPUT JOINT
  • 14
    27200-73813 JOINT SET, UNIVERSAL (INCL. 15)
    JOINT SET, UNIVERSAL (INCL. 15)
  • 15
    09380-25005 CIRCLIP, UNIVERSAL JOINT
    CIRCLIP, UNIVERSAL JOINT
  • 16
    27590-31G00 COLLAR, FRONT DRIVE (INCL. 17)
    COLLAR, FRONT DRIVE (INCL. 17)
  • 17
    27592-31G20 PLATE, OUTPUT OIL SEAL
    PLATE, OUTPUT OIL SEAL
  • 18
    09159-16003 NUT, RR DRIVE OUTPUT YOKE
    NUT, RR DRIVE OUTPUT YOKE
  • 19
    09159-22005 NUT, SEC DRIVEN OUTPUT
    NUT, SEC DRIVEN OUTPUT
  • 20
    09160-16026 WASHER, RR DRIVE OUTPUT 16X30X3.0
    WASHER, RR DRIVE OUTPUT 16X30X3.0
  • 21
    09181-40195 WASHER, FR DRIVE OUTPUT 40X52X1.0
    WASHER, FR DRIVE OUTPUT 40X52X1.0
  • 22
    09263-25068 BEARING, FRONT OUTPUT, RR 25X37X17
    BEARING, FRONT OUTPUT, RR 25X37X17
  • 23
    09263-30050 BEARING, SEC DRIVEN GEAR 30X50X17
    BEARING, SEC DRIVEN GEAR 30X50X17
  • 24
    09267-25006 BEARING, REAR OUTPUT SH 25X52X20.6
    BEARING, REAR OUTPUT SH 25X52X20.6
  • 25
    09280-25005 O-RING, FR DRIVE OUTPUT D:1.9, ID:24.5
    O-RING, FR DRIVE OUTPUT D:1.9, ID:24.5
  • 26
    09280-57002 O-RING, FRONT BRG HOUSING D:1.9, ID:65.2
    O-RING, FRONT BRG HOUSING D:1.9, ID:65.2
  • 27
    09283-34008 SEAL, FRONT OUTPUT SHAFT 34X52X9
    SEAL, FRONT OUTPUT SHAFT 34X52X9
  • 28
    09283-34008 SEAL, REAR OUTPUT SHAFT 34X52X9
    SEAL, REAR OUTPUT SHAFT 34X52X9
  • 29
    09381-21002 C-RING, SEC DRIVEN OUTPUT
    C-RING, SEC DRIVEN OUTPUT
  • 30
    09390-50002 RING, SEC DRIVEN GEAR
    RING, SEC DRIVEN GEAR
  • 31
    07130-06203 BOLT, FRONT BRG HOUSING
    BOLT, FRONT BRG HOUSING
  • 32
    09262-25003 BEARING, FRONT OUTPUT, FR
    BEARING, FRONT OUTPUT, FR
  • 33
    08211-22365 WASHER, OUTPUT SHAFT GEAR
    WASHER, OUTPUT SHAFT GEAR
  • 34
    08331-31256 CIRCLIP, FR DRIVE OUTPUT
    CIRCLIP, FR DRIVE OUTPUT
  • 35
    08331-41526 CIRCLIP, FR OUTPUT SHAFT
    CIRCLIP, FR OUTPUT SHAFT
  • 36
    09402-00512 CLAMP
    CLAMP
