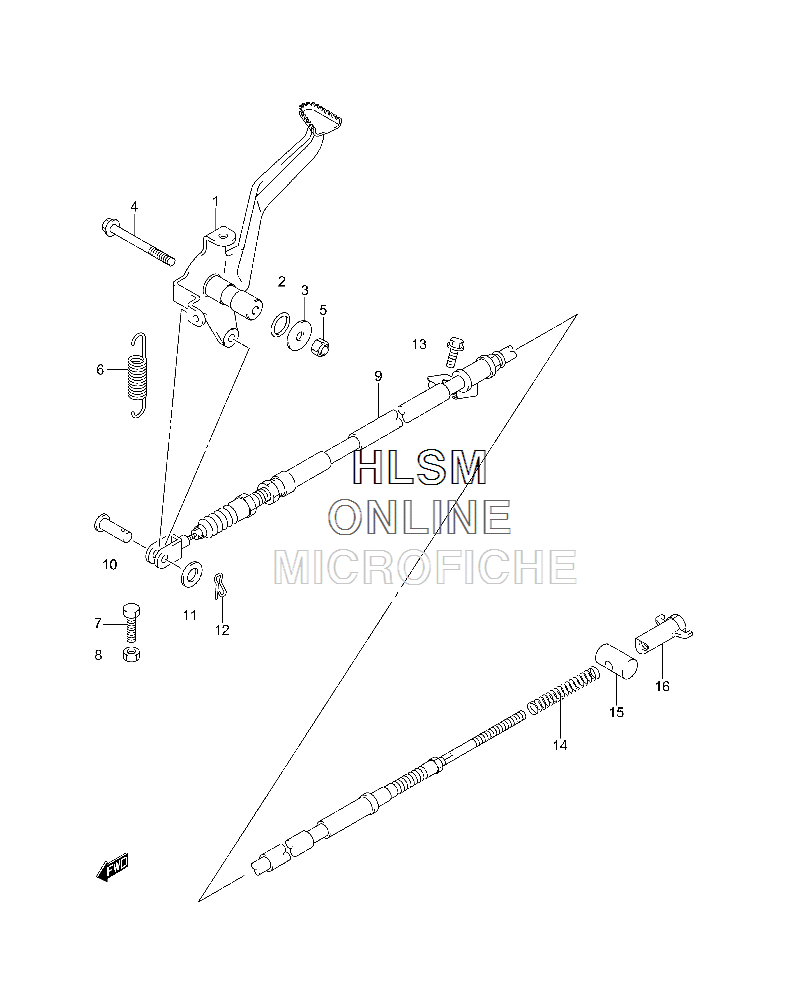

BRAKE - REAR PEDAL для Suzuki LT-A700X Kiing Quad 4x4 - 2005 года выпуска`
-
№АртикулНазвание
-
143110-31G00 PEDAL, BRAKEPEDAL, BRAKE
-
209280-14011 O RINGO RING
-
309160-06138 WASHERWASHER
-
401550-06653 BOLTBOLT
-
508319-21063 NUTNUT
-
609443-12019 SPRING, RETURNSPRING, RETURN
-
701500-06203 BOLT, ADJUSTERBOLT, ADJUSTER
-
808310-00063 NUTNUT
-
958510-31G00 CABLE, REAR BRAKECABLE, REAR BRAKE
-
1009200-05001 PIN, FRONTPIN, FRONT
-
1108322-01063 WASHERWASHER
-
1209385-06012 COTTER PINCOTTER PIN
-
1301550-06163 BOLT, CABLEBOLT, CABLE
-
1409440-08042 SPRINGSPRING
-
1509209-13006 PINPIN
-
1609150-06015 NUTNUT
