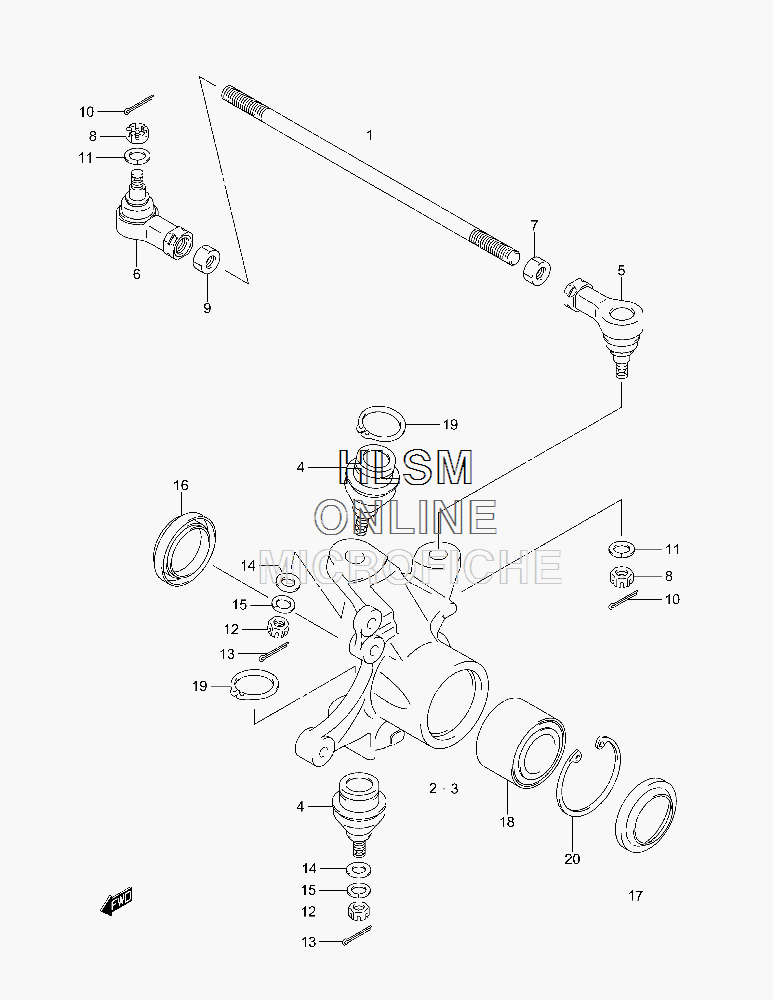

STEERING KNUCKLE W/ TIE RODS для Suzuki LT-A700X Kiing Quad 4x4 - 2005 года выпуска`

№

Артикул

Название
1

51281-31G00 TIE ROD, STEERING

TIE ROD, STEERING

8 390 ₽
2

51231-31G00 KNUCKLE, STEERING RIGHT HAND

KNUCKLE, STEERING RIGHT HAND

52 110 ₽
3

51241-31G00 KNUCKLE, STEERING LEFT HAND

KNUCKLE, STEERING LEFT HAND

52 110 ₽
4

51210-31G00 END, KNUCKLE STEERING

END, KNUCKLE STEERING

11 930 ₽
5

51260-31G00 ROD, END, R

ROD, END, R

9 810 ₽
6

51270-31G00 ROD, END, L

ROD, END, L

9 810 ₽
7

09140-12030 NUT, TIE ROD (RIGHT HAND THREAD)

NUT, TIE ROD (RIGHT HAND THREAD)

480 ₽
8

08314-40103 NUT, ROD END

NUT, ROD END

440 ₽
9

09140-12035 NUT, TIE ROD (LEFT HAND THREAD)

NUT, TIE ROD (LEFT HAND THREAD)

480 ₽
10

04111-20208 COTTER PIN, ROD END

COTTER PIN, ROD END

220 ₽
11

09162-10008 WASHER, ROD END

WASHER, ROD END

530 ₽
12

08314-40103 NUT, KNUCKLE END

NUT, KNUCKLE END

440 ₽
13

04111-20208 PIN, KNUCKLE END COTTER

PIN, KNUCKLE END COTTER

220 ₽
14

08322-01103 WASHER, KNUCKLE END

WASHER, KNUCKLE END

320 ₽
15

09162-10008 WASHER, KNUCKLE END LOCK

WASHER, KNUCKLE END LOCK

530 ₽
16

09283-38012 DUST SEAL, INNER (38X55X8)

DUST SEAL, INNER (38X55X8)

2 580 ₽
17

09285-38002 DUST SEAL, OUTER (38X55X6)

DUST SEAL, OUTER (38X55X6)

2 400 ₽
18

51259-31G00 BEARING

BEARING

18 020 ₽
19

08331-31306 CIRCLIP

CIRCLIP

450 ₽
20

08331-41559 CLIP

CLIP

670 ₽
