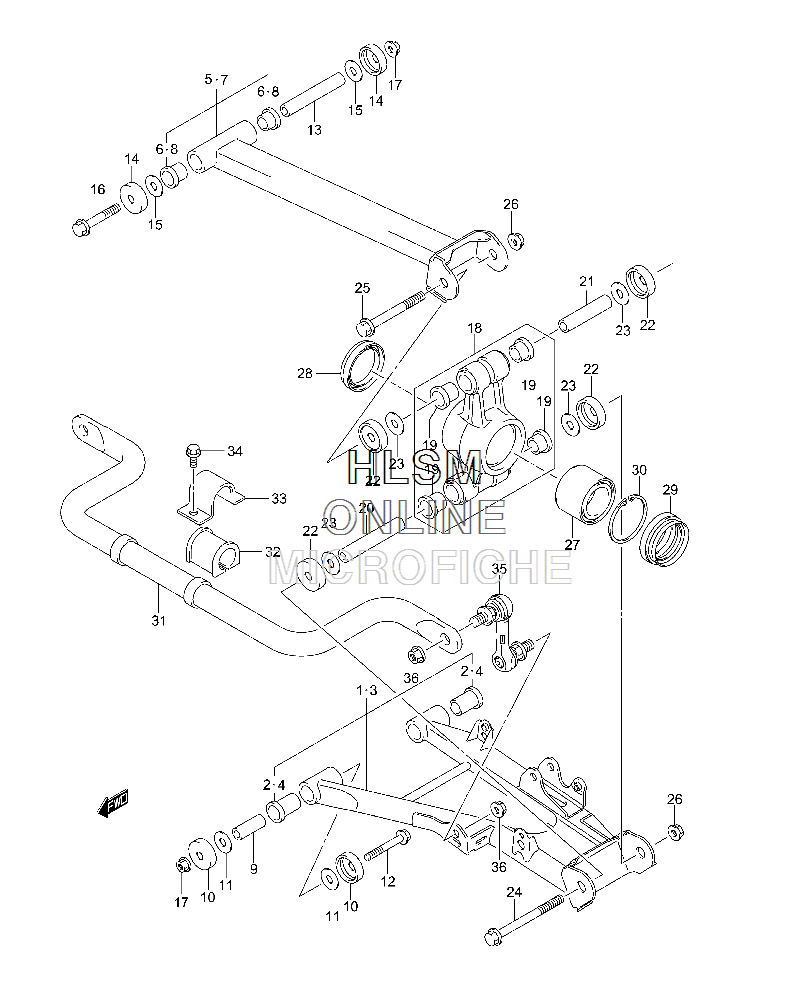

SUSPENSION - REAR ARM для Suzuki LT-A700X Kiing Quad 4x4 - 2005 года выпуска
-
№АртикулНазвание
-
161510-31810 ARM SET, RR SUSPENSION LOWER, R (INCL. 2)ARM SET, RR SUSPENSION LOWER, R (INCL. 2)
-
261551-31G00 BUSH, RR SPNSN ARM LOWERBUSH, RR SPNSN ARM LOWER
-
361520-31810 ARM SET, RR SUSPENSION LOWER, L (INCL. 4)ARM SET, RR SUSPENSION LOWER, L (INCL. 4)
-
461551-31G00 BUSH, RR SPNSN ARM LOWERBUSH, RR SPNSN ARM LOWER
-
561530-31810 ARM SET, RR SUSPENSION UPPER, R (INCL. 6)ARM SET, RR SUSPENSION UPPER, R (INCL. 6)
-
651236-40B00 BUSH, RR SPNSN ARM UPPERBUSH, RR SPNSN ARM UPPER
-
761540-31810 ARM SET, RR SUSPENSION UPPER, L (INCL. 8)ARM SET, RR SUSPENSION UPPER, L (INCL. 8)
-
851236-40B00 BUSH, RR SPNSN ARM UPPERBUSH, RR SPNSN ARM UPPER
-
961552-31G00 SPACER, RR SPNSN ARM LOWERSPACER, RR SPNSN ARM LOWER
-
1051255-18900 SEAL, RR SPNSN ARM LOWERSEAL, RR SPNSN ARM LOWER
-
1108211-10281 WASHER, RR SPNSN ARM LOWERWASHER, RR SPNSN ARM LOWER
-
1209103-10386 BOLT, RR SPNSN ARM LOWERBOLT, RR SPNSN ARM LOWER
-
1351251-18901 SPACER, RR SPNSN ARM UPPERSPACER, RR SPNSN ARM UPPER
-
1451255-18900 SEAL, RR SPNSN ARM UPPERSEAL, RR SPNSN ARM UPPER
-
1508211-10281 WASHER, RR SPNSN ARM UPPERWASHER, RR SPNSN ARM UPPER
-
1609103-10388 BOLT, RR SPNSN ARM UPPERBOLT, RR SPNSN ARM UPPER
-
1709159-10058 NUT, RR SPNSN ARM PIVOTNUT, RR SPNSN ARM PIVOT
-
1861600-31810 KNUCKLE SET, RR SUSPENSION (INCL. 19)KNUCKLE SET, RR SUSPENSION (INCL. 19)
-
1951236-40B00 BUSH, RR KNUCKLEBUSH, RR KNUCKLE
-
2051251-18901 SPACER, RR KNUCKLE LOWERSPACER, RR KNUCKLE LOWER
-
2161553-31G00 SPACER, RR KNUCKLE UPPERSPACER, RR KNUCKLE UPPER
-
2251255-18900 SEAL, RR KNUCKLE DUSTSEAL, RR KNUCKLE DUST
-
2308211-10281 WASHER, RR KNUCKLEWASHER, RR KNUCKLE
-
2409103-10388 BOLT, RR KNUCKLE LOWERBOLT, RR KNUCKLE LOWER
-
2509103-10387 BOLT, RR KNUCKLE UPPERBOLT, RR KNUCKLE UPPER
-
2609159-10058 NUT, RR KNUCKLENUT, RR KNUCKLE
-
2743440-84F00 BEARING, RR HUBBEARING, RR HUB
-
2861615-31G00 SEAL, REAR HUB INNER DUSTSEAL, REAR HUB INNER DUST
-
2961616-31G00 SEAL, REAR HUB OUTER DUSTSEAL, REAR HUB OUTER DUST
-
3008331-41629 CLIP, HUB BEARINGCLIP, HUB BEARING
-
3161651-31G00 BAR, RR STABILIZERBAR, RR STABILIZER
-
3242412-82CA0 BUSH, RR STABILIZERBUSH, RR STABILIZER
-
3342415-66D00 PLATE, RR STABILIZERPLATE, RR STABILIZER
-
3409103-08283 BOLT, RR STABILIZER PLATEBOLT, RR STABILIZER PLATE
-
3561660-31G00 JOINT, RR STABILIZERJOINT, RR STABILIZER
-
3608319-31103 NUT, RR STABILIZER JOINNUT, RR STABILIZER JOIN
