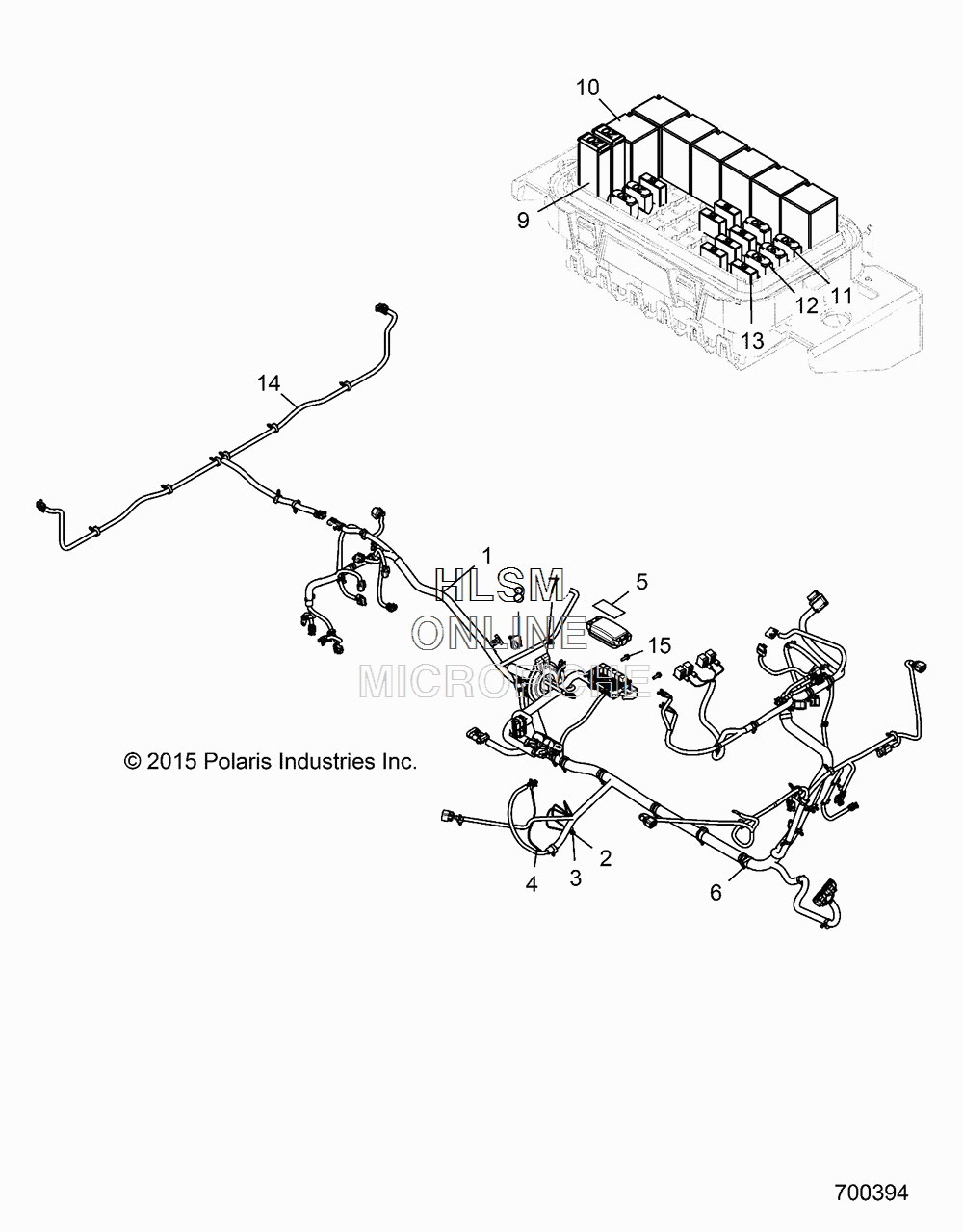

WIRE HARNESSES для Polaris RANGER CREW XP 1000 EPS NORTHSTAR EDITION SUNSET RED METALLIC (R18RVU99AS) - 2018 года выпуска
-
№АртикулНазвание
-
12413740 HARNESS-CHASSIS, PS, CR, HVAC, DLX (INCL. 2-12)HARNESS-CHASSIS, PS, CR, HVAC, DLX (INCL. 2-12)
-
12203632 LINK-FUSIBLE, 2.0MMLINK-FUSIBLE, 2.0MM
-
12202670 LINK-FUSIBLE, 1.0MMLINK-FUSIBLE, 1.0MM
-
12202607 LINK-FUSIBLE, 0.8MMLINK-FUSIBLE, 0.8MM
-
24013200 TVS-30VOLTTVS-30VOLT
-
34013062 RESISTOR-68 OHM, MINIRESISTOR-68 OHM, MINI
-
47519121 SCREWSCREW
-
57184772 DECAL-RELAY/FUSE BLOCK, HVACDECAL-RELAY/FUSE BLOCK, HVAC
-
67081496 CLIP-ROUTINGCLIP-ROUTING
-
75414435 GROMMET-CHASSIS HARNESSGROMMET-CHASSIS HARNESS
-
84012170 COVER-DIAGNOSTIC, W/CLIPCOVER-DIAGNOSTIC, W/CLIP
-
94011372 BREAKER-CIRCUIT, 20 AMPBREAKER-CIRCUIT, 20 AMP
-
104011283 RELAY-SPST, SERIES 303, SEALEDRELAY-SPST, SERIES 303, SEALED
-
112434017 FUSE-PARK, 20 AMPFUSE-PARK, 20 AMP
-
122434015 FUSE-MAIN, 30 AMPFUSE-MAIN, 30 AMP
-
132410280 FUSE-MINI BLADE, 15 AMPFUSE-MINI BLADE, 15 AMP
-
142413785 HARNESS, BOX, RANGER, SHIELDHARNESS, BOX, RANGER, SHIELD
-
157518529 SCR-M6X1.0X20, HXHD, FLG, TDFM, BKSCR-M6X1.0X20, HXHD, FLG, TDFM, BK
