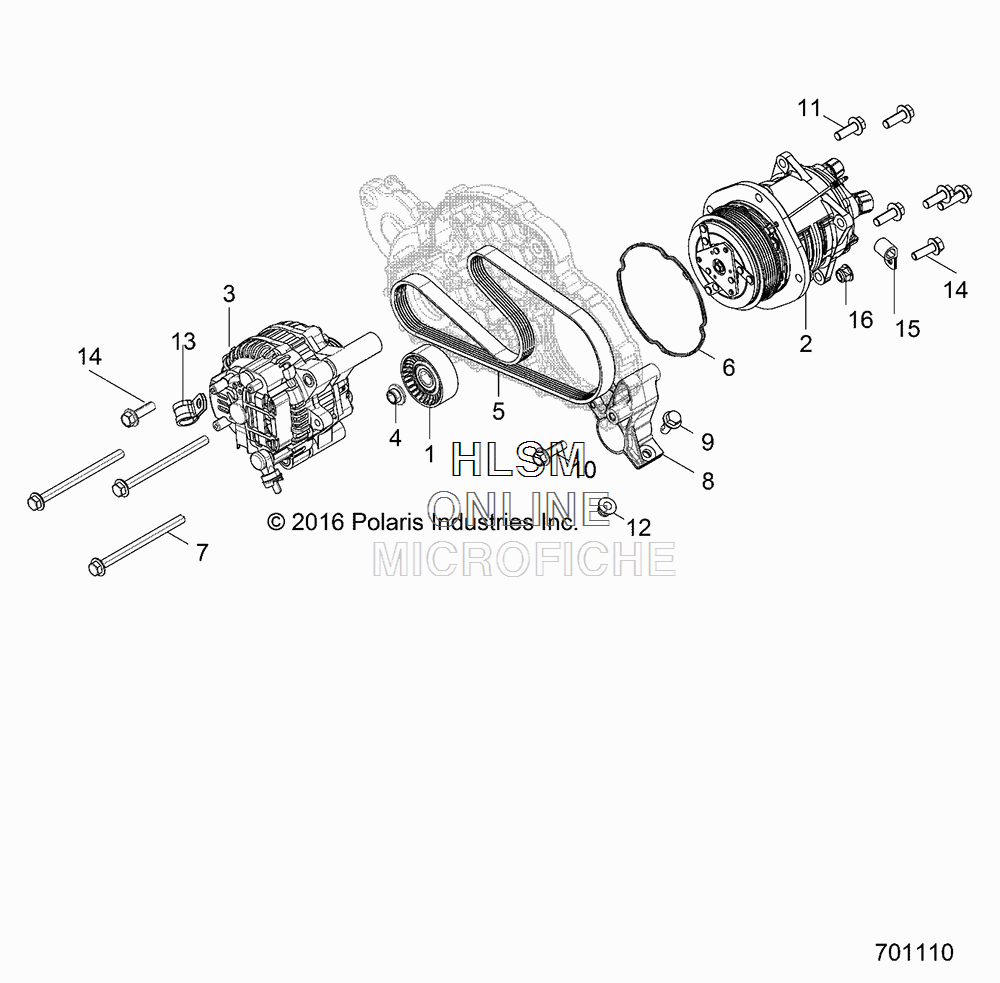

ALTERNATOR W/ COMPRESSOR для Polaris RANGER CREW XP 1000 EPS NORTHSTAR EDITION SUNSET RED METALLIC (R18RVU99AS) - 2018 года выпуска
-
№АртикулНазвание
-
13023107 PULLEY-FLAT IDLER, 70.9MMPULLEY-FLAT IDLER, 70.9MM
-
23023108 COMPRESSOR-HVACCOMPRESSOR-HVAC
-
34017099 ALTNTR-12V, 120A (BUILT 12/13/2017 AND AFTER)ALTNTR-12V, 120A (BUILT 12/13/2017 AND AFTER)
-
34015754 ALTNTR, 12V, 120A (BUILT UP TO 12/13/2017)ALTNTR, 12V, 120A (BUILT UP TO 12/13/2017)
-
45140081 WASHER, IDLERWASHER, IDLER
-
55415804 BELT-HVAC DRIVEBELT-HVAC DRIVE
-
65415805 GASKET-HVAC COMPRESSORGASKET-HVAC COMPRESSOR
-
77519041 SCR-HXFL-M10X1.5X140 8.8 ZODSCR-HXFL-M10X1.5X140 8.8 ZOD
-
83023168 ASM, COMPRESSOR SUPPORTASM, COMPRESSOR SUPPORT
-
97518760 SCR-HXFL-M10X1.25X25 8.8 Z NYSCR-HXFL-M10X1.25X25 8.8 Z NY
-
107519782 SCR-HXFL-M10X1.5X35 10.9 ZOD DSCR-HXFL-M10X1.5X35 10.9 ZOD D
-
117519764 SCR-HXFL-M10X1.5X30 8.8 ZODSCR-HXFL-M10X1.5X30 8.8 ZOD
-
127547333 NUT-M10X1.25, FLG, NYLOC-OLIVE DNUT-M10X1.25, FLG, NYLOC-OLIVE D
-
137080573 CLAMP-RUBBER COATED, .562CLAMP-RUBBER COATED, .562
-
147518514 SCR-HXFL-M8X1.25X25 8.8 ZODSCR-HXFL-M8X1.25X25 8.8 ZOD
-
157081722 CLIP-P, 7/16X.343 HOLECLIP-P, 7/16X.343 HOLE
-
167547317 NUT-M8X1.25, HXFLG, NYLON INSNUT-M8X1.25, HXFLG, NYLON INS
