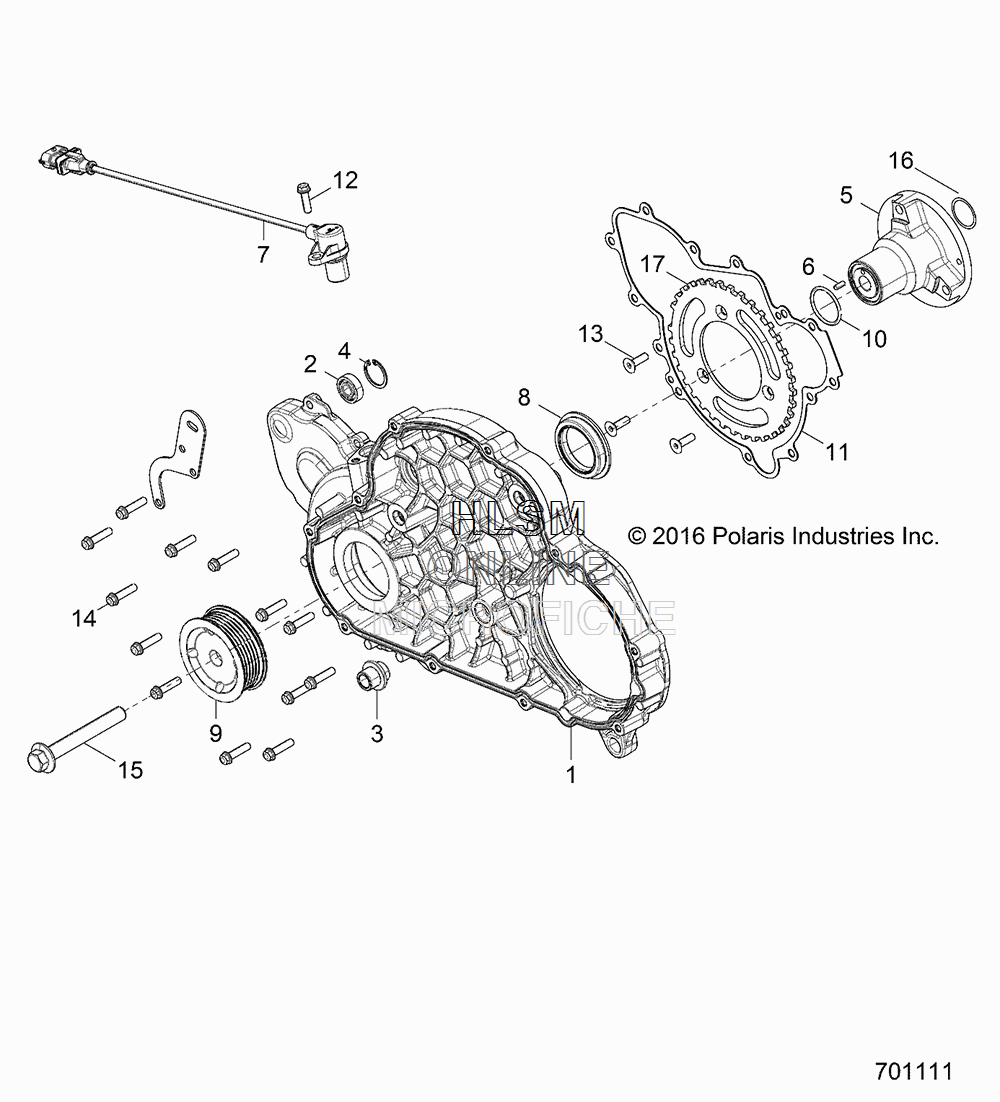

MAG COVER MOUNT для Polaris RANGER CREW XP 1000 EPS NORTHSTAR EDITION SUNSET RED METALLIC (R18RVU99AS) - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    3023274 ASM, COVER-HVAC MOUNT (INCL. 2-4)
    ASM, COVER-HVAC MOUNT (INCL. 2-4)
  • 2
    3514717 BEARING-BALL, 9X24X7
    BEARING-BALL, 9X24X7
  • 3
    5140080 WASHER, COVER
    WASHER, COVER
  • 4
    7710654 RING-SNAP, DIN472, 24X1.2MM
    RING-SNAP, DIN472, 24X1.2MM
  • 5
    3022843 ADAPTER HUB (INCL. 6)
    ADAPTER HUB (INCL. 6)
  • 7
    2411719 SENSOR-CRANK POSITION
    SENSOR-CRANK POSITION
  • 8
    3610176 SEAL-FLANGE, LUBE VITON
    SEAL-FLANGE, LUBE VITON
  • 9
    5140410 PULLEY-6 RIB, 72.0MM DRIVE
    PULLEY-6 RIB, 72.0MM DRIVE
  • 10
    5415584 O-RING, -123
    O-RING, -123
  • 11
    5814160 GAKSET-COVER, MAG
    GAKSET-COVER, MAG
  • 12
    7518576 SCR-HXFL-M6X1.0X20 8.8 ZY3
    SCR-HXFL-M6X1.0X20 8.8 ZY3
  • 13
    7518861 SCR-M6X20MM, HXSOC FHCS
    SCR-M6X20MM, HXSOC FHCS
  • 14
    7519297 SCR-HXFLG, M6X1.0X25, 10.9
    SCR-HXFLG, M6X1.0X25, 10.9
  • 15
    7520605 BOLT-HXFLG M12X1.25X90, 12.9
    BOLT-HXFLG M12X1.25X90, 12.9
  • 16
    7556915 WASHER-FRICTION, 28.0MM
    WASHER-FRICTION, 28.0MM
  • 17
    5139961 TIMING WHEEL
    TIMING WHEEL
