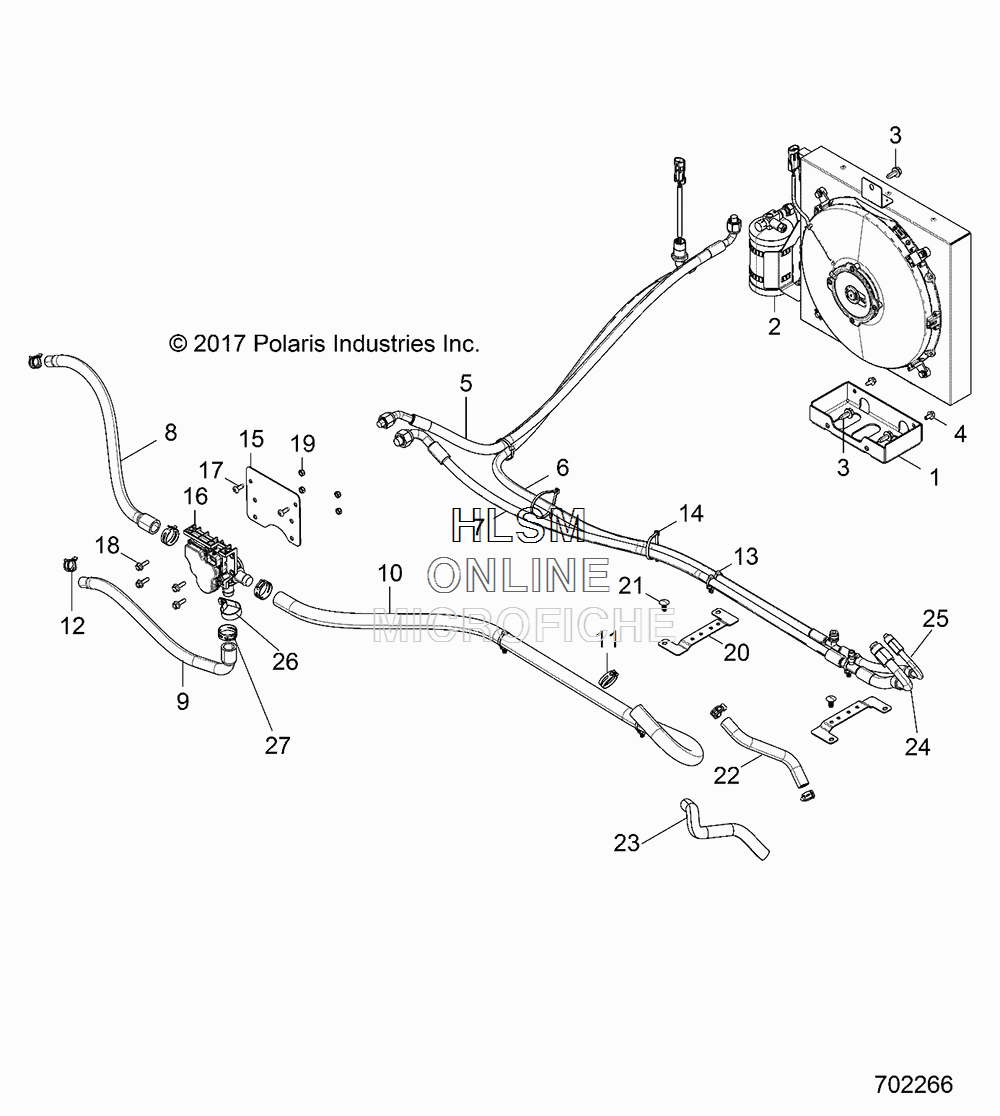

HVAC ROUTINGS для Polaris RANGER CREW XP 1000 EPS NORTHSTAR EDITION SUNSET RED METALLIC (R18RVU99AS) - 2018 года выпуска
-
№АртикулНазвание
-
13120179 MNT-CONDENSERMNT-CONDENSER
-
22413722 CONDENSOR-A/C, RGRCONDENSOR-A/C, RGR
-
37518555 BOLT-M8X1.25X20, HXFLGBOLT-M8X1.25X20, HXFLG
-
47519145 SCR-HXFL-M6X1.0X12 8.8 ZOD P30SCR-HXFL-M6X1.0X12 8.8 ZOD P30
-
55415913 HOSE-AC, RGRHOSE-AC, RGR
-
65416180 HOSE-AC, RGR, CREWHOSE-AC, RGR, CREW
-
75416179 HOSE-AC, RGR, CREWHOSE-AC, RGR, CREW
-
85415933 HOSE-COOLANT, ENG OIL-OUTHOSE-COOLANT, ENG OIL-OUT
-
95415934 HOSE-COOLANT, 3WAY-ENGHOSE-COOLANT, 3WAY-ENG
-
105416018 HOSE-COOLANT, 3WAY-HEATERHOSE-COOLANT, 3WAY-HEATER
-
117080842 SPRINGBAND-CLAMP 29/12, BLACKSPRINGBAND-CLAMP 29/12, BLACK
-
127081719 CLAMP-HOSE, SPRING, 20MMCLAMP-HOSE, SPRING, 20MM
-
137081496 CLIP-ROUTINGCLIP-ROUTING
-
147080492 STRAP-PANDUIT, 160X7.6STRAP-PANDUIT, 160X7.6
-
155263112-329 BRKT-MNT, 3WAY, VALVE, BLACKBRKT-MNT, 3WAY, VALVE, BLACK
-
162413634 ASM-VALVE, 3-WAYASM-VALVE, 3-WAY
-
177519045 SCR-TX TRUSS-#14X3/4, HI/LO ZBKSCR-TX TRUSS-#14X3/4, HI/LO ZBK
-
187519121 SCR-HXFL-M6X1.0X20 8.8 RIESCR-HXFL-M6X1.0X20 8.8 RIE
-
197546703 NUT-6MM X 1 NYLOK-ZNUT-6MM X 1 NYLOK-Z
-
205263099 BRKT-SUPPORT, HOSEBRKT-SUPPORT, HOSE
-
217670090 CLIP-PLASTIC, DART, NYLONCLIP-PLASTIC, DART, NYLON
-
225415938 HOSE-COOLANT, HEATER-RETURNHOSE-COOLANT, HEATER-RETURN
-
233121053 HOSE-HEATERHOSE-HEATER
-
243121057 ASM-TUBELINE, ACASM-TUBELINE, AC
-
253121058 ASM-TUBELINE, ACASM-TUBELINE, AC
-
267080851 CLAMP-HOSE, 1.312 VINYL COATEDCLAMP-HOSE, 1.312 VINYL COATED
-
277080841 SPRINGBAND-CLAMP 27/12, GREENSPRINGBAND-CLAMP 27/12, GREEN
