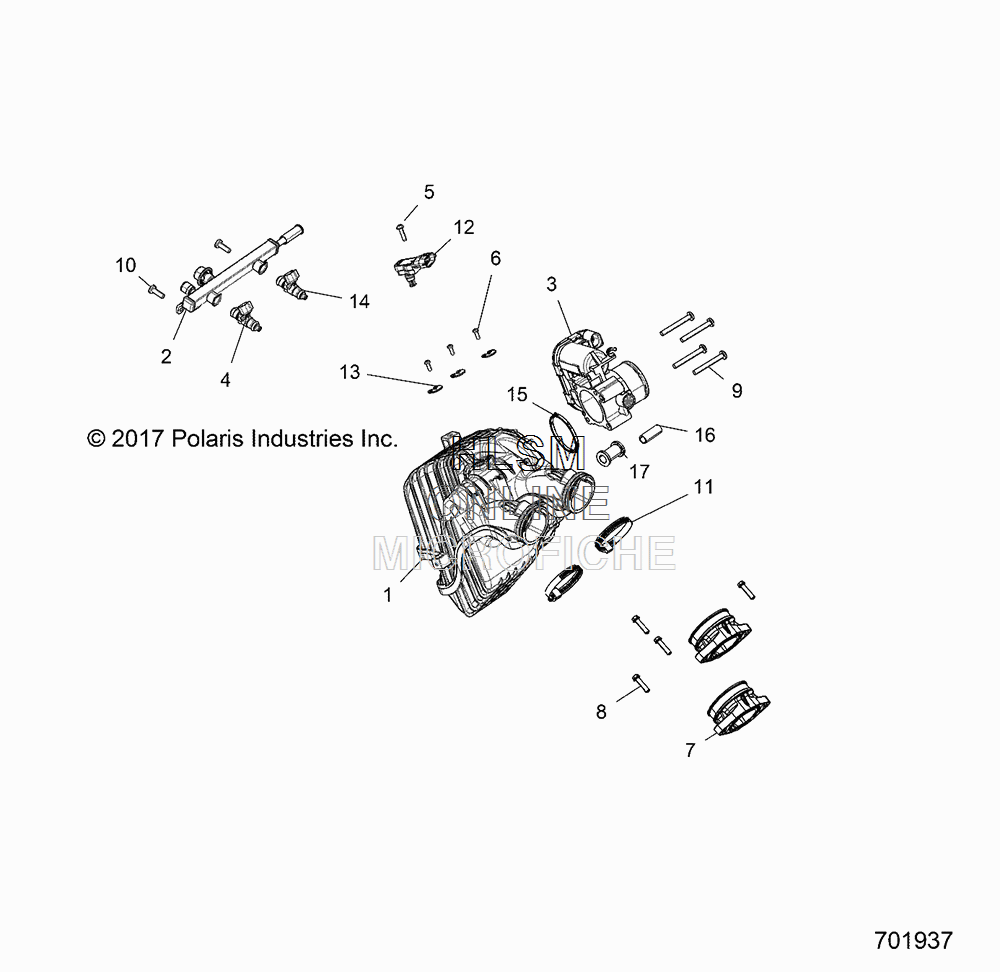

THROTTLE BODY для Polaris RANGER CREW XP 1000 EPS NORTHSTAR EDITION SUNSET RED METALLIC (R18RVU99AS) - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    1205773 MANIFOLD-INTAKE, COMPOSITE
    MANIFOLD-INTAKE, COMPOSITE
  • 2
    1204454 RAIL, FUEL
    RAIL, FUEL
  • 3
    1204455 THROTTLE, 46MM
    THROTTLE, 46MM
  • 4
    2521068 INJECTOR, FUEL
    INJECTOR, FUEL
  • 5
    7519952 SCREW
    SCREW
  • 6
    7519933 SCREW
    SCREW
  • 7
    1205301 ADAPTER, THROTTLE BODY
    ADAPTER, THROTTLE BODY
  • 8
    7519297 SCREW
    SCREW
  • 9
    7518377 SCREW
    SCREW
  • 10
    7519290 SCREW
    SCREW
  • 11
    7080413 CLAMP, NARROW BAND
    CLAMP, NARROW BAND
  • 12
    2411528 SENSOR, TMAP
    SENSOR, TMAP
  • 13
    5258229 CLIP, INTAKE ROUTING
    CLIP, INTAKE ROUTING
  • 14
    1500198 O-RING-BOSCH, EV-14, UPPER
    O-RING-BOSCH, EV-14, UPPER
  • 15
    5138678 LIMITER-COMPRESSION, AF.0113666
    LIMITER-COMPRESSION, AF.0113666
  • 16
    5813964 GASKET-ETC, EN.0113664
    GASKET-ETC, EN.0113664
  • 17
    5813965 GROMMET-LX.0113665
    GROMMET-LX.0113665
