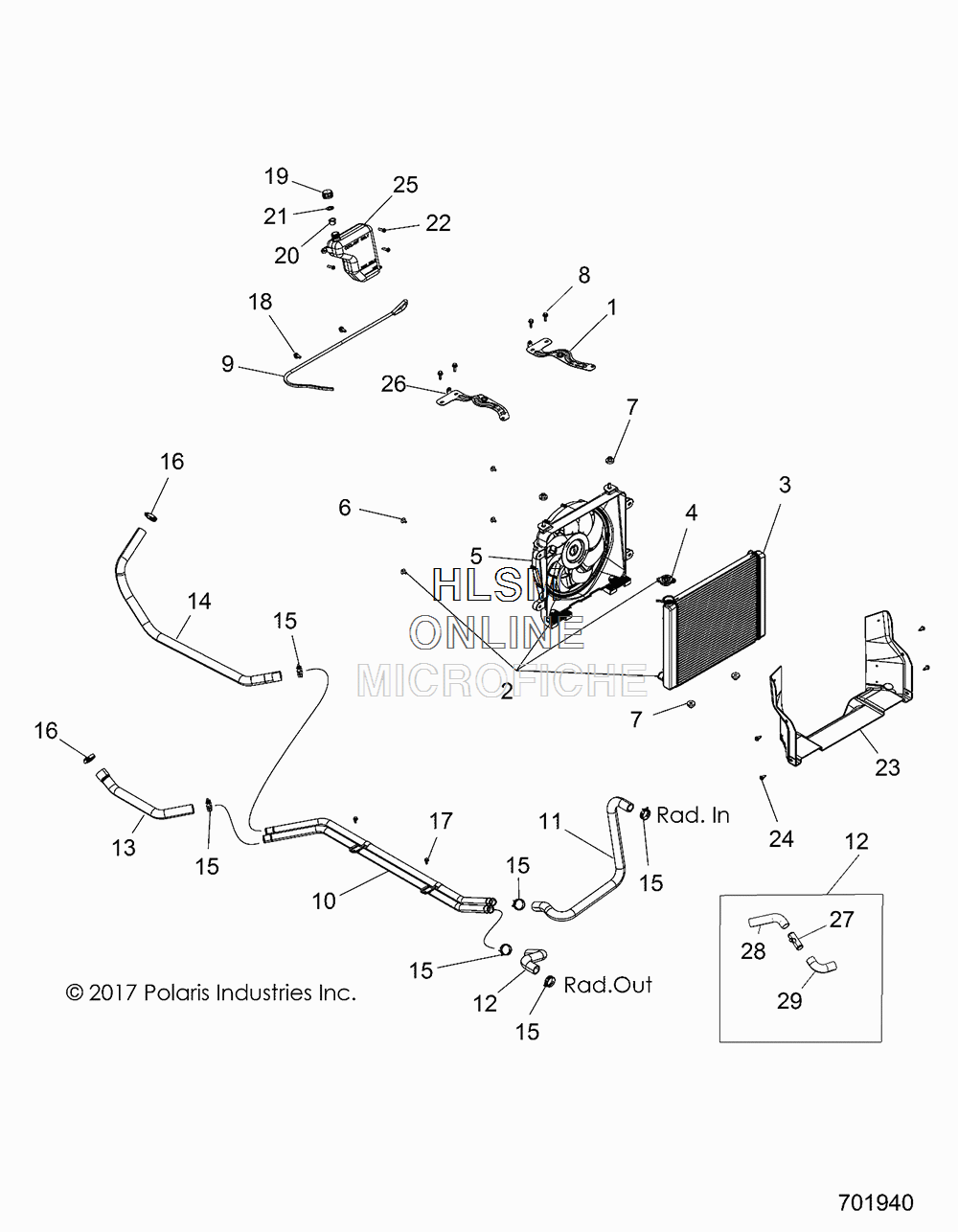

COOLING SYSTEM для Polaris RANGER CREW XP 1000 EPS NORTHSTAR EDITION SUNSET RED METALLIC (R18RVU99AS) - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    5256596-329 MOUNT, RADIATOR, LEFT HAND, BLACK
    MOUNT, RADIATOR, LEFT HAND, BLACK
  • 2
    1240663 ASM., RADIATOR (INCL. 2-6)
    ASM., RADIATOR (INCL. 2-6)
  • 3
    1240664 ASM., RADIATOR, CORE
    ASM., RADIATOR, CORE
  • 4
    1240694 CAP
    CAP
  • 5
    2411816 FAN ASSEMBLY
    FAN ASSEMBLY
  • 6
    7519585 BOLT
    BOLT
  • 7
    7052028 GROMMET, FLANGED
    GROMMET, FLANGED
  • 8
    7518529 SCREW
    SCREW
  • 9
    8450003-1525 LINE, FUEL, 1/4 ID(1525 CM.)
    LINE, FUEL, 1/4 ID(1525 CM.)
  • 10
    5141638 TUBE-COOLANT, CREW, 1 IN
    TUBE-COOLANT, CREW, 1 IN
  • 11
    5414289 HOSE, UPPER, RADIATOR
    HOSE, UPPER, RADIATOR
  • 13
    5414291 HOSE, ENGINE, IN
    HOSE, ENGINE, IN
  • 14
    5414292 HOSE, ENGINE, OUT
    HOSE, ENGINE, OUT
  • 15
    7080844 CLAMP, SPRINGBAND
    CLAMP, SPRINGBAND
  • 16
    7081192 CLAMP, HOSE, 25-40MM
    CLAMP, HOSE, 25-40MM
  • 17
    7518529 SCREW
    SCREW
  • 18
    7670102 CLIP, SILENCER BOX
    CLIP, SILENCER BOX
  • 19
    5430743 CAP, OVER FLOW BOTTLE, DRILLED
    CAP, OVER FLOW BOTTLE, DRILLED
  • 20
    5433774 PLUG, CAP
    PLUG, CAP
  • 21
    5810279 GASKET, OVERFLOW CAP
    GASKET, OVERFLOW CAP
  • 22
    7518158 SCREW
    SCREW
  • 23
    5454760-070 SHROUD-RADIATOR, FRONT, BLACK
    SHROUD-RADIATOR, FRONT, BLACK
  • 24
    7661855 RIVET
    RIVET
  • 25
    5439202 TANK, SURGE
    TANK, SURGE
  • 26
    5256597-329 MOUNT, RADIATOR, RIGHT HAND, BLACK
    MOUNT, RADIATOR, RIGHT HAND, BLACK
  • 27
    7052530 CONNECTOR-TEE, 1X1X0.5
    CONNECTOR-TEE, 1X1X0.5
  • 28
    5415936 HOSE-COOLANT, RETURN
    HOSE-COOLANT, RETURN
  • 29
    5415937 HOSE-COOLANT, RETURN
    HOSE-COOLANT, RETURN
