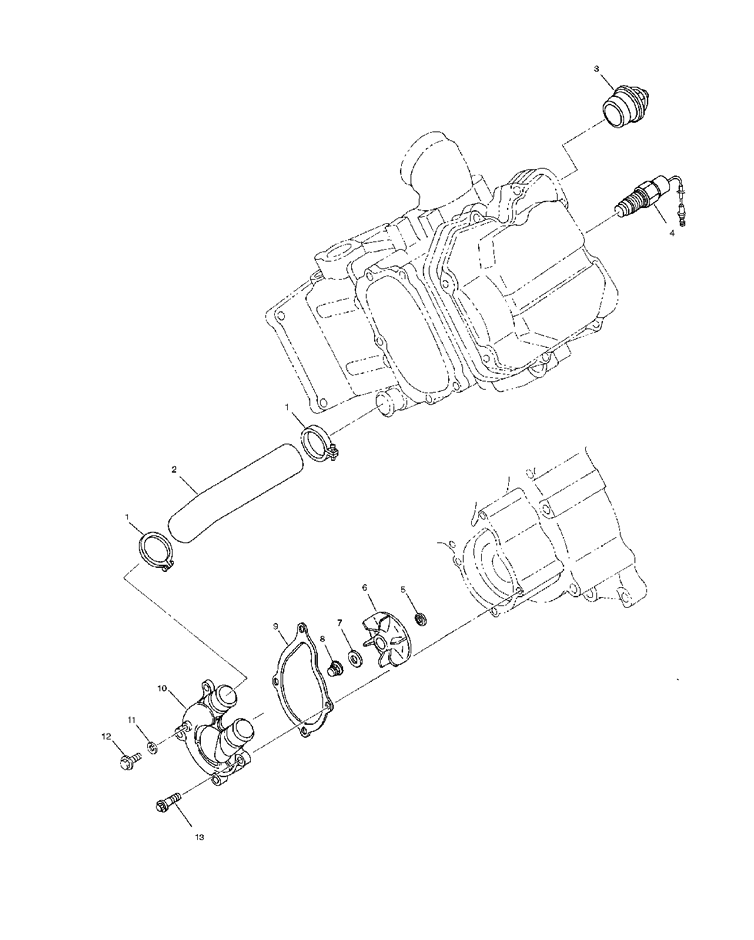

WATER PUMP для Polaris RANGER 2X4 SERIES 10 [A10RB42AA] - 2003 года выпуска`
-
№АртикулНазвание
-
13084191 CLAMP-HOSECLAMP-HOSE
-
23085857 HOSE,MAINHOSE,MAIN
-
33084940 THERMOSTATTHERMOSTAT
-
43085352 SWITCH,THERMO. (110 DEGREE)SWITCH,THERMO. (110 DEGREE)
-
53084942 WASHER,SEALWASHER,SEAL
-
63084935 IMPELLERIMPELLER
-
73083138 WASHER,FLATWASHER,FLAT
-
83085077 NUT,SELF-LOCKNUT,SELF-LOCK
-
93086840 GASKET,WATER-PUMPGASKET,WATER-PUMP
-
103085351 COVER,WATER PUMPCOVER,WATER PUMP
-
113082758 WASHER,FLATWASHER,FLAT
-
123085359 BOLT,FLANGEBOLT,FLANGE
-
133084877 BOLT,FLANGEBOLT,FLANGE
