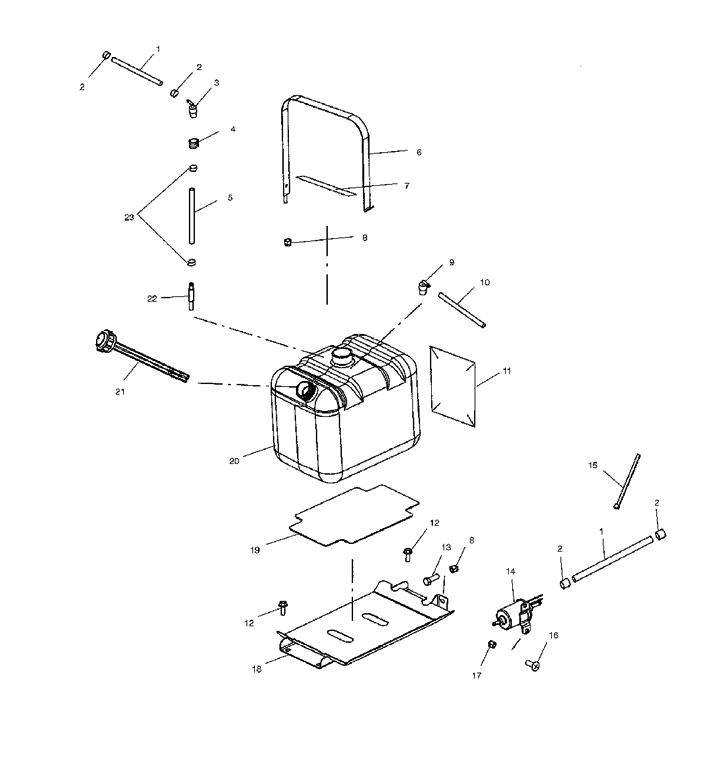

FUEL TANK для Polaris RANGER 2X4 SERIES 10 [A10RB42AA] - 2003 года выпуска
-
№АртикулНазвание
-
18450040-150 HOSEHOSE
-
27080003 CLAMP,HOSECLAMP,HOSE
-
37052259 FITTING,1/4'' 90° DEXFITTING,1/4'' 90° DEX
-
47052362 GROMMET-FLANGED,.36X.56X1.06GROMMET-FLANGED,.36X.56X1.06
-
58350019-41 HOSEHOSE
-
61013471-067 TANK STRAP, BLACK.TANK STRAP, BLACK.
-
75812231 PAD-FUEL TANK,TOPPAD-FUEL TANK,TOP
-
87542324 NUT,NYLOKNUT,NYLOK
-
97052095 FITTING,90 DEG,1/8FITTING,90 DEG,1/8
-
108360009-50 HOSEHOSE
-
115812252 FOIL-TANKFOIL-TANK
-
127512399 SCREWSCREW
-
137515398 SCREWSCREW
-
144010658 PUMP-FUEL,12V,PRSS RELIEF,1-4PPUMP-FUEL,12V,PRSS RELIEF,1-4P
-
144010658 PUMP-FUEL,12V,PRSS RELIEF,1-4PPUMP-FUEL,12V,PRSS RELIEF,1-4P
-
157080138 CABLE TIECABLE TIE
-
167517685 SCREWSCREW
-
177542122 NUT-NYLOKNUT-NYLOK
-
181013487-067 BRKT-FUEL TANK MNT, BLACKBRKT-FUEL TANK MNT, BLACK
-
195812230 PAD-FUEL TANK,BOTTOMPAD-FUEL TANK,BOTTOM
-
205433861 ASM,TANK-FUEL,RANGERASM,TANK-FUEL,RANGER
-
211240119 CAP-GAS W/GAUGECAP-GAS W/GAUGE
-
227052301 PICK-UP-FUEL,W/FILTER,105MICRNPICK-UP-FUEL,W/FILTER,105MICRN
-
237080402 RING, COMPRESSIONRING, COMPRESSION
